Glow Plug: Removal

  1. Disconnect the negative battery cable.
  2. Use special tool #9286 pliers to unplug the glow plug wiring harness connector(s).
  3. Remove the glow plug(s) (Fig 1 ).

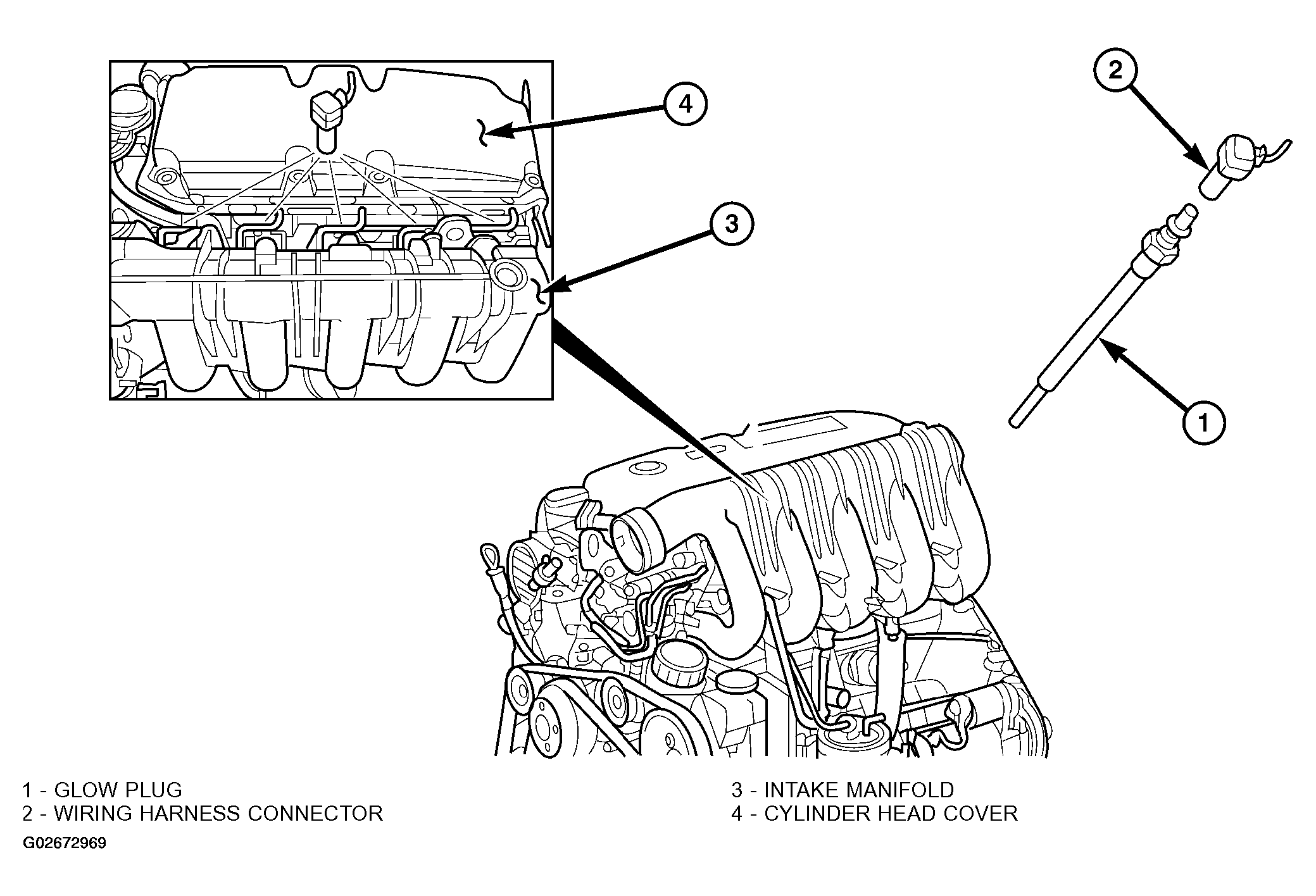

Fig 1: Identifying Glow Plug(s)
G02672969Courtesy of DAIMLERCHRYSLER CORP.
