Fuel Temperature Sensor: Installation
- Clean sealing surfaces.

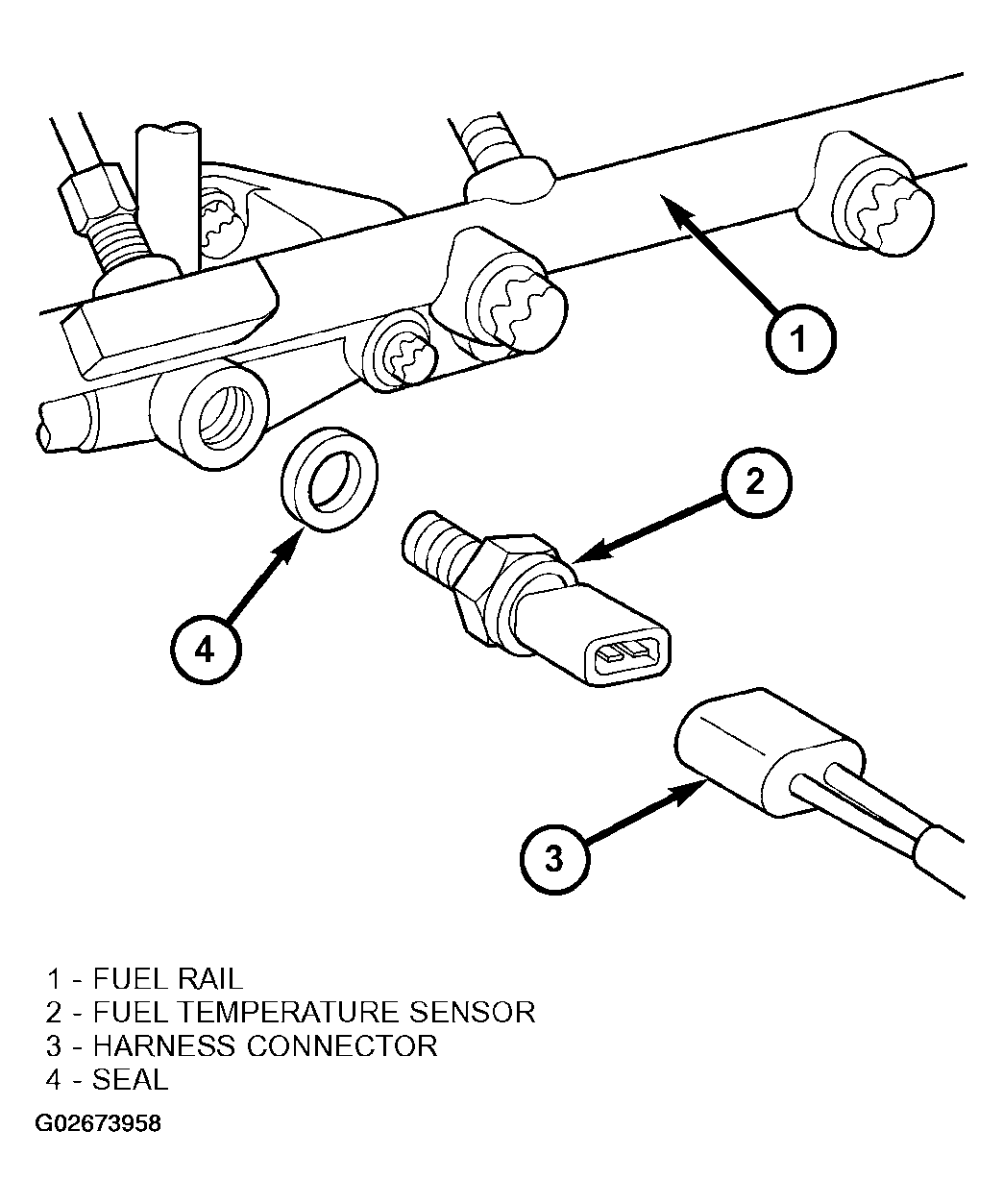

- Install new seal on sensor (Figure
).
- Screw the sensor into the fuel rail and tighten to 18 lbs. ft. (25 N.m) (Refer to
FUEL SYSTEM/FUEL INJECTION - WARNING
). (Figure
)
- Connect negative battery cable.
