Boost Pressure Sensor: Installation
- Inspect boost pressure sensor O-ring for cuts or abrasions, replace as necessary.

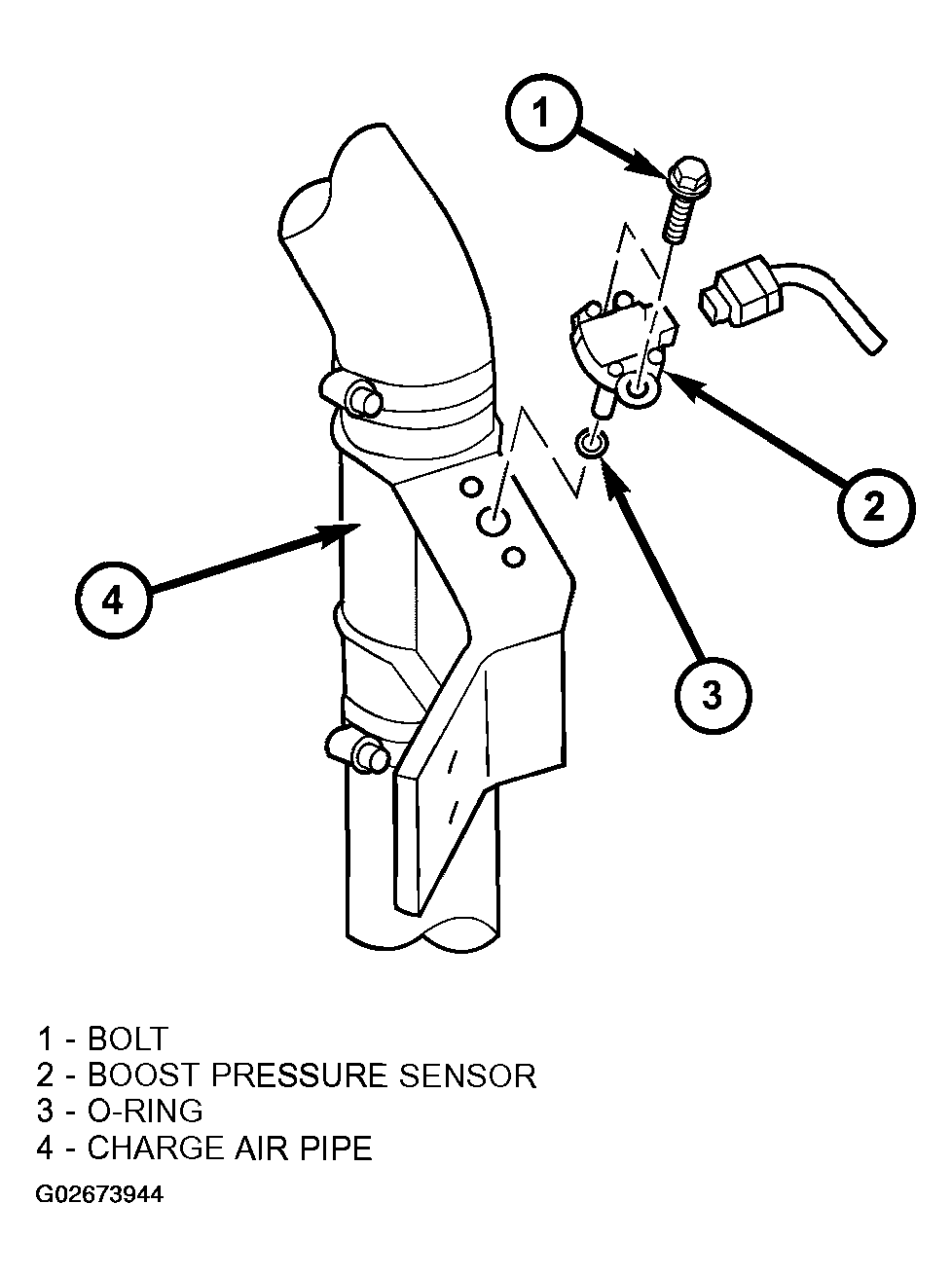

- Position the boost pressure sensor above access hole in the charge air pipe and push down to fit flush (Figure ).
- Install the bolts and tighten to 44 lbs. in. (5 N.m) (Figure ).
- Reconnect the sensor electrical connector (Figure ).
- Connect negative battery cable
