Boost Pressure Sensor: Description

The boost pressure sensor is mounted to the charge air pipe (Fig 1 ). The sensor allows the ECM to monitor intake air down stream of the turbocharger.

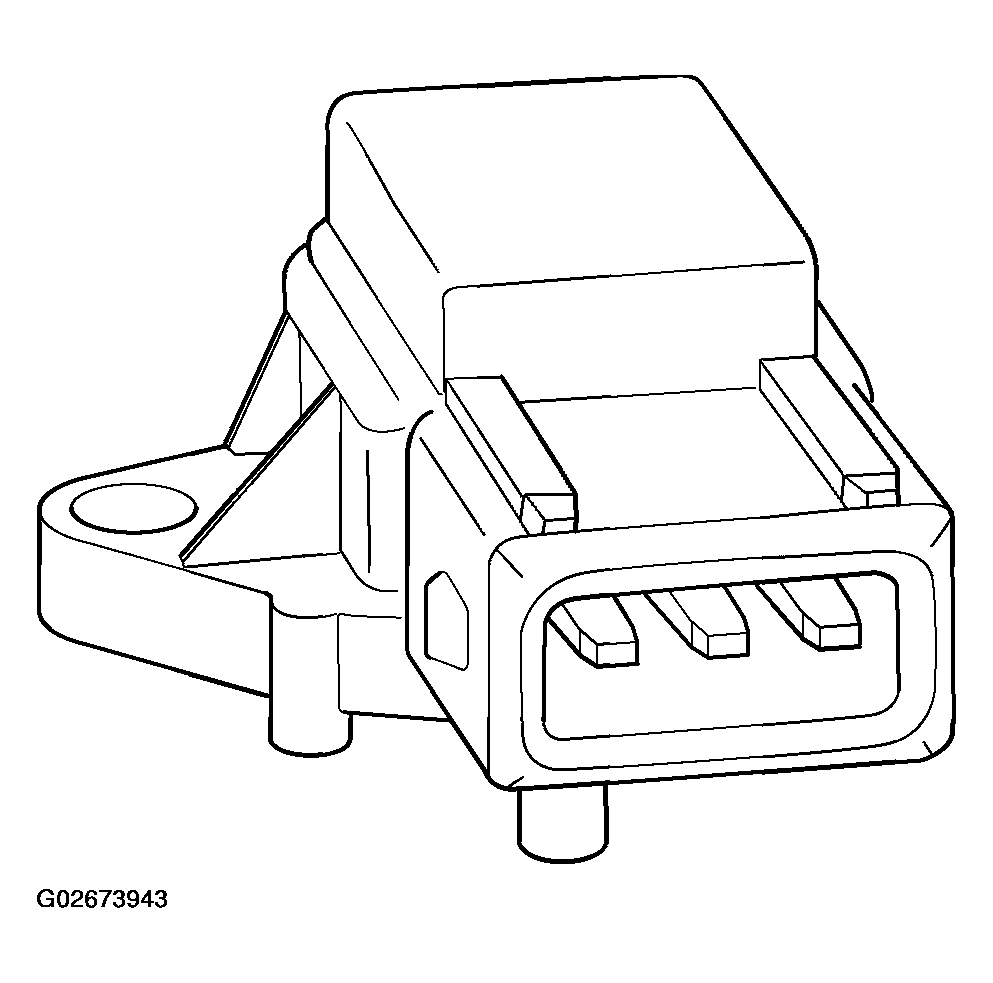

Fig 1: Identifying Boost Pressure Sensor

Courtesy of DAIMLERCHRYSLER CORP.
