Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circulation Pump Diode In engine compartment.
Fuse Block No. 1 Under steering column. See Figure .

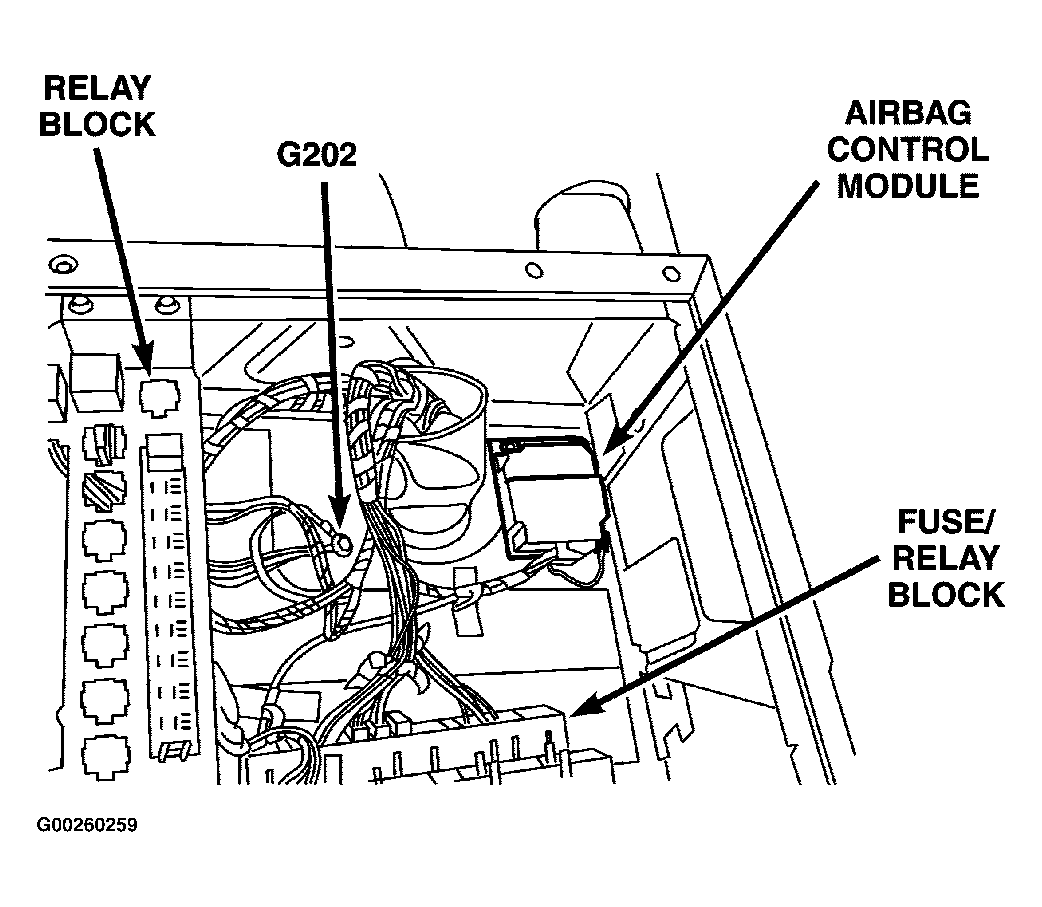

Fuse Block No. 2 Under driver's seat. See Figure .
Fuse/Relay Block Under driver's seat. See Figure .
Power Distribution Center Left side of engine compartment. See Figure .
Relay Block Under driver's seat. See Figure .
