Generator DECOUPLER Pulley: Removal: Notes

The generator decoupler is used only with certain engines.

Two different type generator decoupler pulleys are used. One can be identified by the use of machined splines (Fig 1 ). The other can be identified by a hex opening (Fig 2 ) and will not use splines.

Different special tools are required to service each different decoupler. Refer to following procedure.

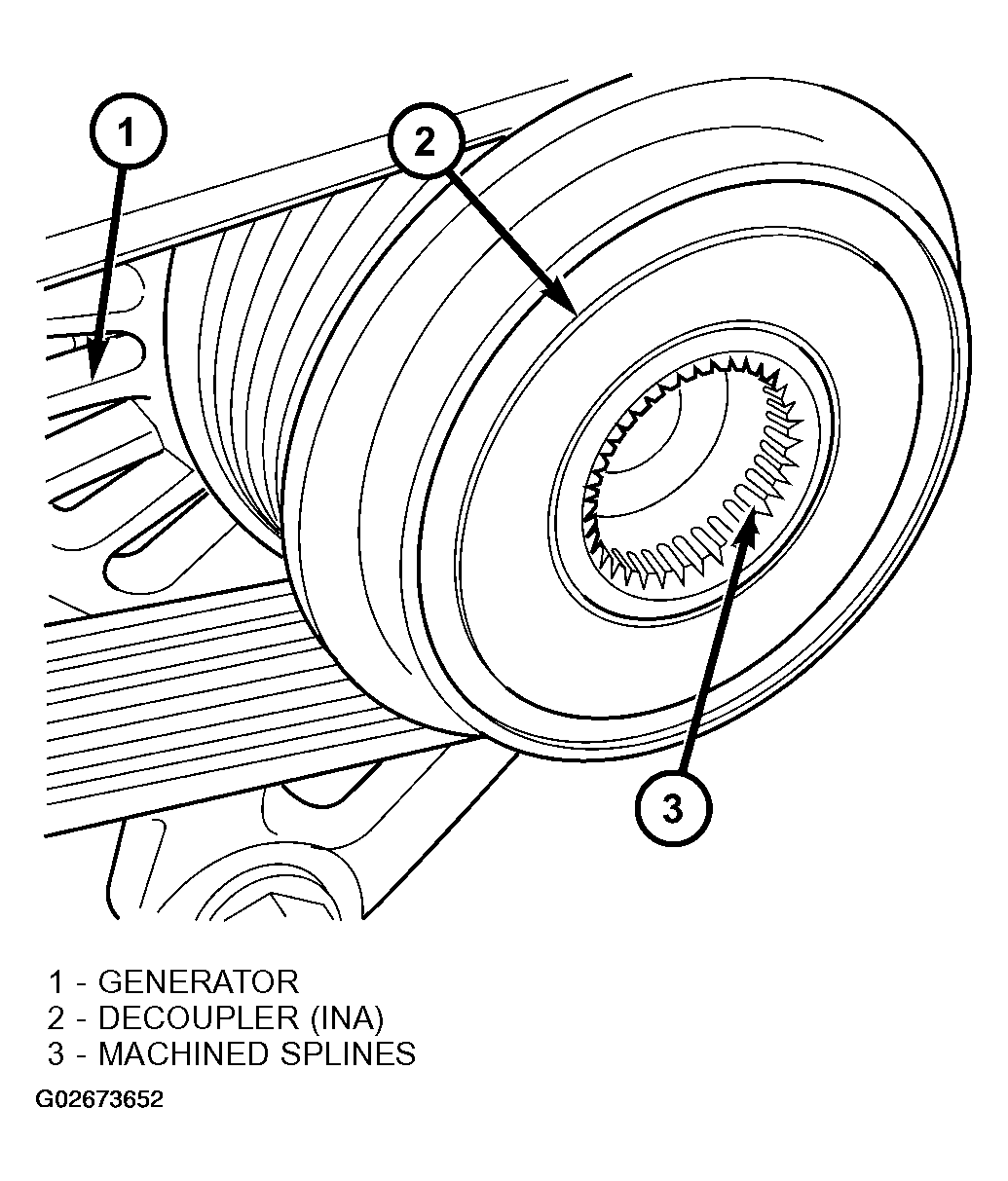

Fig 1: Locating Machined Splines Of Generator Decoupler Pulley (INA)

Courtesy of DAIMLERCHRYSLER CORP.

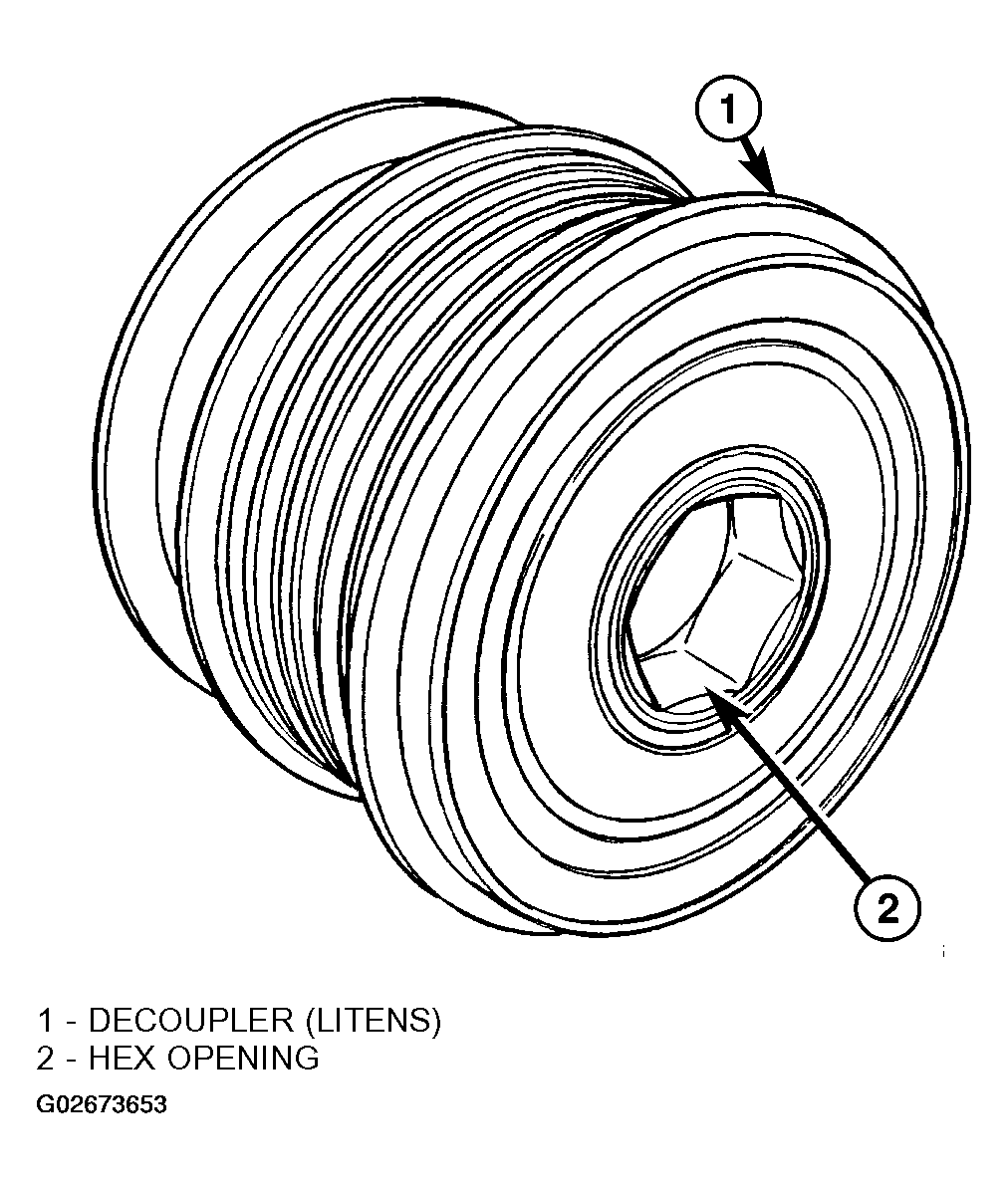

Fig 2: Locating Hex Opening Of Generator Decoupler Pulley (LITENS)

Courtesy of DAIMLERCHRYSLER CORP.
