Vehicle Theft Security System

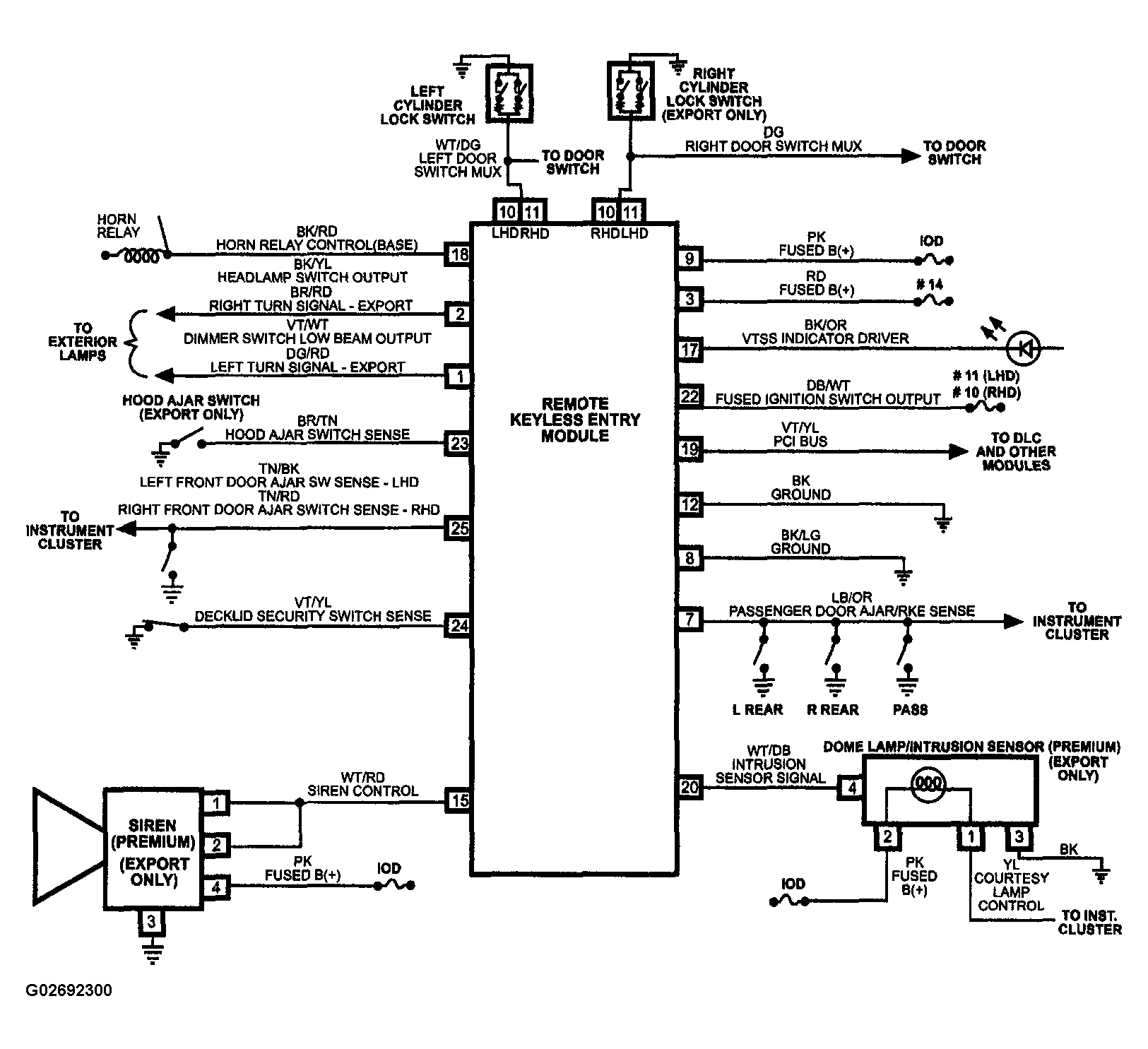

Fig 1: Vehicle Theft Security System Schematic Diagram

G02692300

Courtesy of DAIMLERCHRYSLER CORP.
