T850 Manual Transaxle: Description: Notes

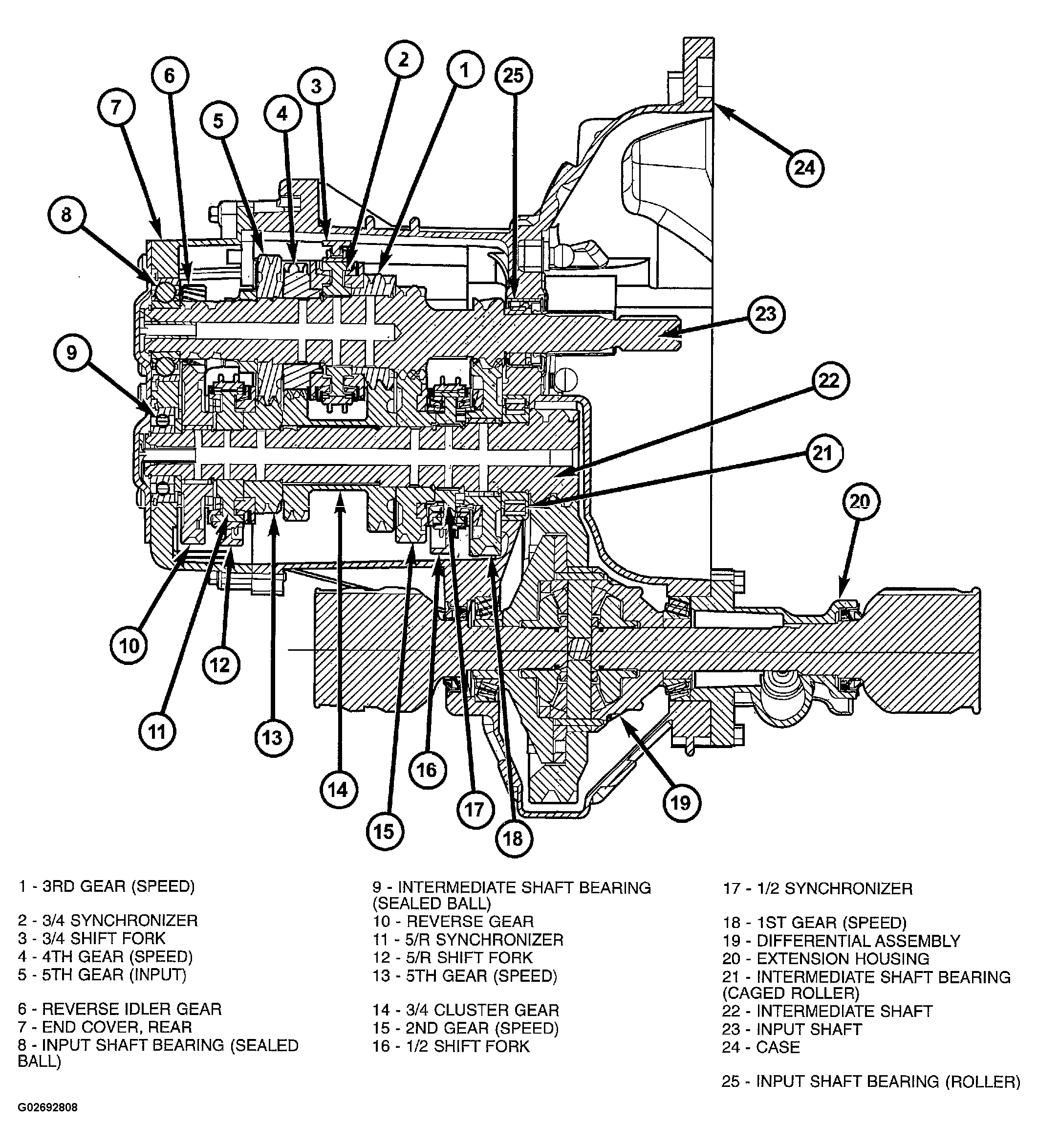

The NV T850 5-speed transaxle (Fig 1 ) is a constant-mesh manual transaxle that is synchronized in all gear ranges, including reverse.
The transaxle consists of three major sub-assemblies: the input shaft, intermediate shaft, and differential assembly. The transaxle shift system consists of a mechanical shift cover, rails, forks, and cables. The unique design of this shift system provides a higher mechanical advantage, resulting in less friction and lower shift cable loads for smoother, more positive operation.
The NV T850 transaxle is available with the 2.4L Turbocharged Engine option. Its gear ratios are as follows:
GEAR RATIO
| GEAR | RATIO |
|---|---|
| 1st | 3.65 |
| 2nd | 2.05 |
| 3rd | 1.37 |
| 4th | 0.97 |
| 5th | 0.76 |
| Reverse | 3.47 |
| Final Drive Ratio | 3.53 |
