Back-Up Lamp Switch: Installation

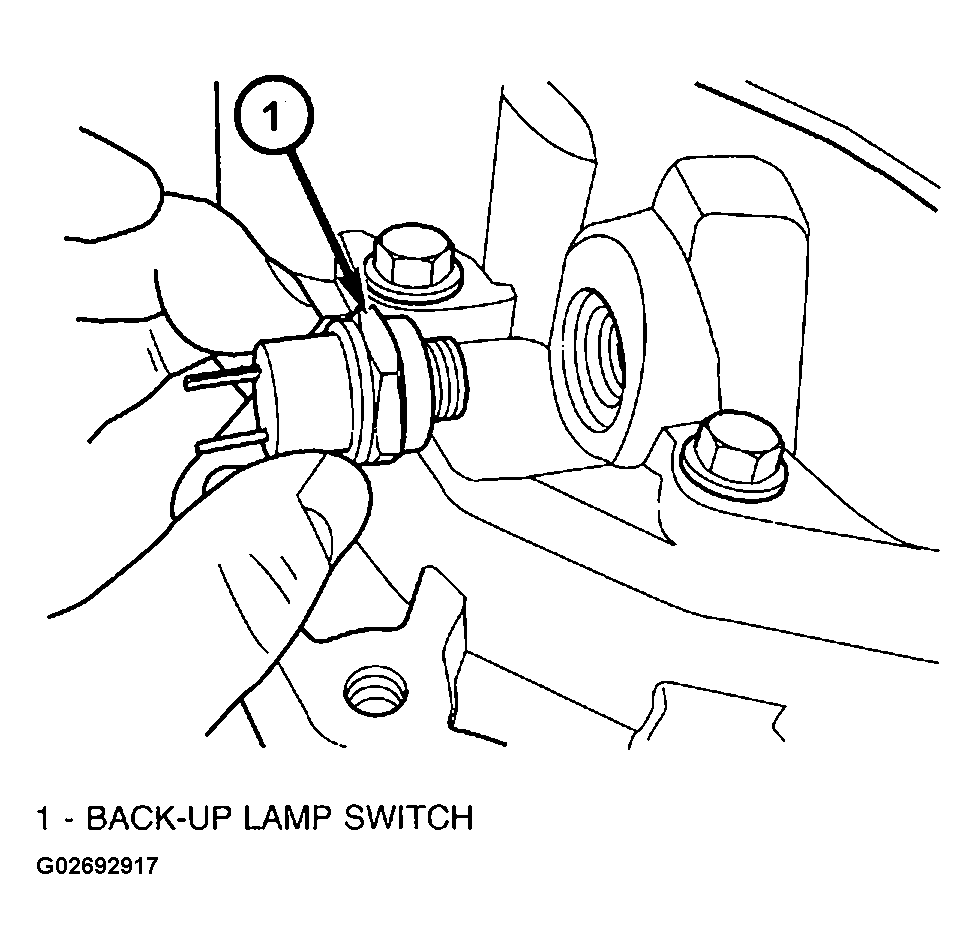

  1. Install back-up lamp switch (Figure ) and torque to 23 N.m (17 ft. lbs.).
  2. Connect back-up lamp switch connector.
  3. Lower vehicle.
