Ignition Switch: Removal

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder (Fig 1). For ignition switch terminal and circuit identification, refer to the appropriate Wiring Diagram.

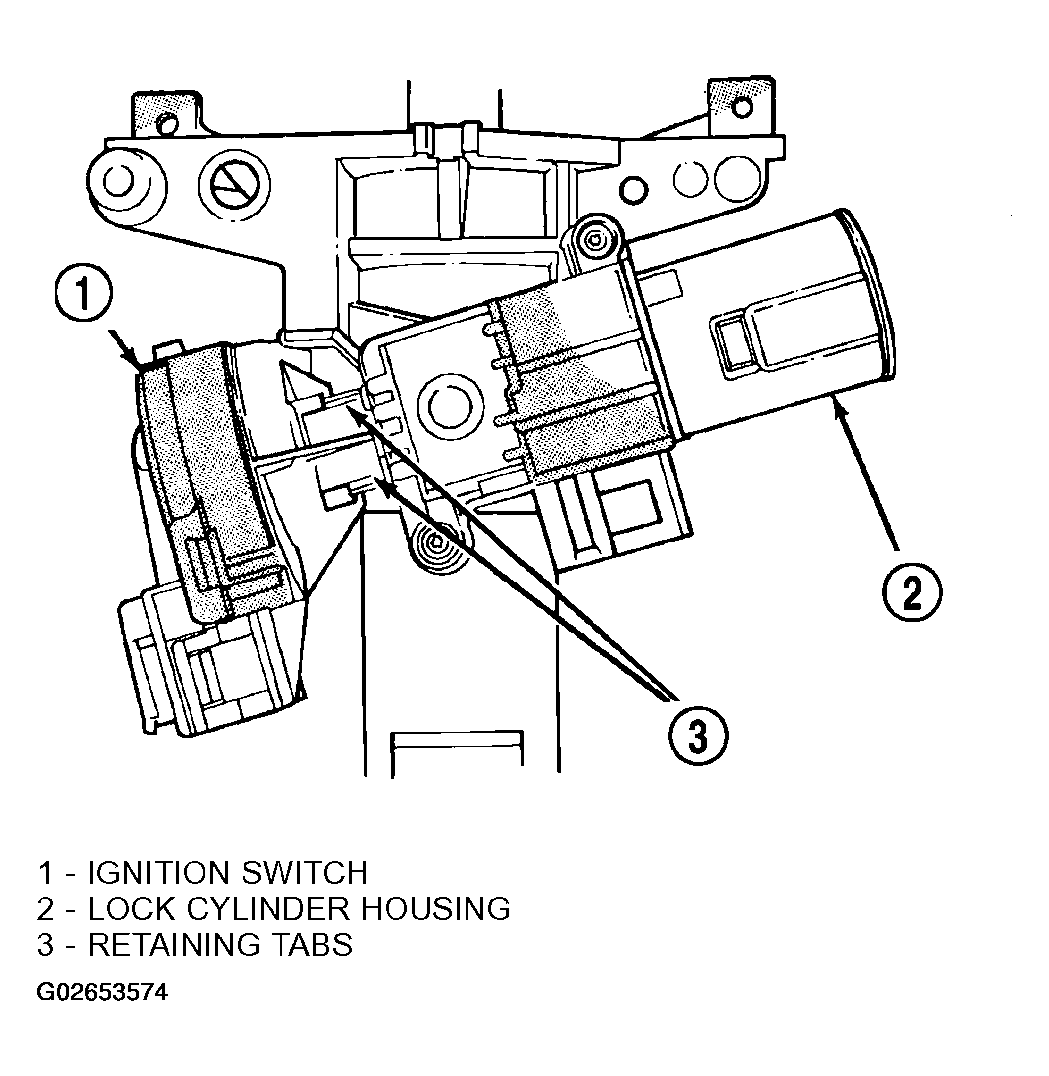

Fig 1: Locating Retaining Tabs

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect negative cable from battery.
2. Place key cylinder in RUN position. Through the hole in the lower shroud, depress lock cylinder retaining tab and remove key cylinder (Fig 2).

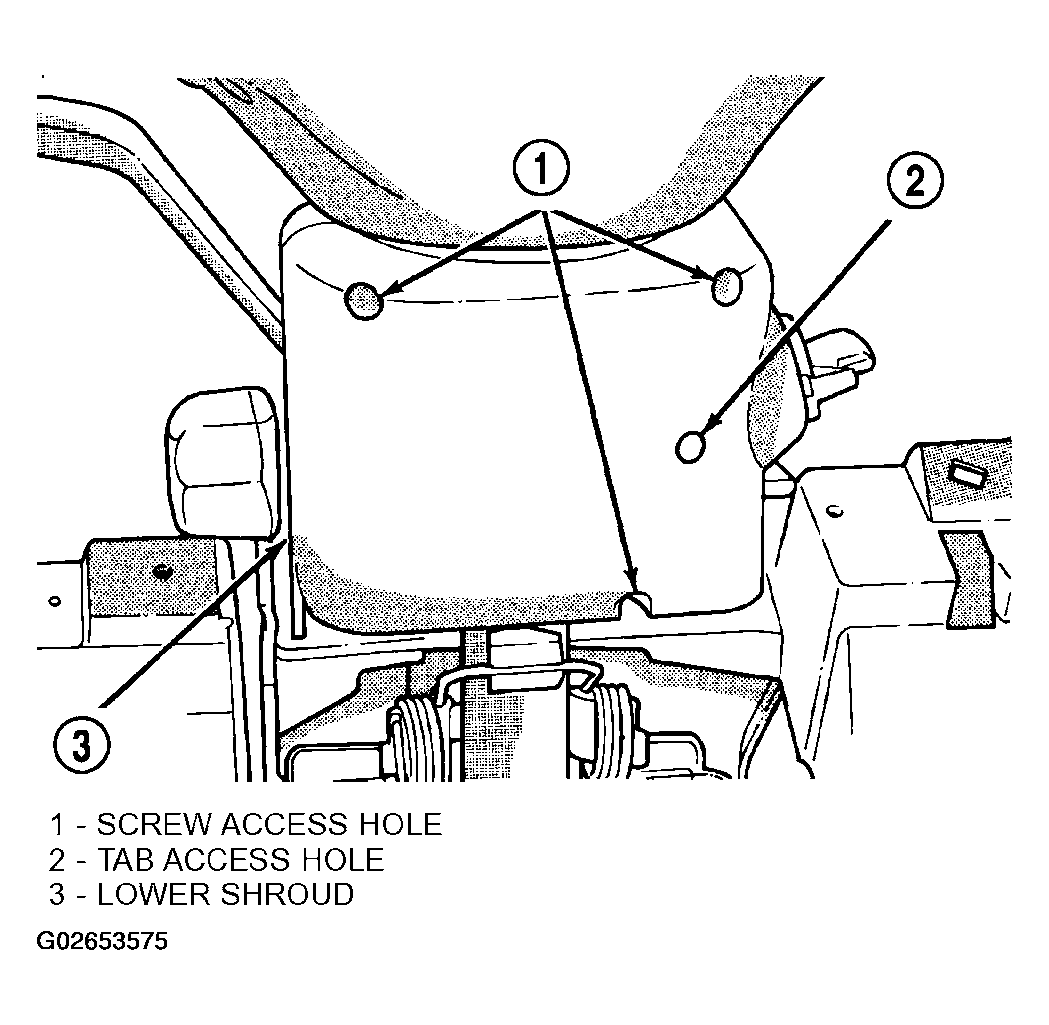

   Fig 2: Identifying Screw And Tab Access Hole

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove upper and lower shrouds from steering column.
4. Disconnect electrical connectors from ignition switch.
5. Remove ignition switch mounting screw (Fig 3) with a #10 Torx® bit.
   Fig 3: Locating Ignition Switch Mounting Screw

   Courtesy of DAIMLERCHRYSLER CORP.
6. Depress retaining tabs (Fig 4) and pull ignition switch from steering column.

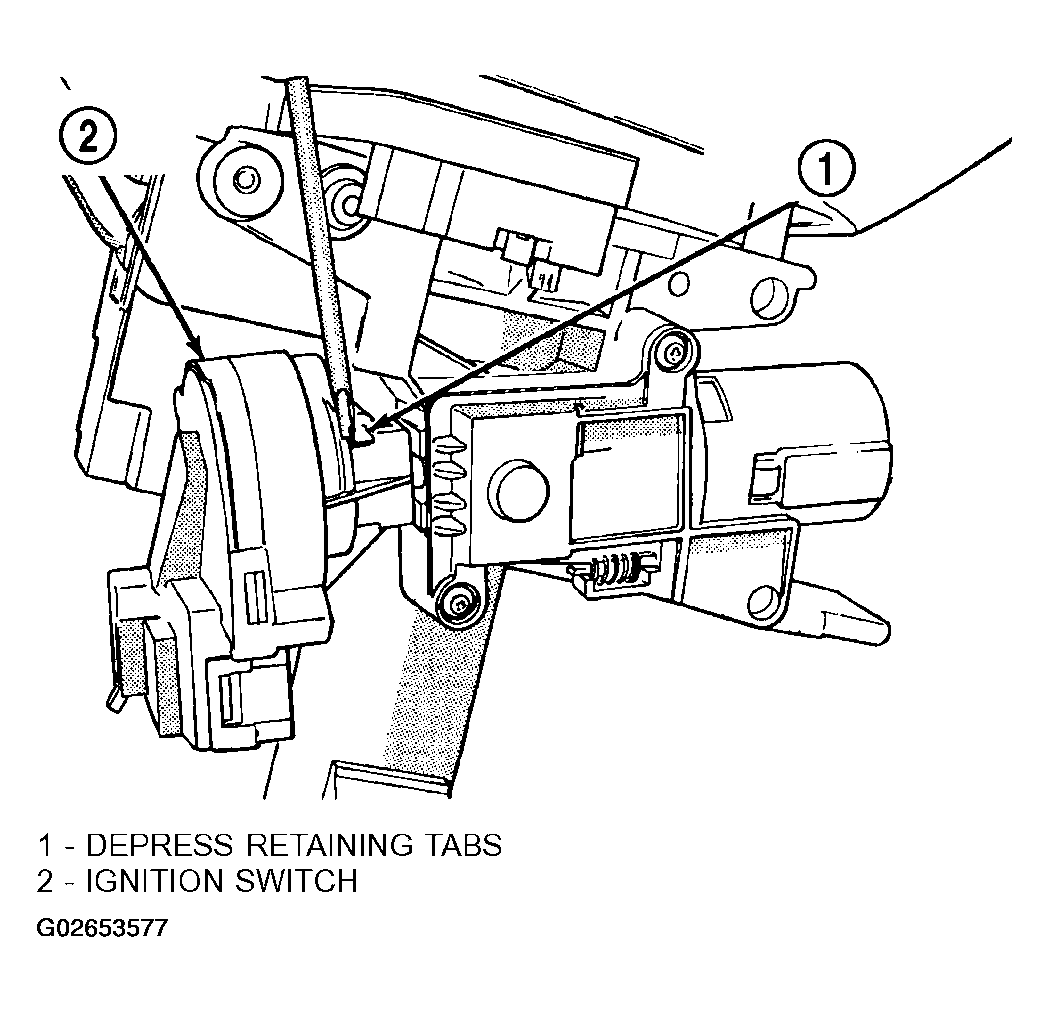

   Fig 4: Depressing Retaining Tabs

   Courtesy of DAIMLERCHRYSLER CORP.
