Right Lavalier Module (Export) Connector End View

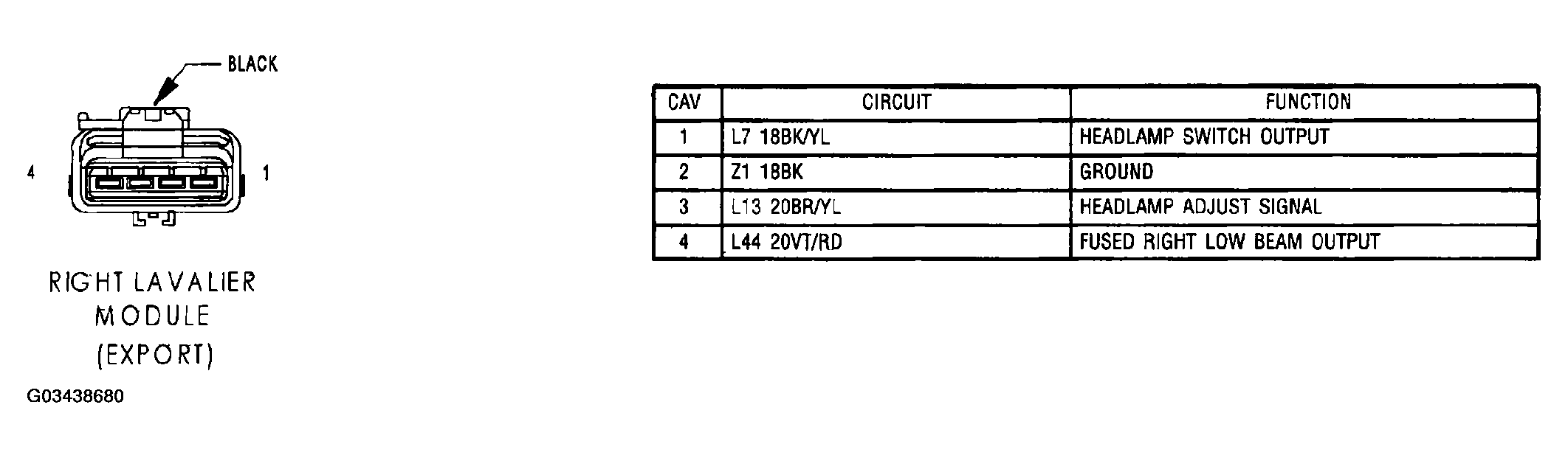

Fig 1: Right Lavalier Module (Export) Connector End View

G03438680

Courtesy of DAIMLERCHRYSLER CORP.
