Temperature Control Cables: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel center stack bezel-(Refer to INSTRUMENT PANEL ASSEMBLY ).
  3. Remove the center air duct from the instrument panel.
  4. Remove heater-A/C control (Refer to - HEATING & AIR CONDITIONING/CONTROLS/A/C HEATER CONTROL - REMOVAL  ).
  5. Reach through the instrument panel center air duct opening to access and remove the screw that secures the temperature control cable housing retainer to the top of the heater-A/C unit housing.
  6. Disconnect cable at control panel. Remove control from instrument panel.
  7. Disconnect the temperature control cable end from the blend-air door lever. (Fig 1 ).
  8. Remove the temperature control cable through the instrument panel heater-A/C control opening.

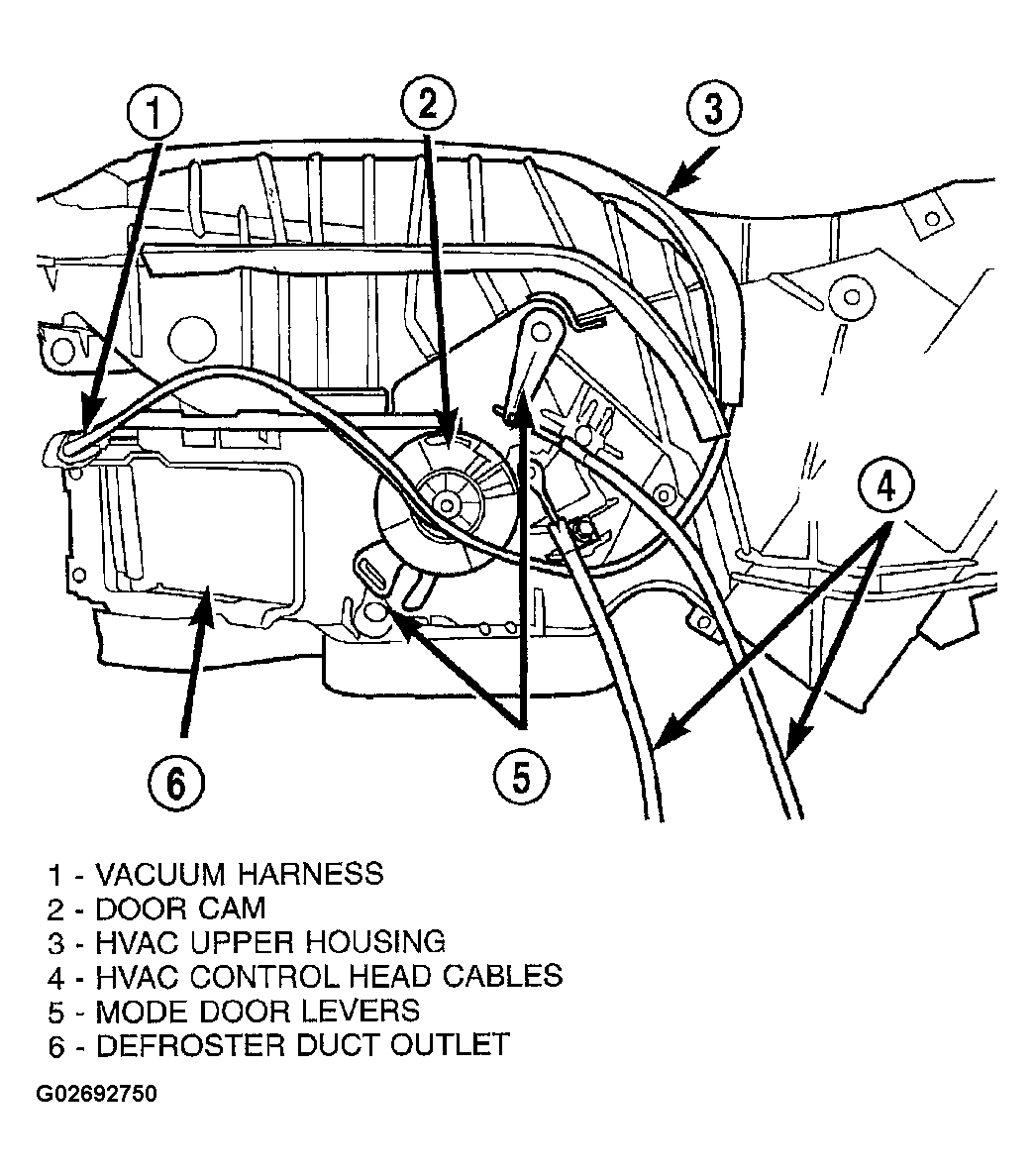

Fig 1: Disconnecting HVAC Housing Cables - (Typical)
G02692750Courtesy of DAIMLERCHRYSLER CORP.
