Crankshaft Position Sensor

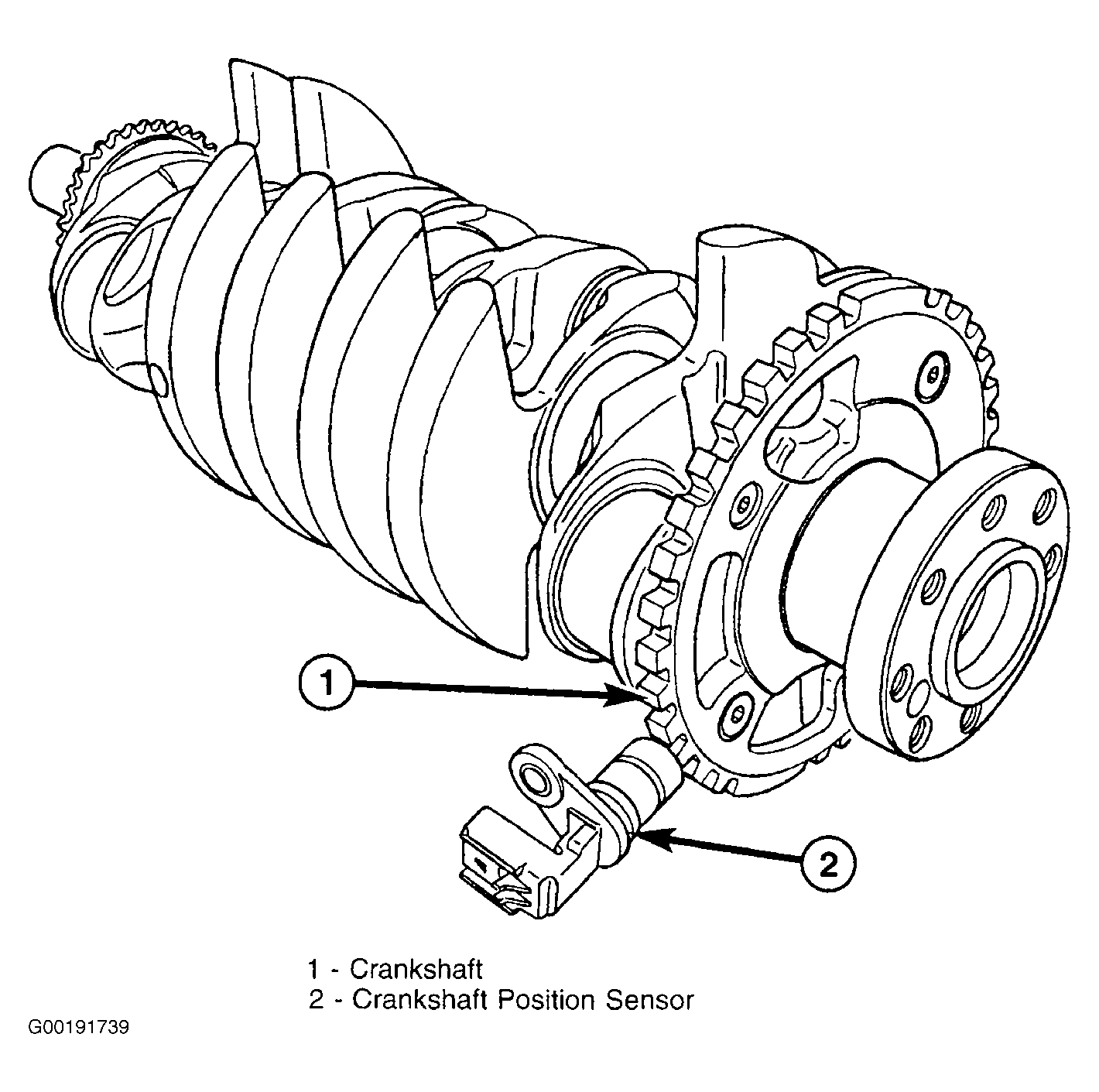

The crankshaft position sensor mounts to the engine block behind the generator, just above the oil filter. See Fig 1. The Powertrain Control Module (PCM) uses the Crankshaft Position sensor to calculate the following:
- Engine RPM
- TDC Number 1 & 4
- Ignition Coil Synchronization
- Injector Synchronization
- Camshaft-To-Crankshaft Misalignment - (Timing belt skipped 1 tooth or more diagnostic trouble code.)

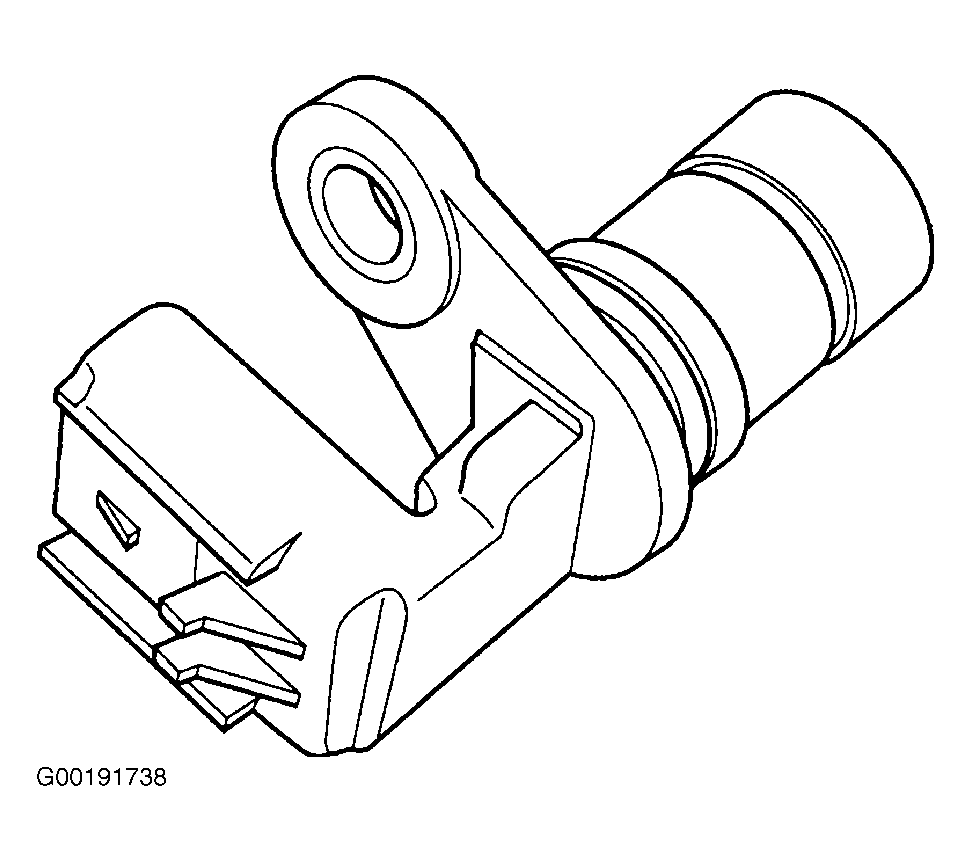

The PCM sends approximately 5 volts to the Hall Effect sensor. See Fig 2. This voltage is required to operate the Hall Effect chip and the electronics inside the sensor. A ground for the sensor is provided through the sensor return circuit. The input to the PCM occurs on a 5-volt output reference circuit that operates as follows. The Hall Effect sensor contains a powerful magnet. As the magnetic field passes over the dense portion of the counterweight, the 5-volt signal is pulled to ground (0.3 volt) through a transistor in the sensor. When the magnetic field passes over the notches in the crankshaft counterweight, the magnetic field turns off the transistor in the sensor, causing the PCM to register the 5-volt signal. The PCM identifies crankshaft position by registering the change from 0 to 5 volts, as signaled from the Crankshaft Position (CKP) sensor. The PCM determines what cylinder to fire from the CKP sensor input and the camshaft position sensor input. See Fig 3. The No. 8 crankshaft counterweight has a target ring with 32 teeth and notches, including one long reference tooth and notch. From the CKP sensor input the PCM determines engine speed and crankshaft angle (position).
