Ignition Coil

IGNITION COIL RESISTANCE - Ohms @ 70°F (21°C)

Coil Manufacturer

Primary

Secondary

Weastec (Steel Towers) ⁽¹⁾

0.45-0.65

11,500-13,500

Diamond (Brass Towers) ⁽¹⁾

0.53-0.65

10,900-14,700

⁽¹⁾	For Illustrations of the Weastec, see Fig 1. For Diamond, see Fig 2.

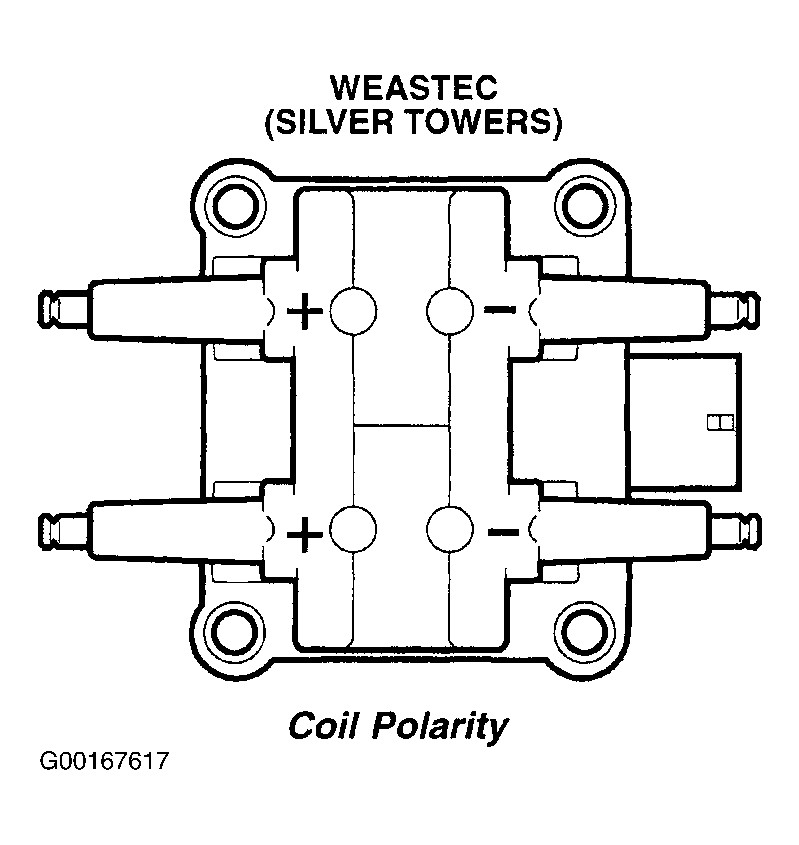

Fig 1: Identifying Weastec Ignition Coil

G00167617

Courtesy of CHRYSLER CORP.

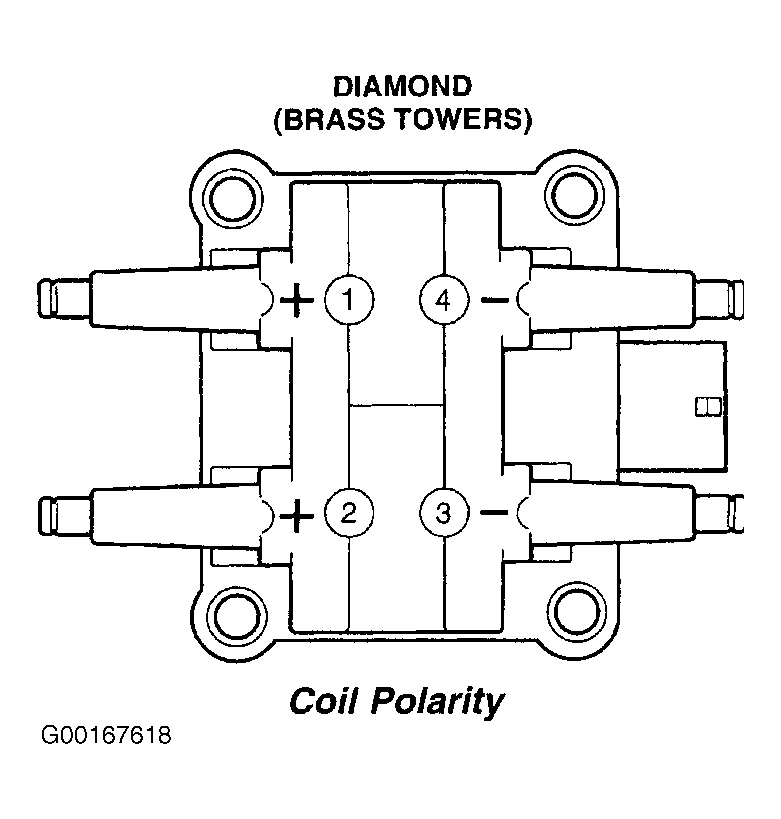

Fig 2: Identifying Diamond Ignition Coil

G00167618

Courtesy of CHRYSLER CORP.
