Installation - Upper

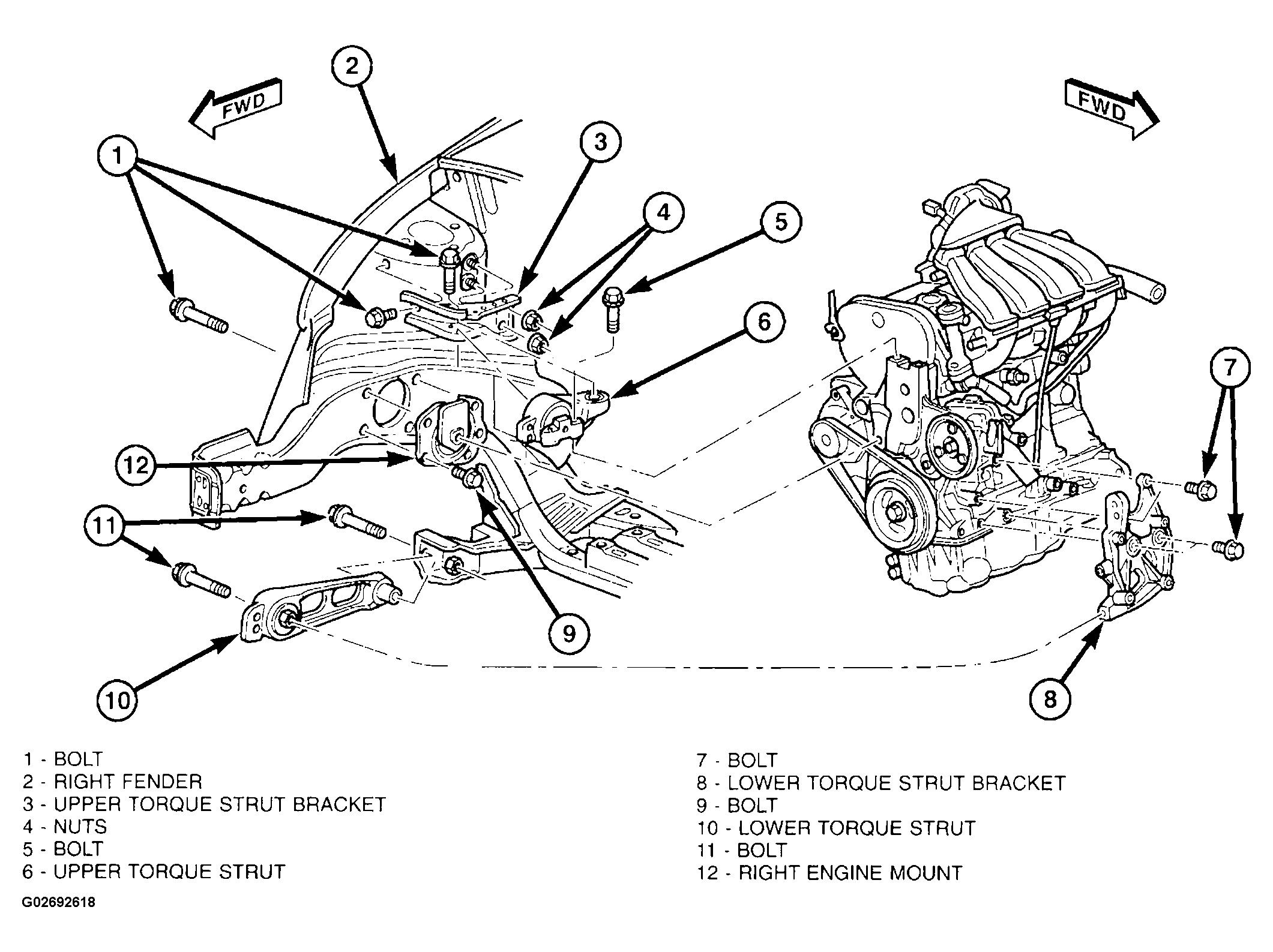

  1. Position the upper torque strut into mounting location (Figure).
  2. Move torque strut aside (towards right fender) and install timing belt front upper cover (if A/C equipped).
  3. Install the torque strut mounting bolts and perform the torque strut adjustment procedure, refer to TORQUE STRUT - ADJUSTMENTS .
