Installation - Lower

  1. Position lower torque strut into mounting locations.
  2. Install mounting bolts and perform torque strut adjustment procedure, refer to TORQUE STRUT - ADJUSTMENTS .
  3. Install pencil strut and tighten nuts to 58 N.m (43 ft. lbs.) (Fig 1).

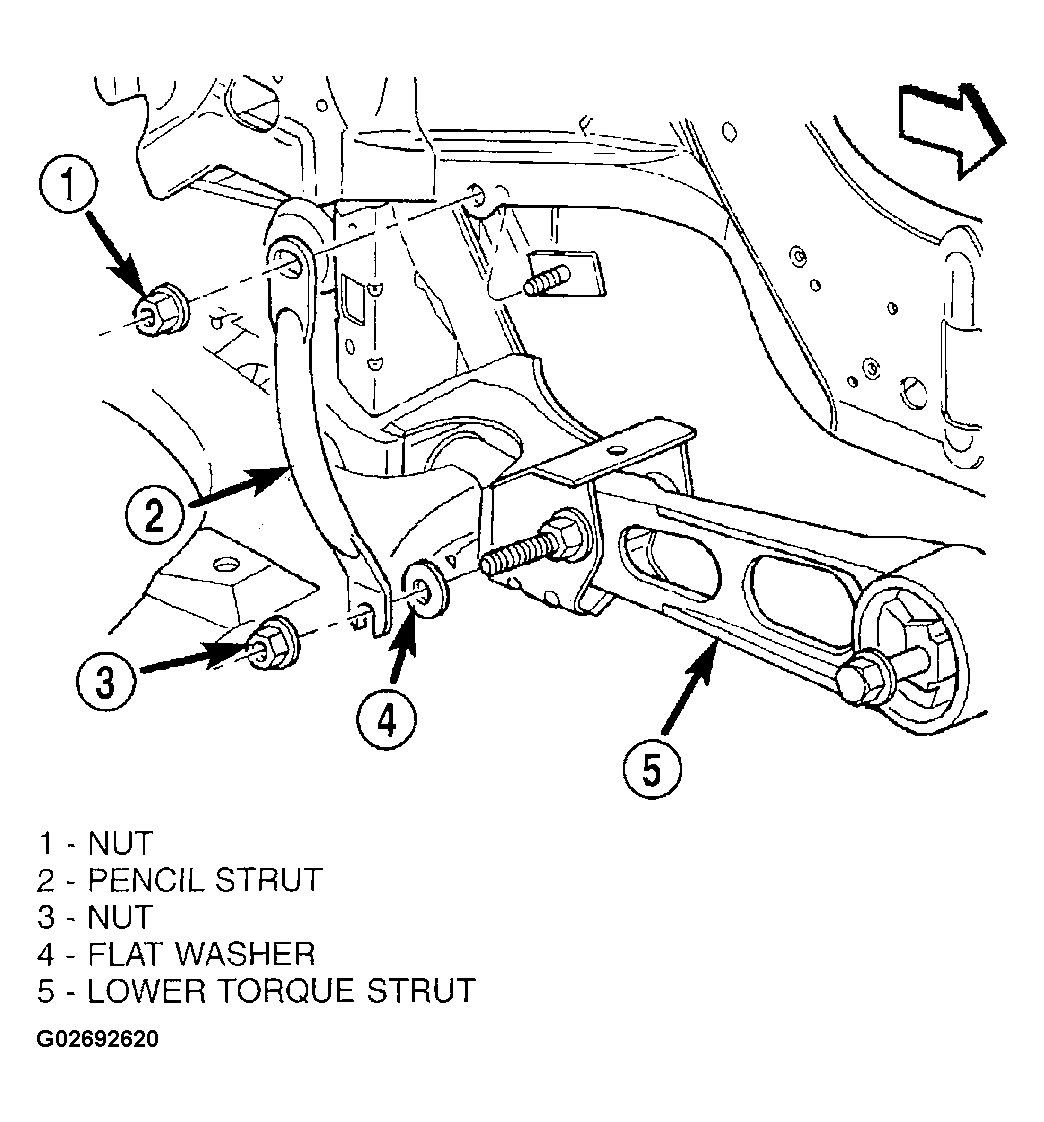

    Fig 1: Locating Pencil Strut
    G02692620Courtesy of DAIMLERCHRYSLER CORP.
  4. Install accessory belt splash shield (Fig 2) and lower vehicle.

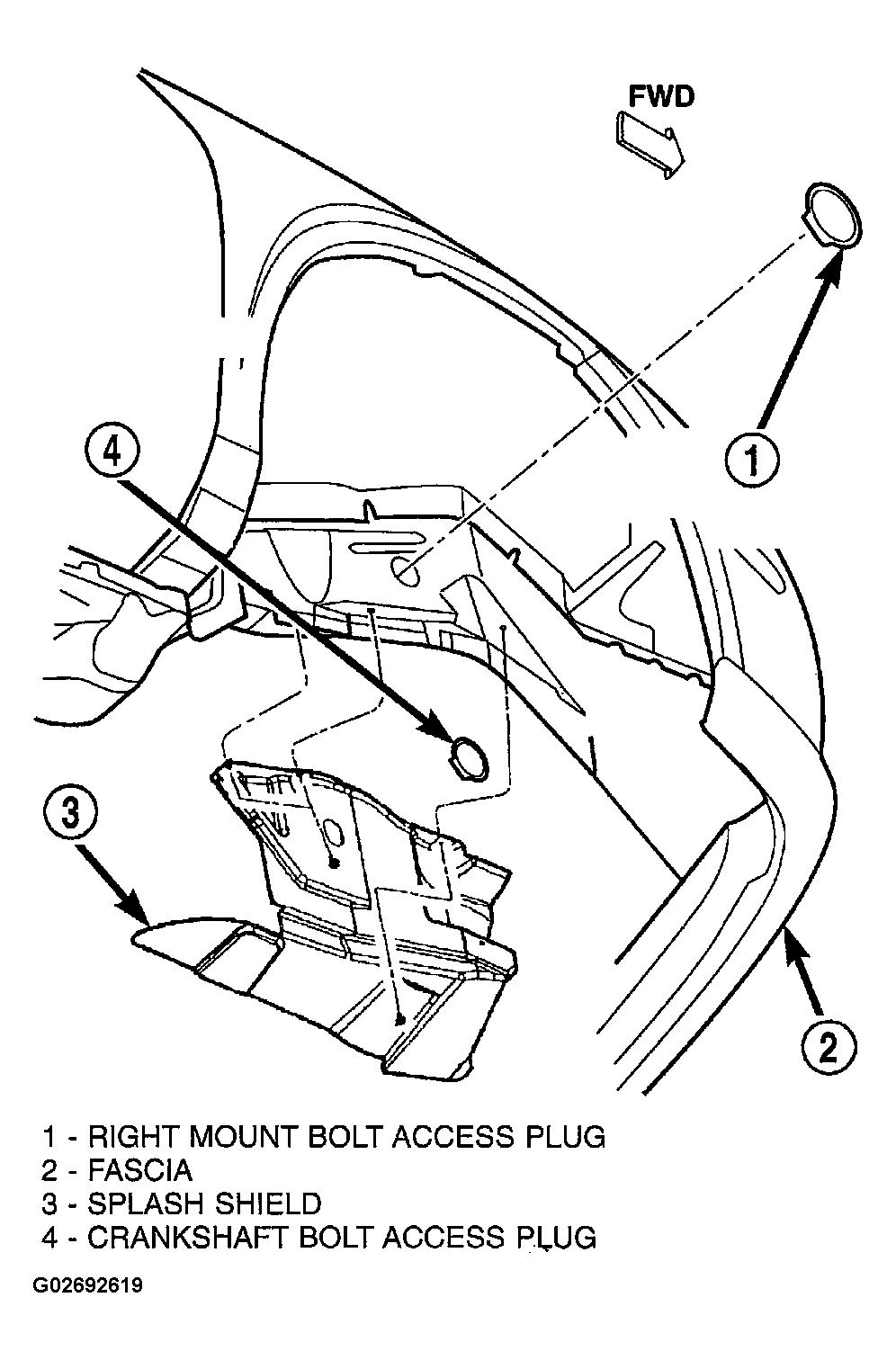

    Fig 2: Locating Splash Shield
    G02692619Courtesy of DAIMLERCHRYSLER CORP.
