| Balance Shaft Carrier to Block Bolts |
40 (54) |
| Balance Shaft Sprocket Bolt |
21 (28) |

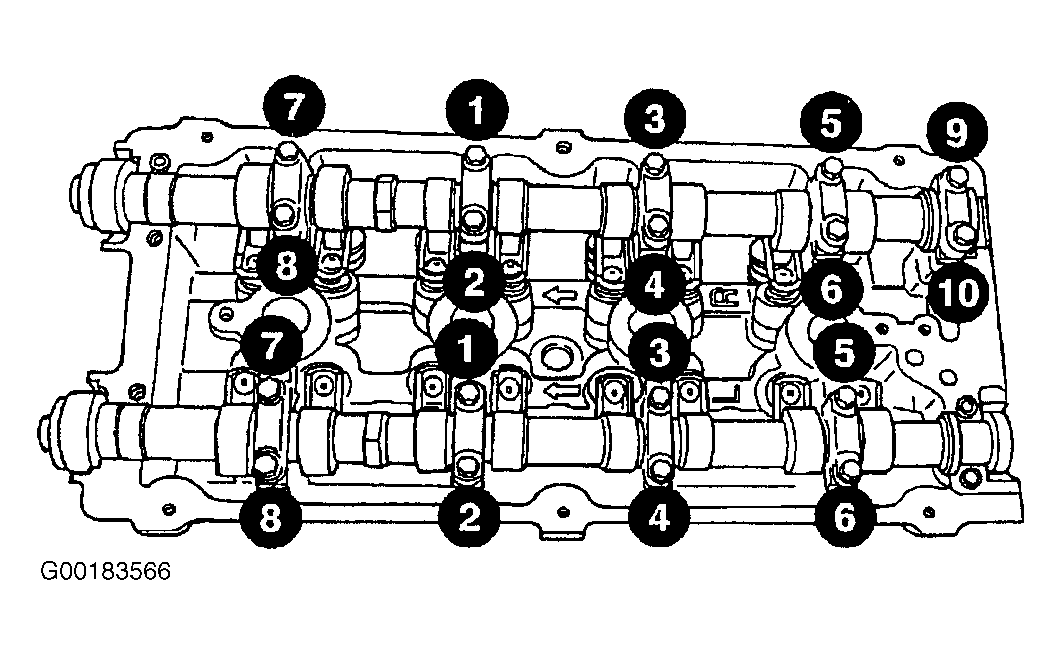

| Camshaft Bearing Cap |
21 (28) |
| Camshaft Sprocket Bolt |
85 (115) |
| Connecting Rod Cap Bolts |
| Step 1 |
20 (27) |
| Step 2 |
Additional 90 Degrees |

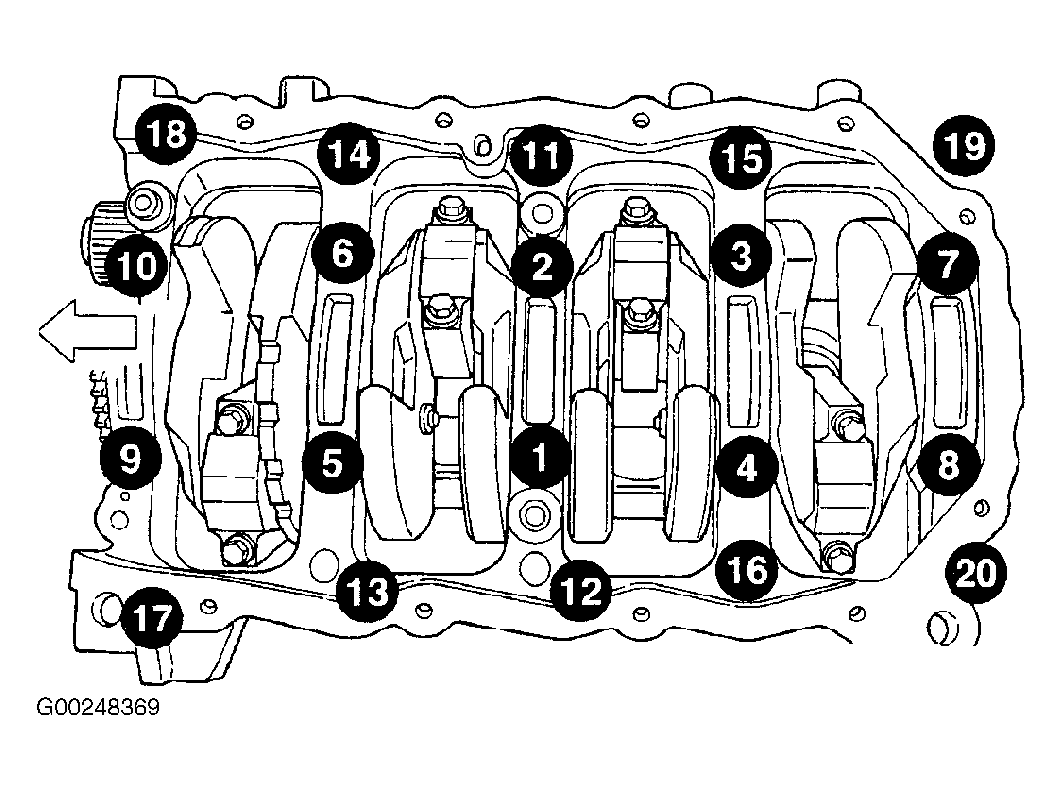

| Crankshaft Main Bearing Cap/Bedplate |
| M8 Bolts |
21 (28) |
| M11 Bolts |
55 (75) |
| Crankshaft Damper Bolt |
100 (136) |

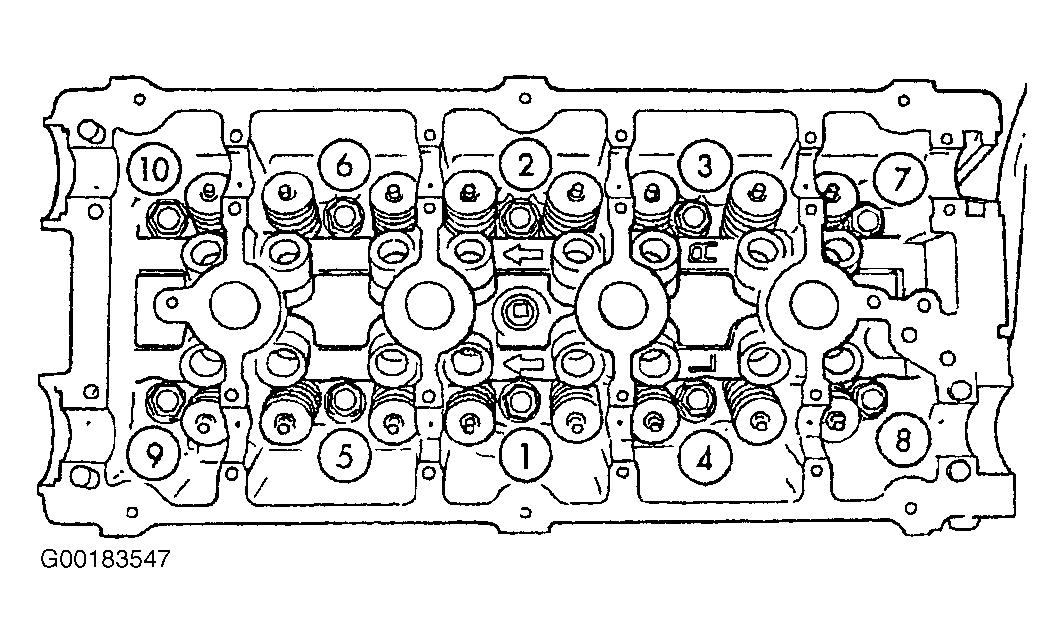

| Cylinder Head Bolts |
| Step 1 |
25 (34) |
| Step 2 |
50 (68) |
| Step 3 |
50 (68) |
| Step 4 |
Additional 90 Degrees |

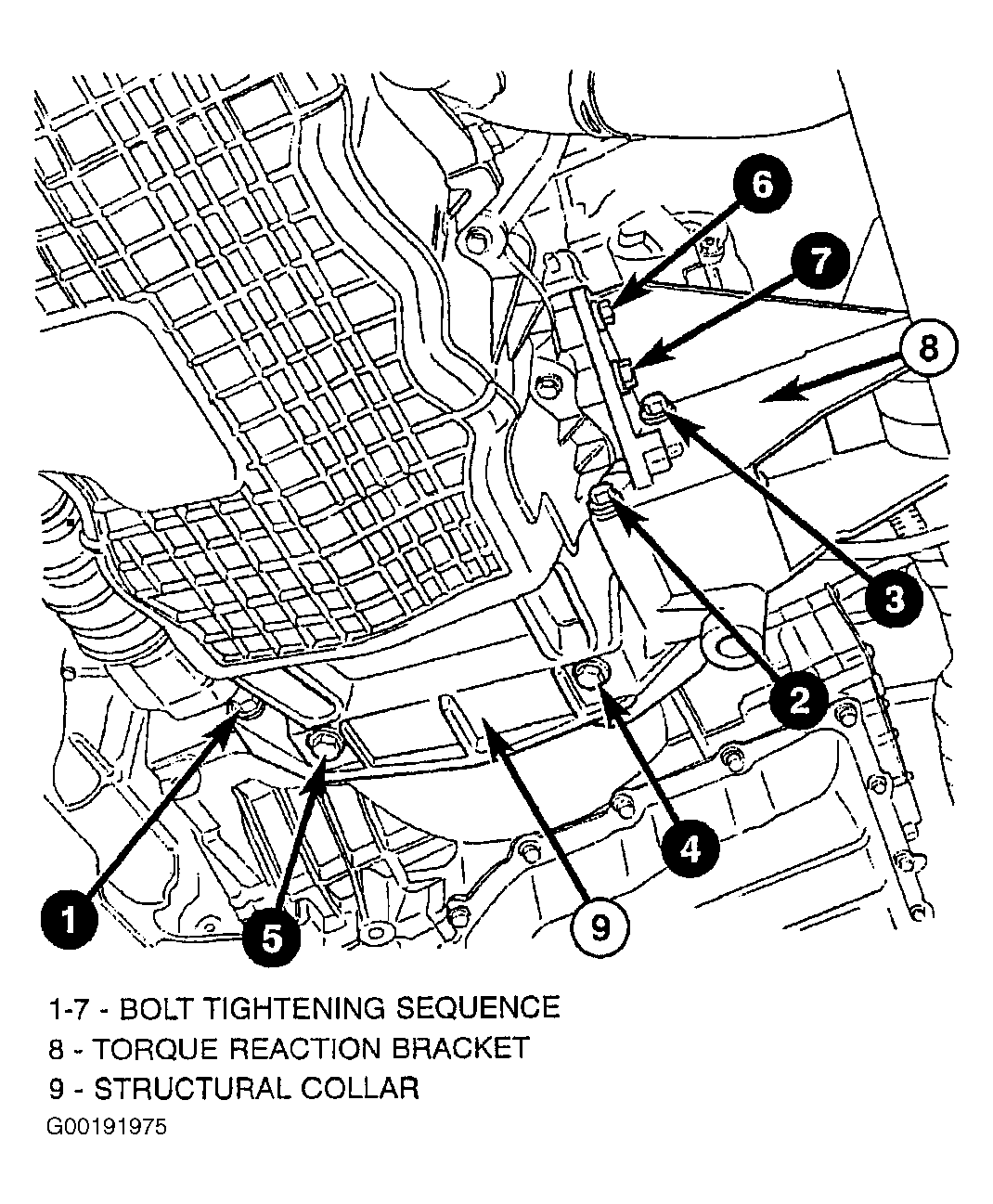

| Engine Support Bracket Bolts |
45 (61) |
| Exhaust Manifold/Turbocharger |
21 (28) |
| Flex Plate to Crankshaft Bolts |
70 (95) |

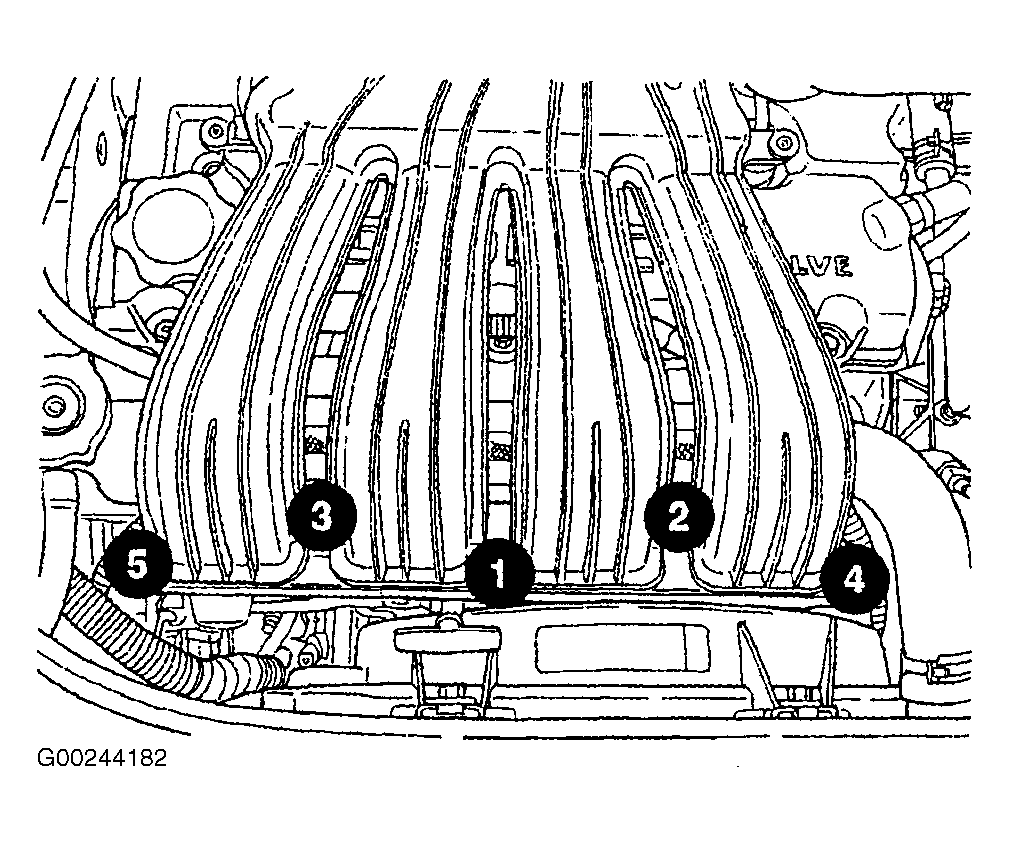

| Intake Manifold Bolts |
17 (23) |
| Intake Manifold Support Bracket |
20 (28) |
| Oil Cooler Connector Bolt |
41 (55) |
| Oil Filter |
10 (14) |
| Oil Pan Drain Plug |
20 (28) |
| Oil Pump to Block Bolts |
20 (28) |
| Oil Pump Pick-up Tube Bolt |
17 (23) |
| Spark Plugs |
13 (18) |
| Timing Belt Cover - Rear |
| M6 Bolts |
105 inch (12) |
| M8 Bolts |
21 (28) |
| Timing Belt Idler Pulley |
45 (61) |
| Timing Belt Tensioner Assembly Bolts |
45 (61) |
| Timing Belt Tensioner Lock Bolt |
18 (25) |
| INCH Lbs. (N.m) |
| Balance Shaft Carrier Cover Bolts |
105 (12) |

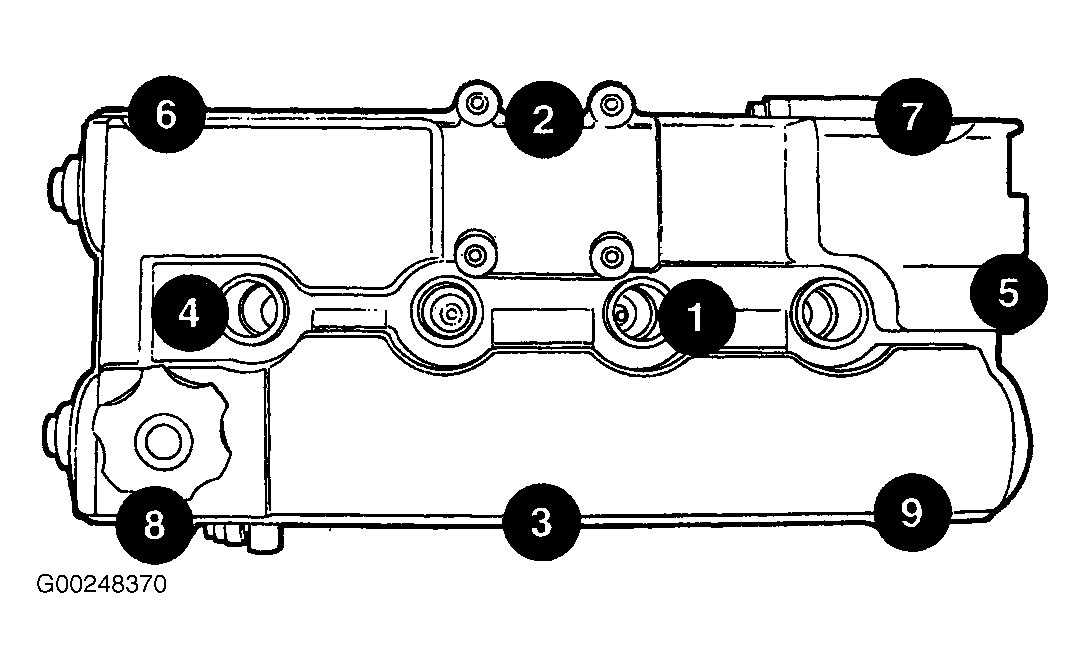

| Cylinder Head Cover |
| Step 1 |
40 (5) |
| Step 2 |
80 (9) |
| Step 3 |
105 (12) |
| Oil Filter Adapter Bolts |
105 (12) |
| Oil Jet Fastener |
105 (12) |
| Oil Pan Bolts |
105 (12) |
| Oil Pump Cover Plate Bolts |
118 (13) |
| PCV Valve |
70 (8) |
| Timing Belt Cover - Front Upper and Lower Bolts |
50 (6) |
