Left Mount: Installation

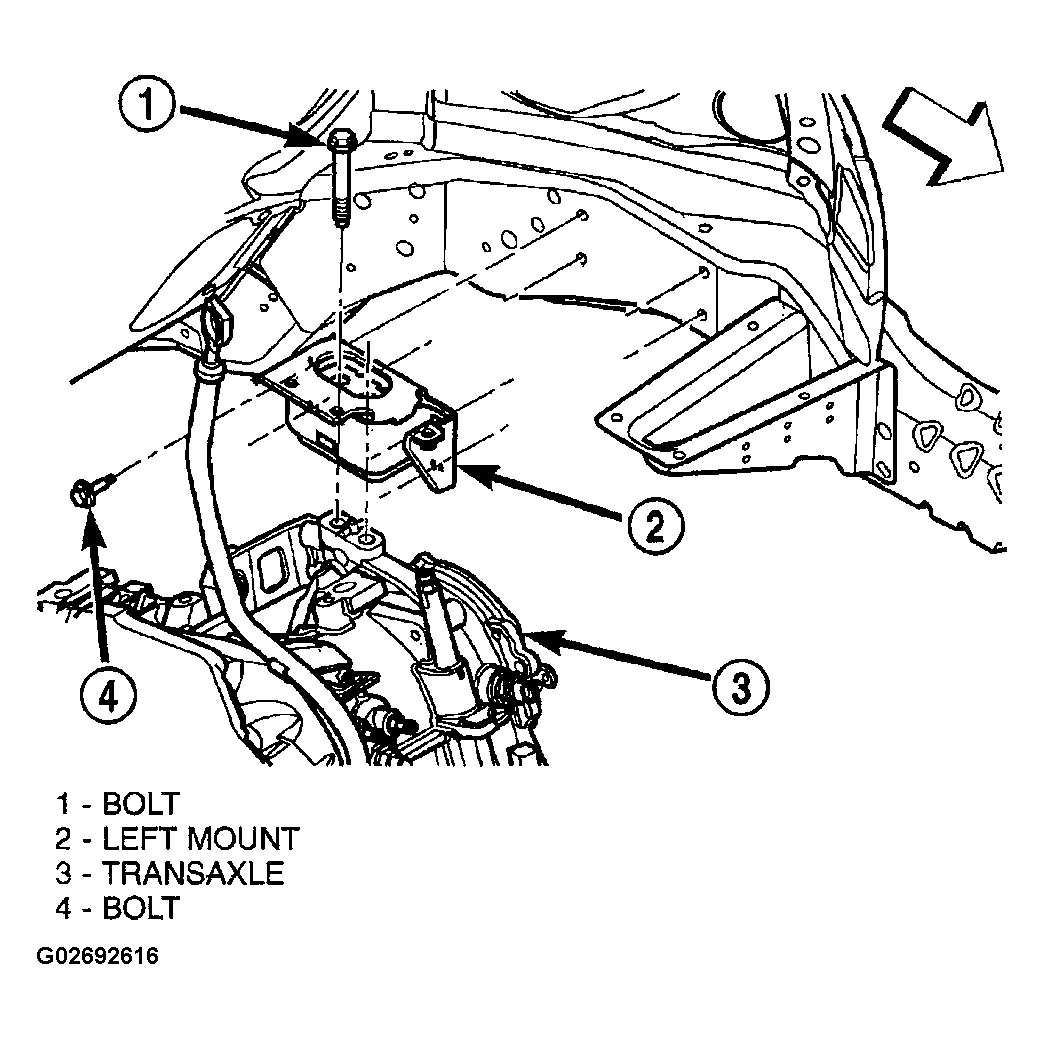

  1. Install engine mount bracket to body frame rail and tighten fasteners to 28 N.m (250 in. lbs.) (Figure).
  2. Position engine/transaxle for installation of mount to transaxle bolts. Install and tighten bolts to 68 N.m (50 ft. lbs.) (Figure).
  3. Remove jack from under transaxle.
  4. Install the power distribution center (PDC).
  5. Connect negative cable to battery.
  6. Install air cleaner assembly.
