Powertrain Control Module (2.0L Next Generation Controller) Connector End View (C2)

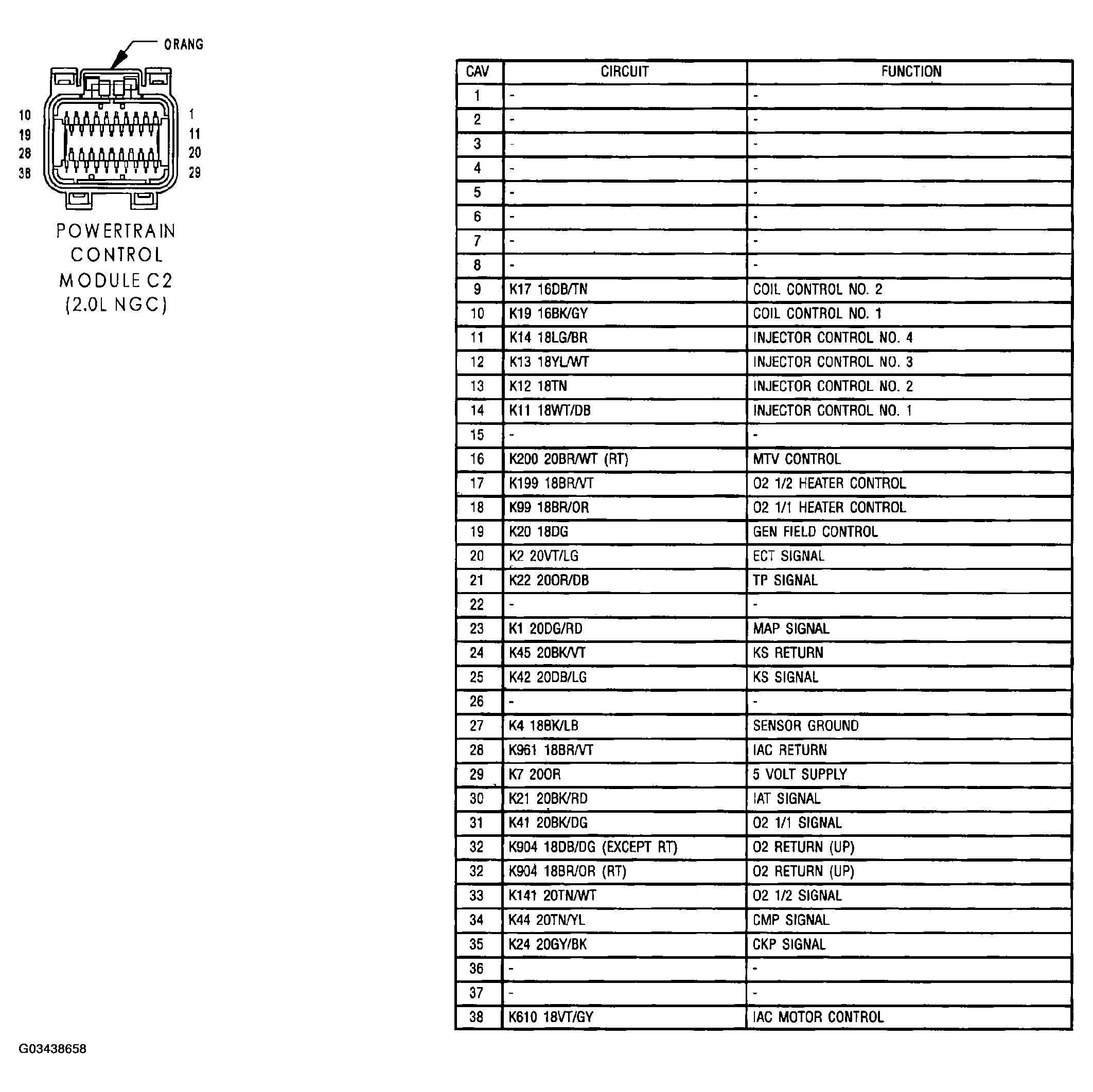

Fig 1: Powertrain Control Module (2.0L Next Generation Controller) Connector End View (C2)
G03438658Courtesy of DAIMLERCHRYSLER CORP.
