Powertrain Control Module (1.6L) Connector End View

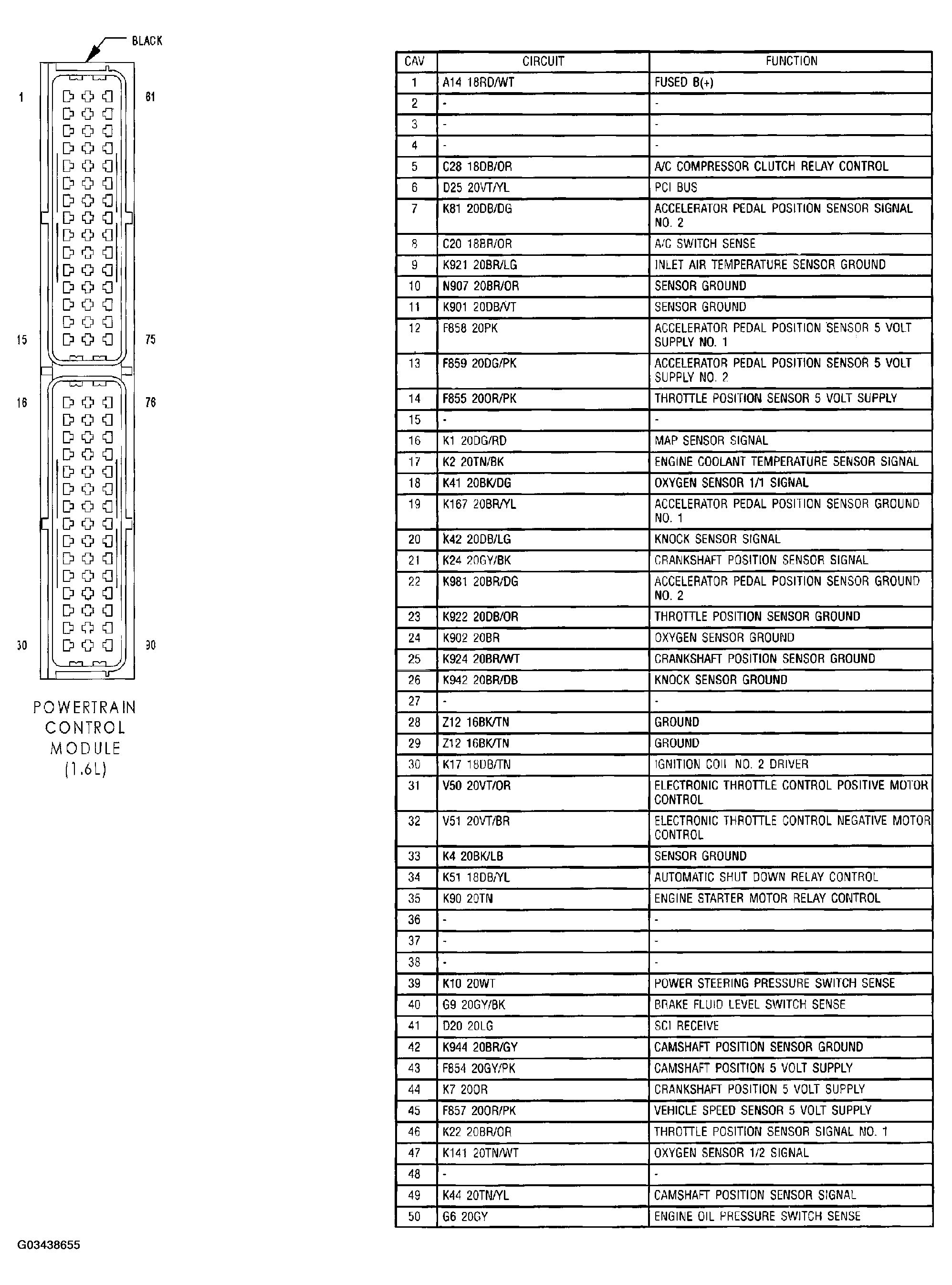

Fig 1: Powertrain Control Module (1.6L) Connector End View
G03438655Courtesy of DAIMLERCHRYSLER CORP.

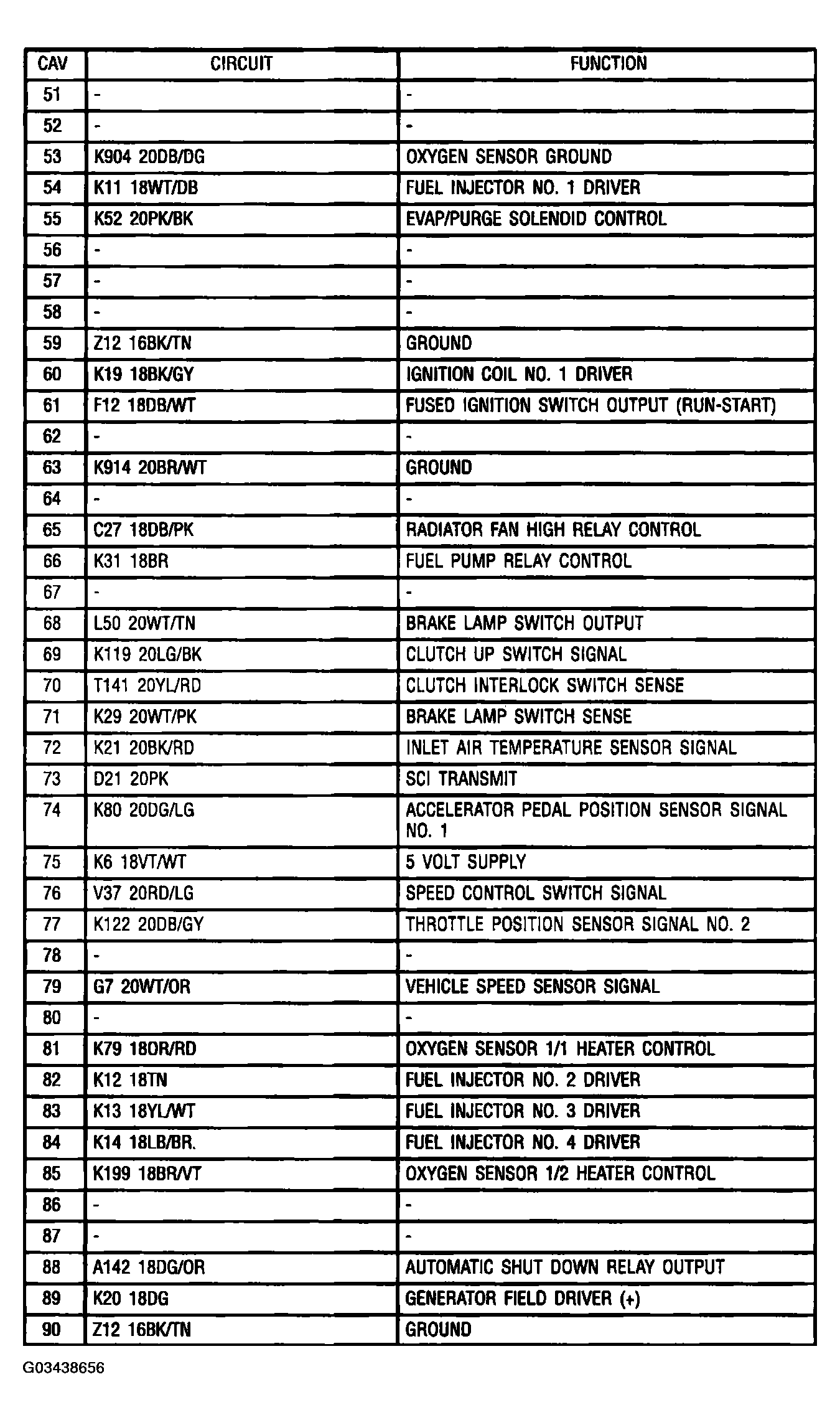

Fig 1: Powertrain Control Module (1.6L) Connector End View
G03438656Courtesy of DAIMLERCHRYSLER CORP.
