A/C Heater Control Connector End View

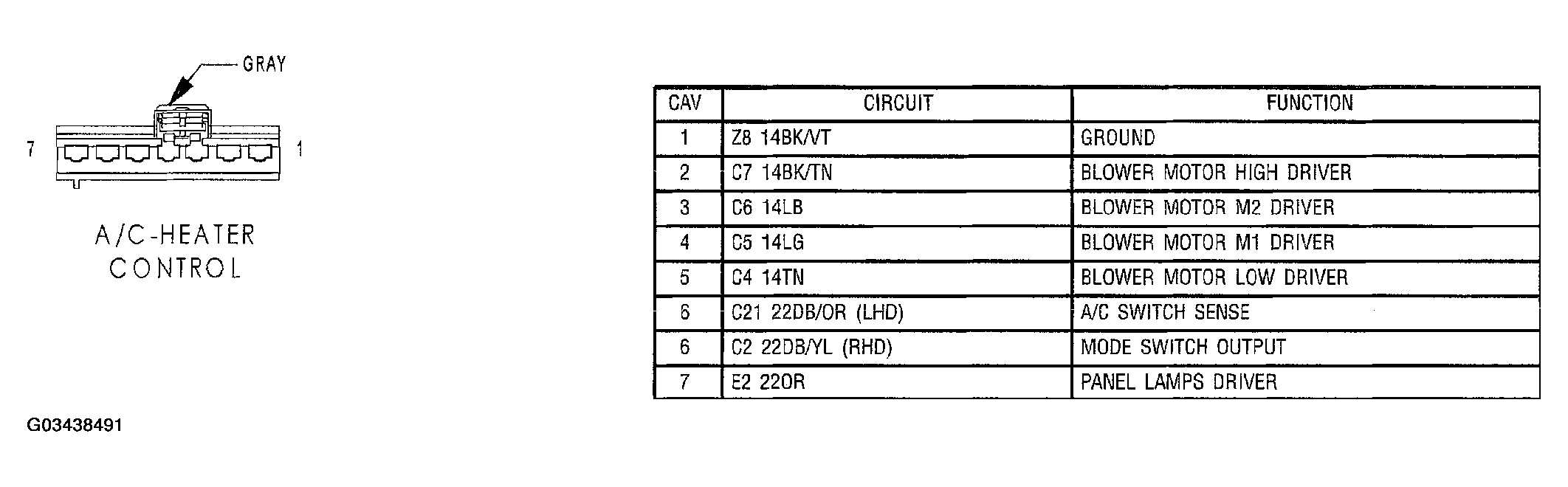

Fig 1: A/C Heater Control Connector End View

G03438491

Courtesy of DAIMLERCHRYSLER CORP.
