Module Assembly: Removal

  1. Close glass panel, if possible.
  2. Remove A-pillar trim.
  3. Remove upper B-pillar and C-pillar trim.

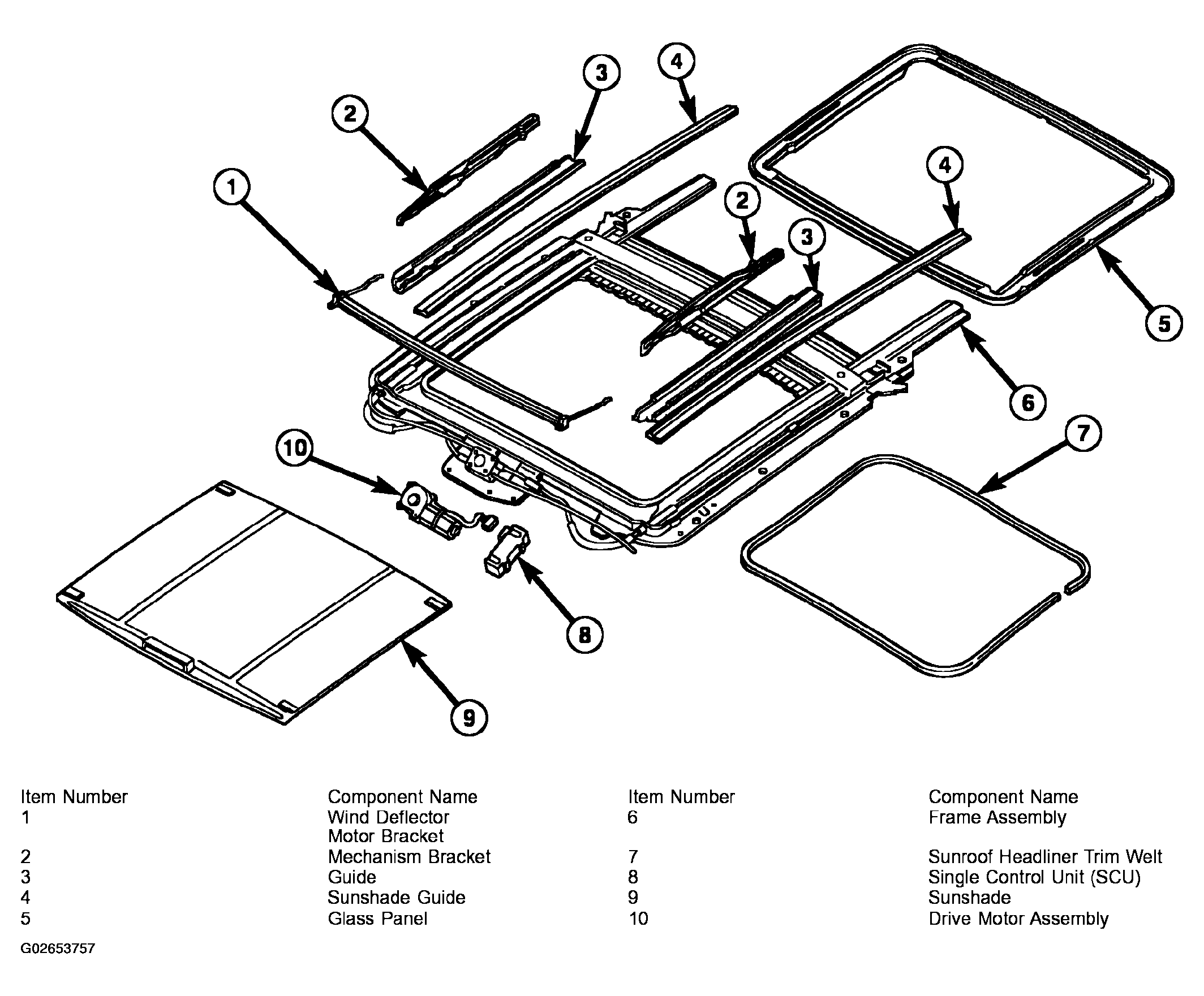

  4. Remove sunroof welt (Figure).
  5. Remove the switch.
  6. Detach fastener from headlinder bracket to the front beam.
  7. Remove all assist handles.
  8. Remove sun visors.
  9. Remove headlining and disconnect the dome lamp connector.
  10. Disconnect sunroof motor wiring connector.
  11. Disconnect drain tubes.
  12. Remove fasteners attaching sunroof module to vehicle roof.
  13. With the aid of a helper, remove sunroof module from roof.
  14. Remove sunroof module from vehicle.
