Wiper Module: Installation

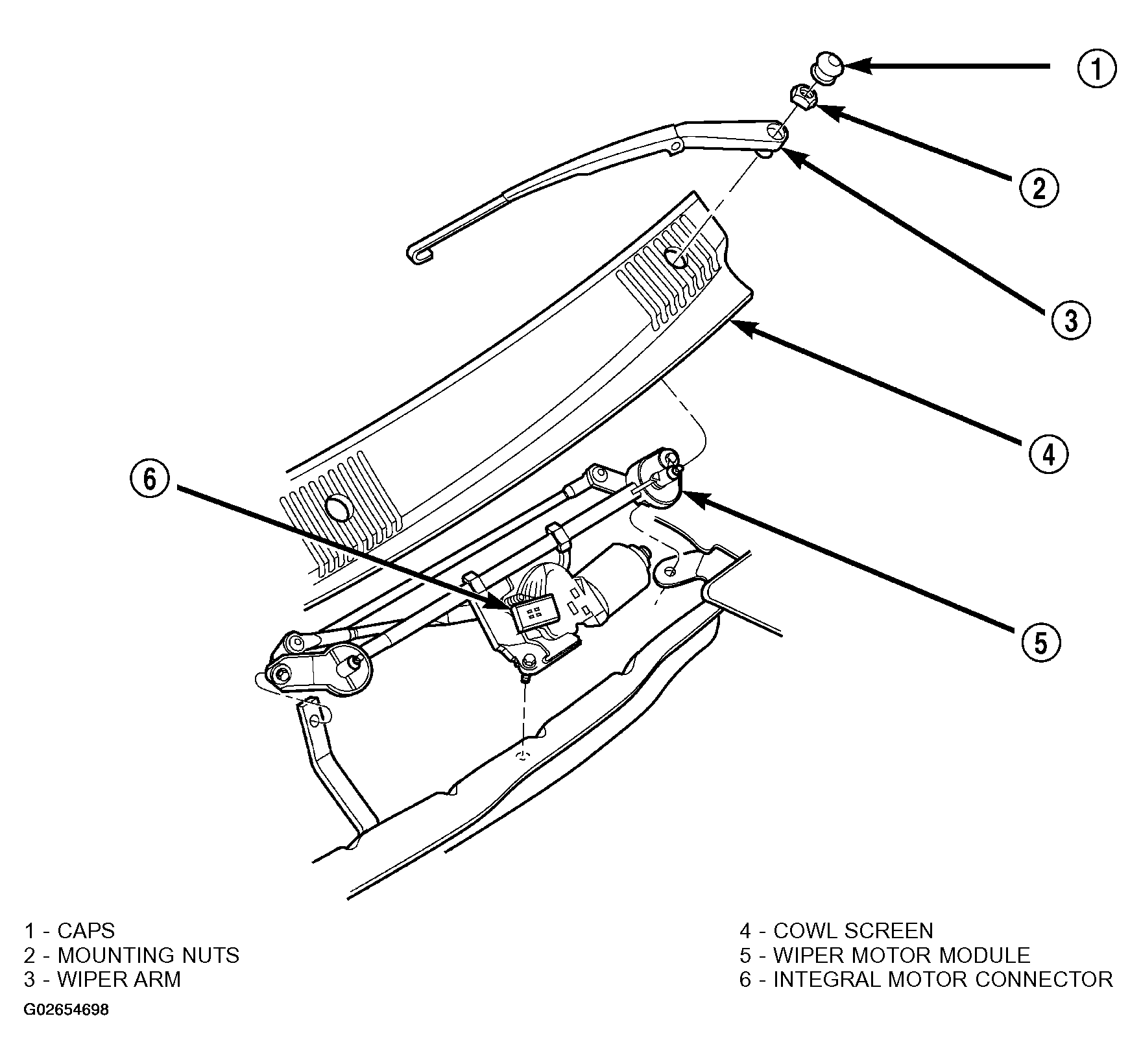

  1. Install the windshield wiper module into the vehicle (Figure).
  2. Install the mounting screws (Figure) and tighten to 7 to 9 N.m (60 to 80 in. lbs.) torque.
  3. Connect the motor posi-lock harness connector (Figure).
  4. Install the left side cowl cover (Figure). Refer to EXTERIOR article.
  5. Install the wiper arms. Refer to WIPER ARMS .

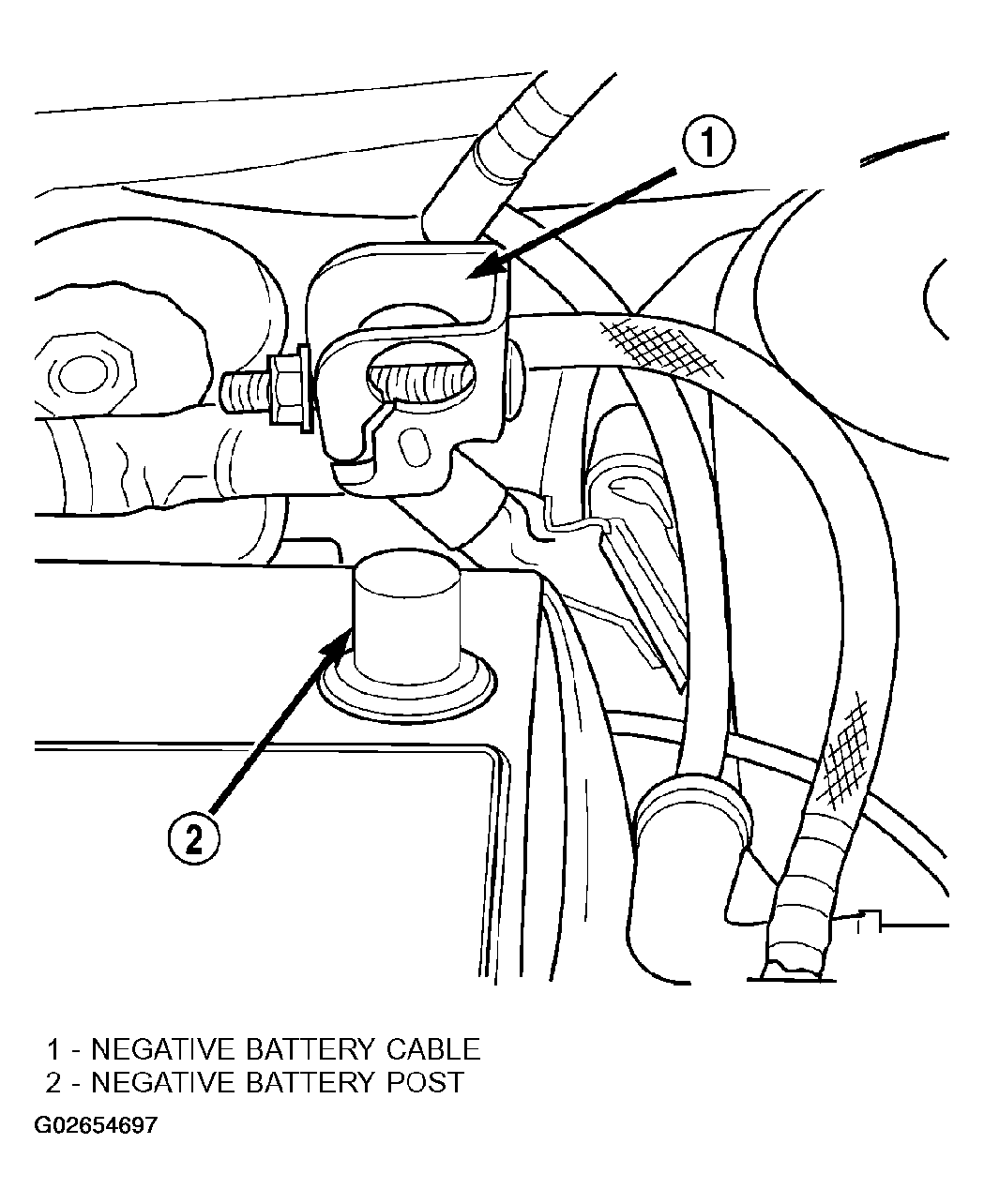

  6. Connect the battery negative cable (Figure).
