Transmission Range Sensor: Installation

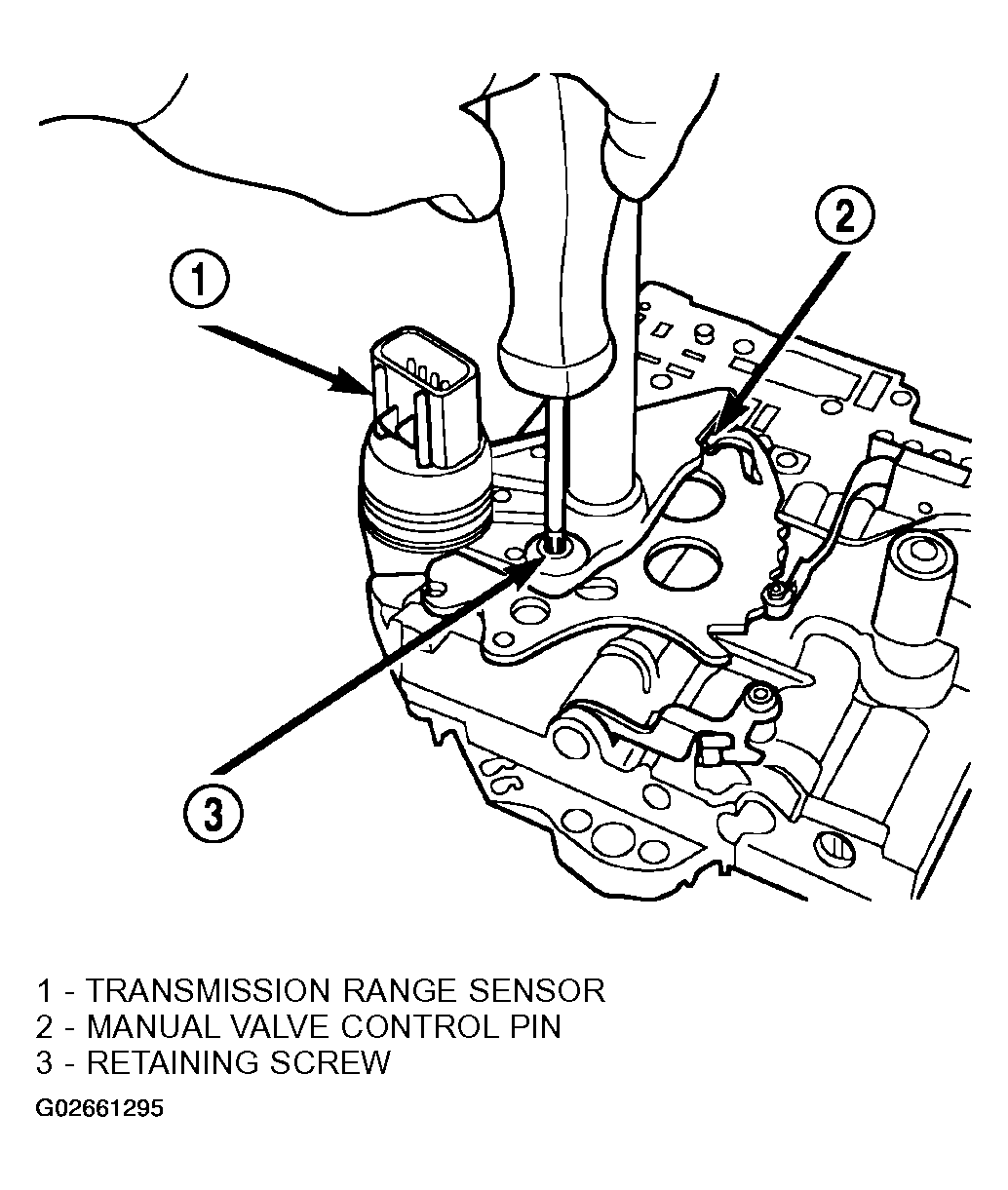

  1. Install transmission range sensor (TRS) to the valve body and torque retaining screw (Figure) to 5 N.m (45 in. lbs.).
  2. Install valve body to transaxle. (Refer to VALVE BODY - INSTALLATION ).
