Speed Sensor - Input: Removal

  1. Disconnect battery negative cable.
  2. Remove air cleaner/throttle body assembly.
  3. Disconnect input speed sensor connector.
  4. Unscrew and remove input speed sensor (Fig 1).

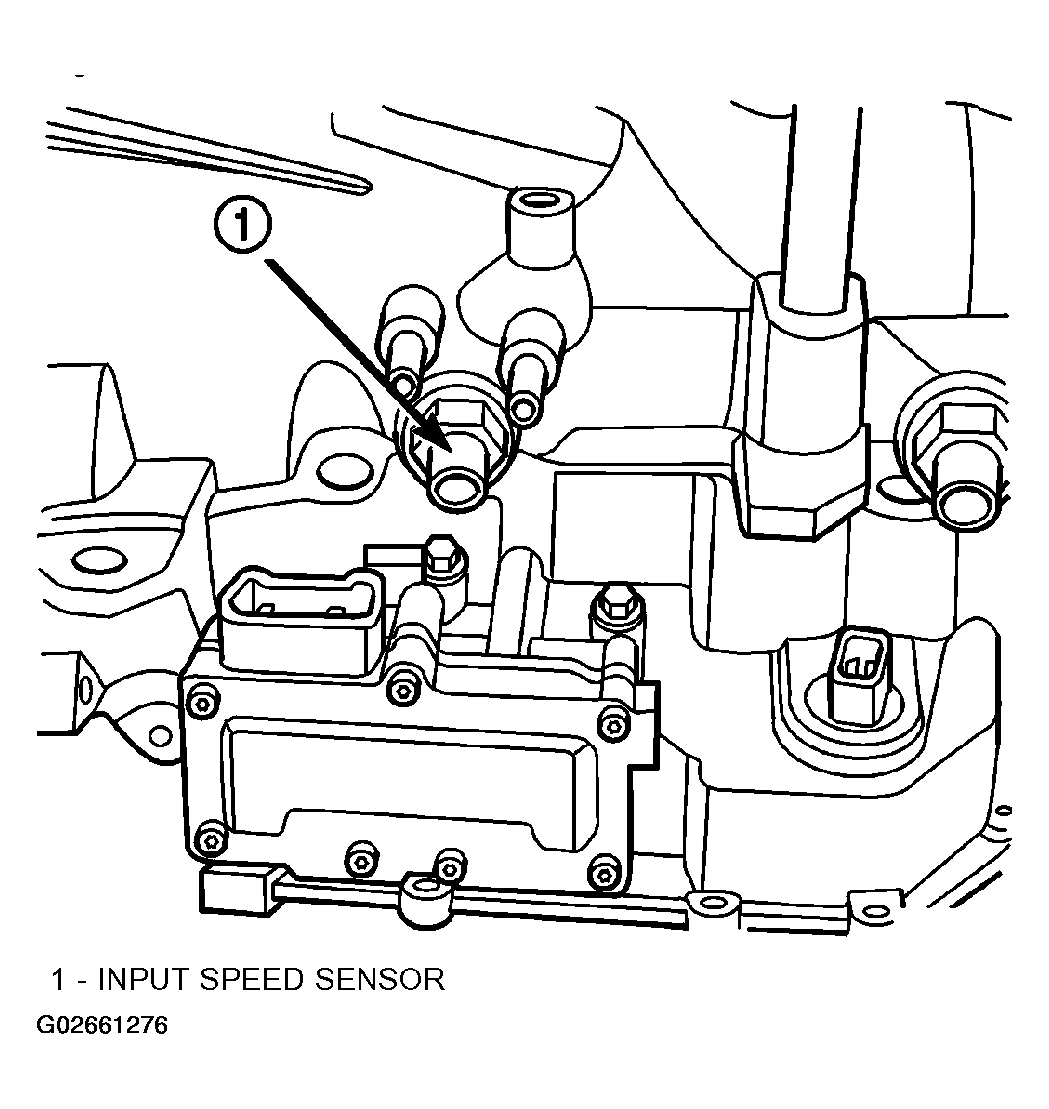

    Fig 1: Removing Input (Turbine) Speed Sensor
    G02661276Courtesy of DAIMLERCHRYSLER CORP.
  5. Inspect speed sensor o-ring (Fig 2) and replace if necessary.

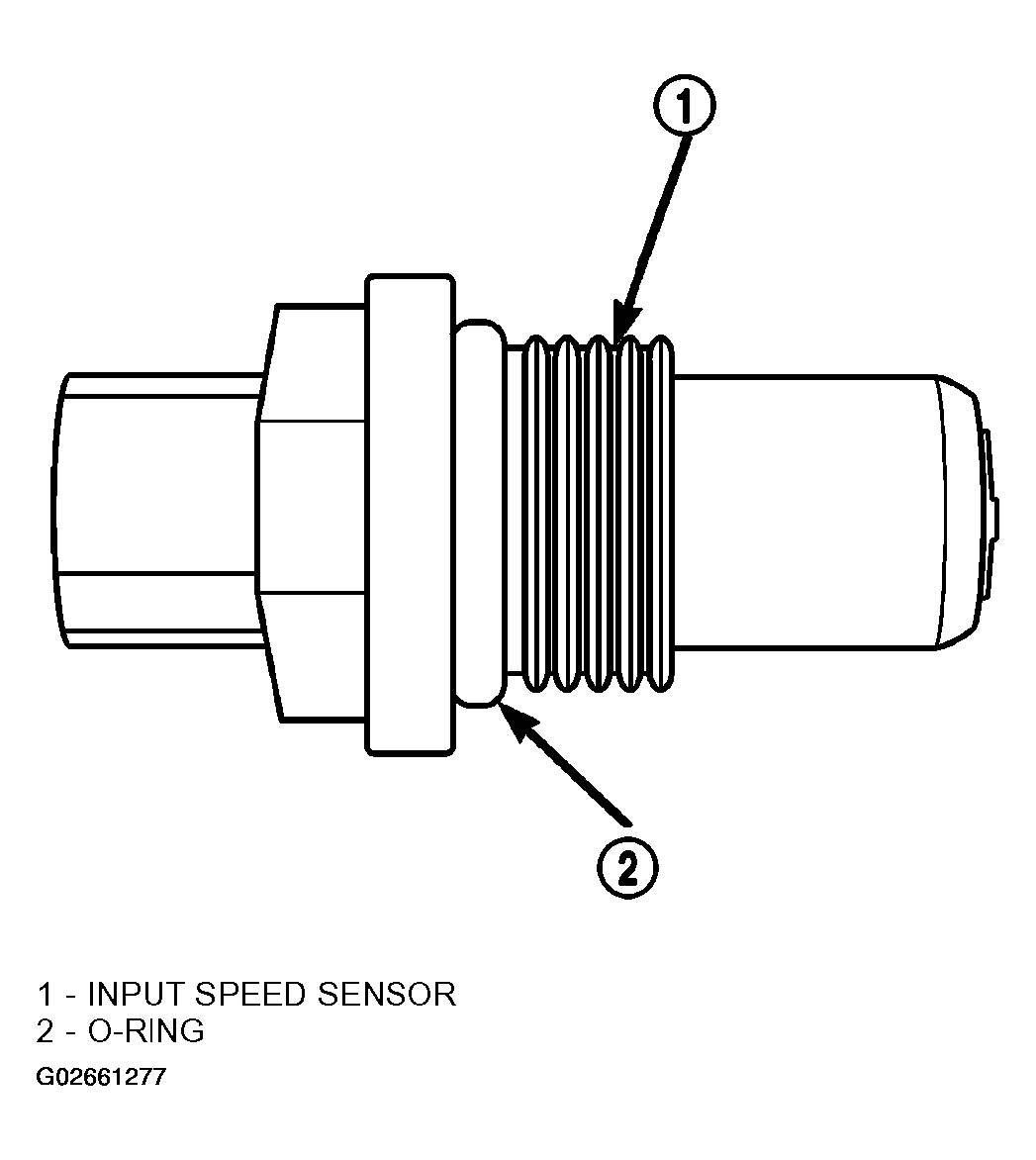

    Fig 2: Identifying O-ring Location
    G02661277Courtesy of DAIMLERCHRYSLER CORP.
