Speed Sensor - Input: Description

The Input Speed Sensor is a two-wire magnetic pickup device that generates AC signals as rotation occurs. It is threaded into the transaxle case (Fig 1), sealed with an o-ring (Fig 2), and is considered a primary input to the Powertrain/Transmission Control Module.

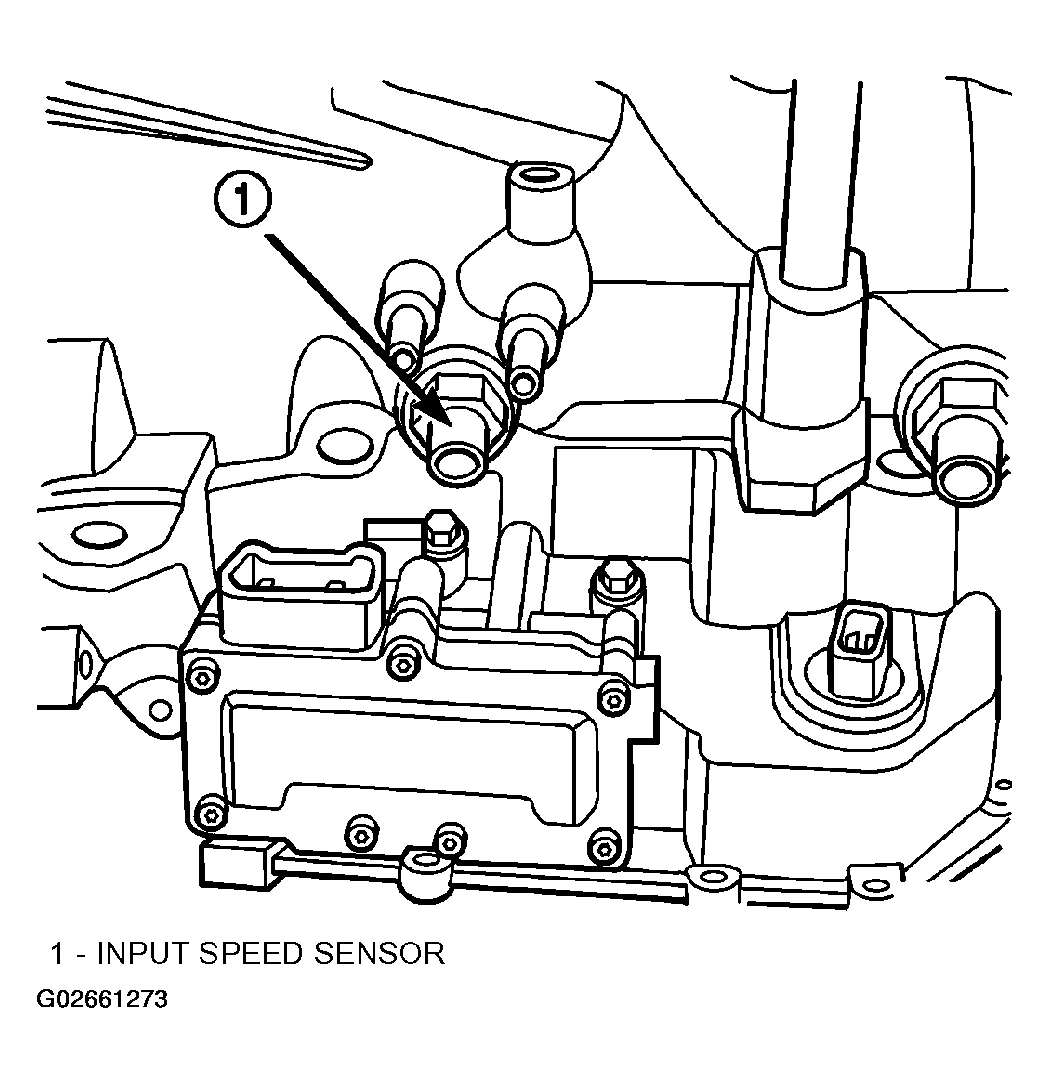

Fig 1: Identifying Input Speed Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

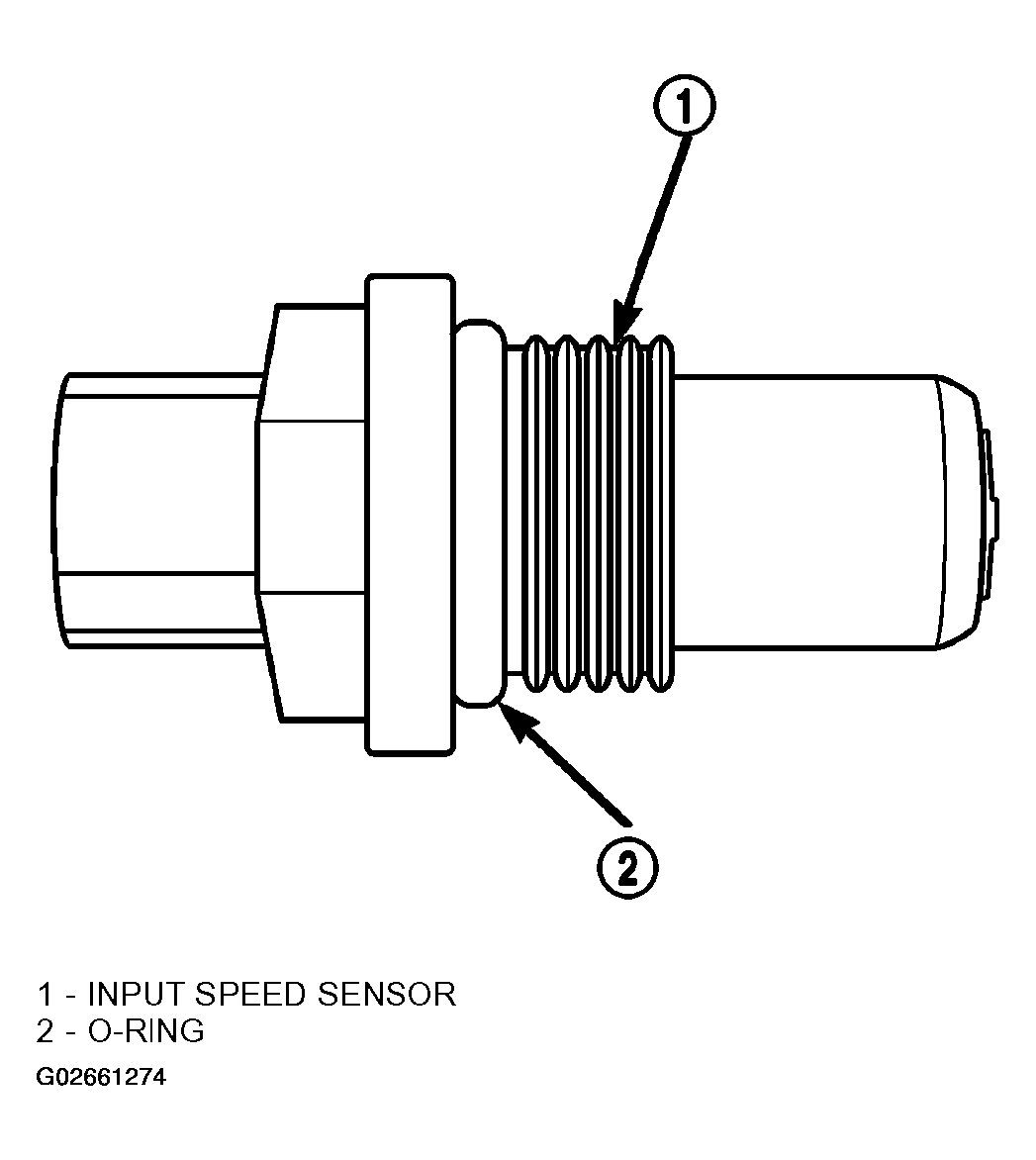

Fig 2: Identifying O-Ring Location

Courtesy of DAIMLERCHRYSLER CORP.
