Input Clutch Assembly: Disassembly
- Mount input clutch assembly to Input Clutch Pressure Fixture (Tool 8391).

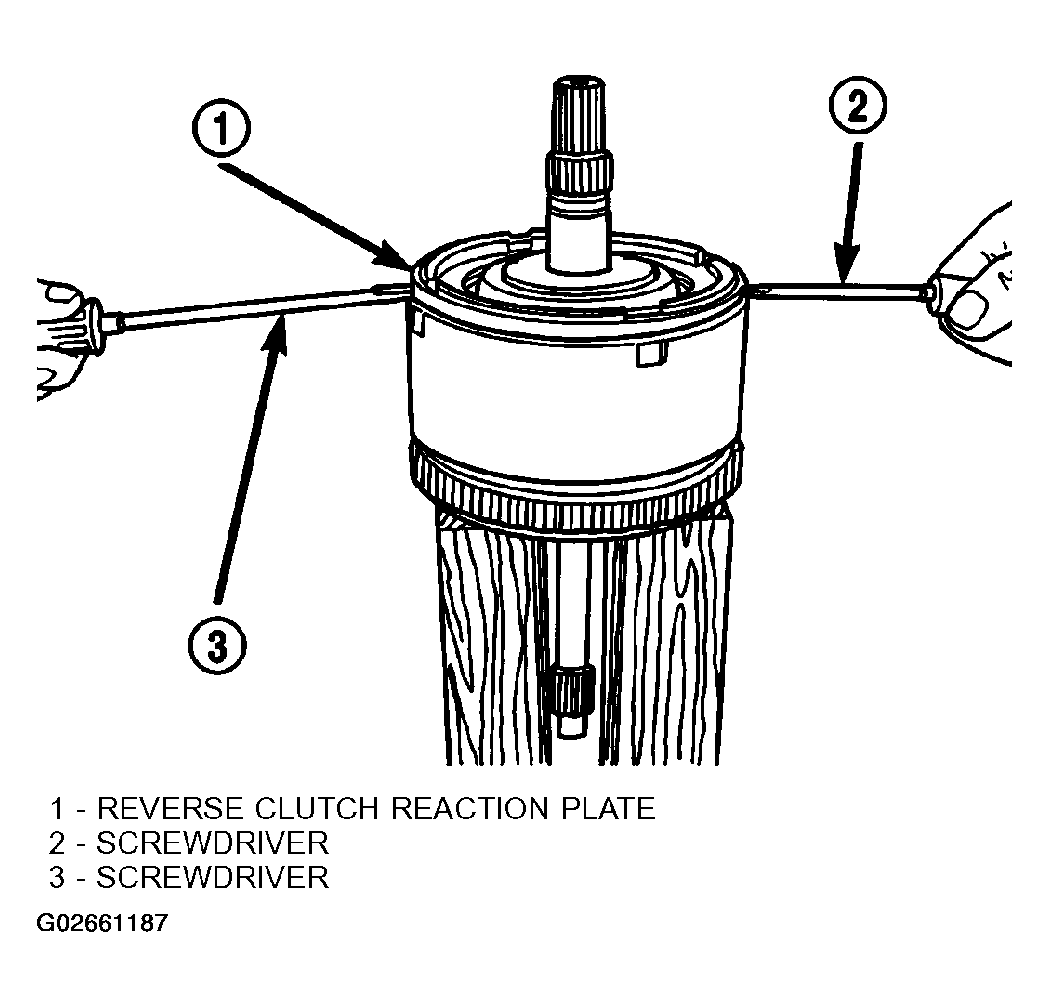

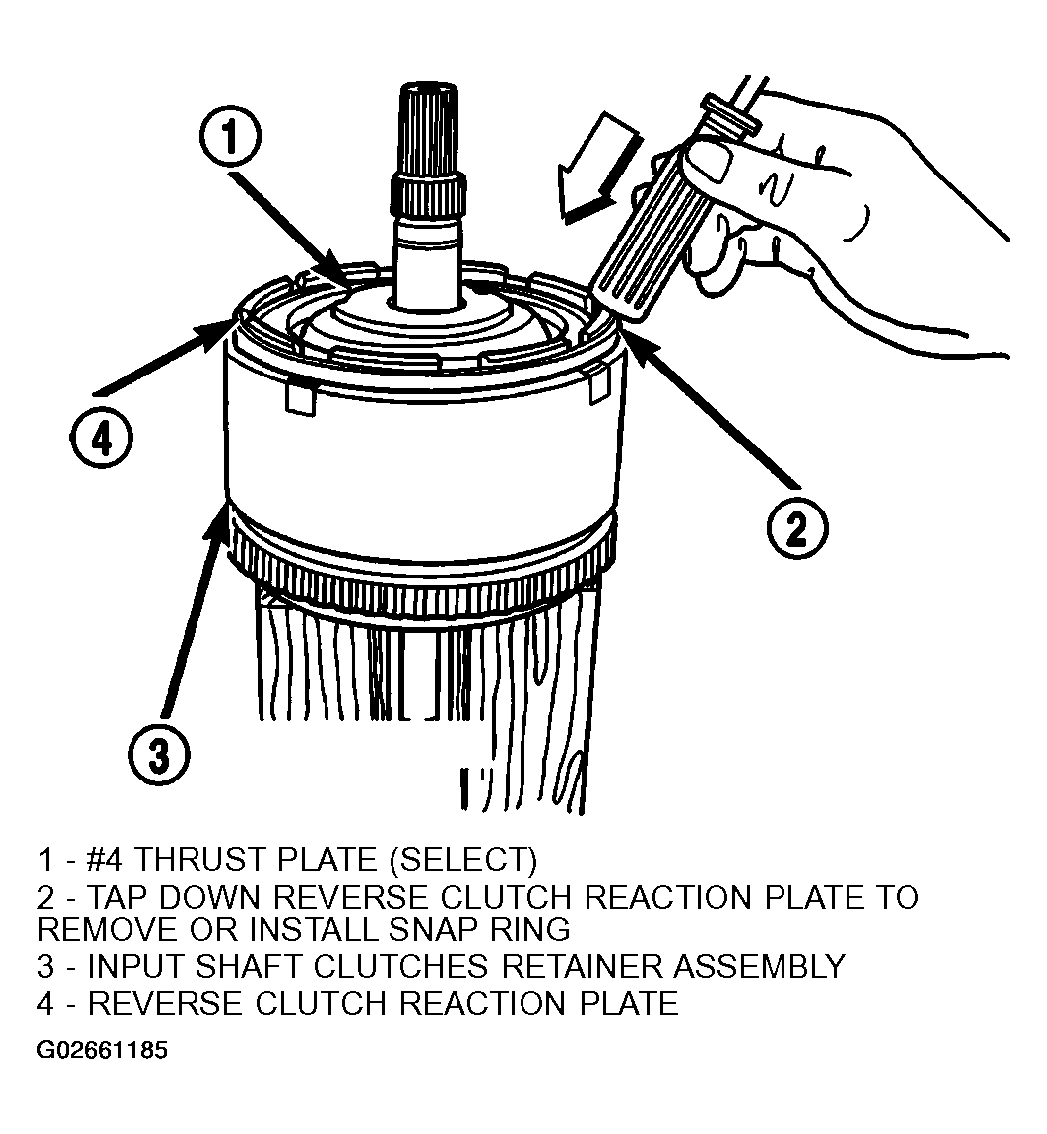

- Tap down reverse clutch reaction plate to release pressure from snap ring (Fig 1).
- Remove reverse clutch snap ring (Fig 2).

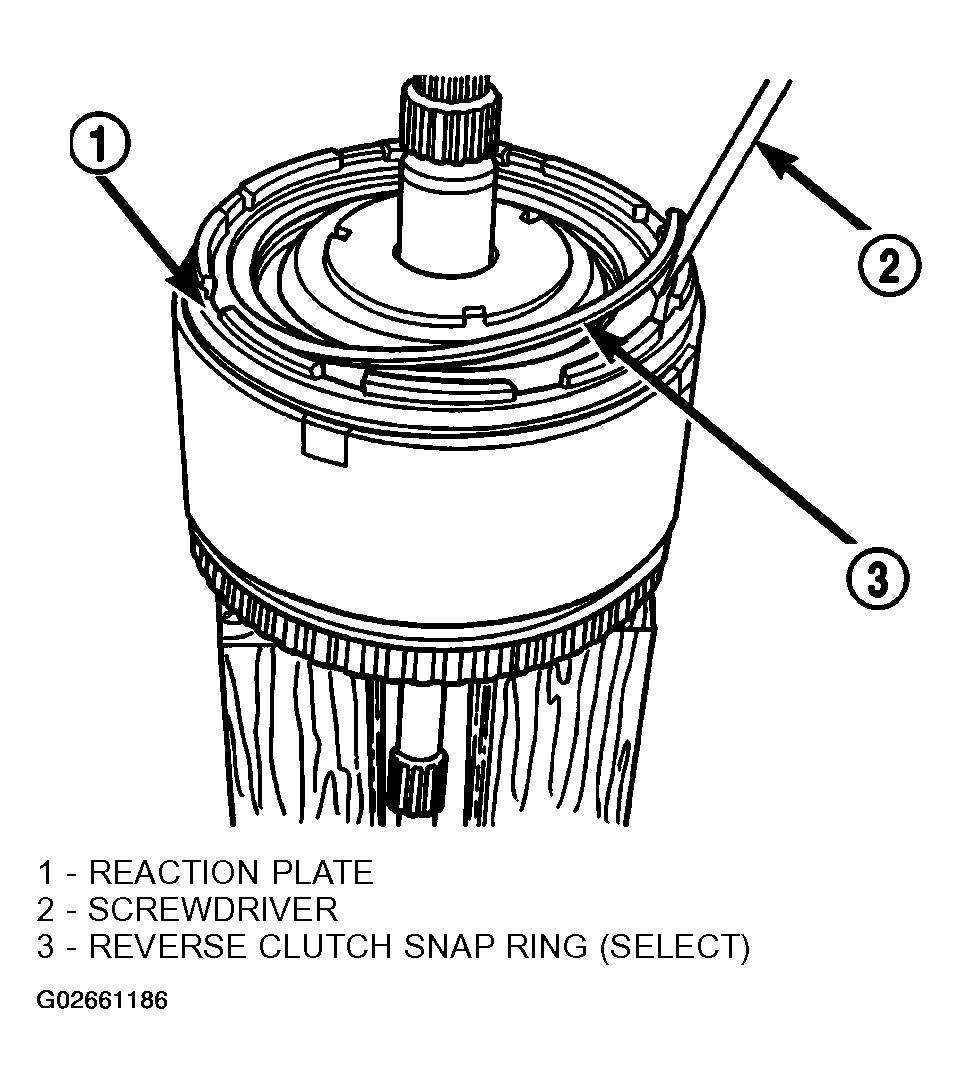

- Pry up and remove reverse clutch reaction plate (Fig 3).
- Remove reverse clutch pack (Fig 4). Tag components for assembly identification.

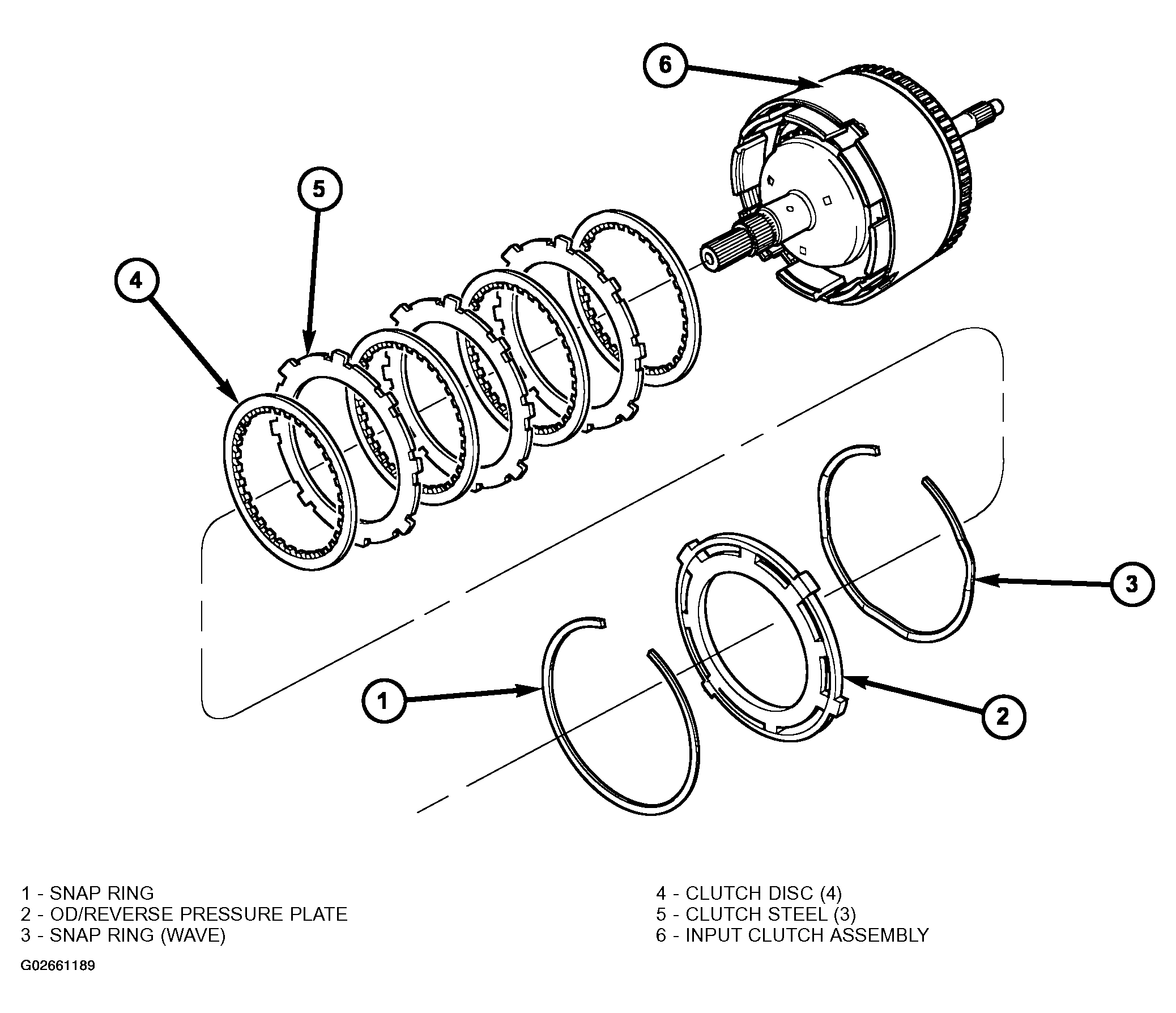

- Remove the OD/Reverse pressure plate snap ring (Fig 5).
- Remove OD/Reverse pressure plate (Fig 5).
- Remove OD/Reverse pressure plate wave snap ring (Fig 5).
- Remove OD clutch pack (Fig 5). Tag components for assembly identification.

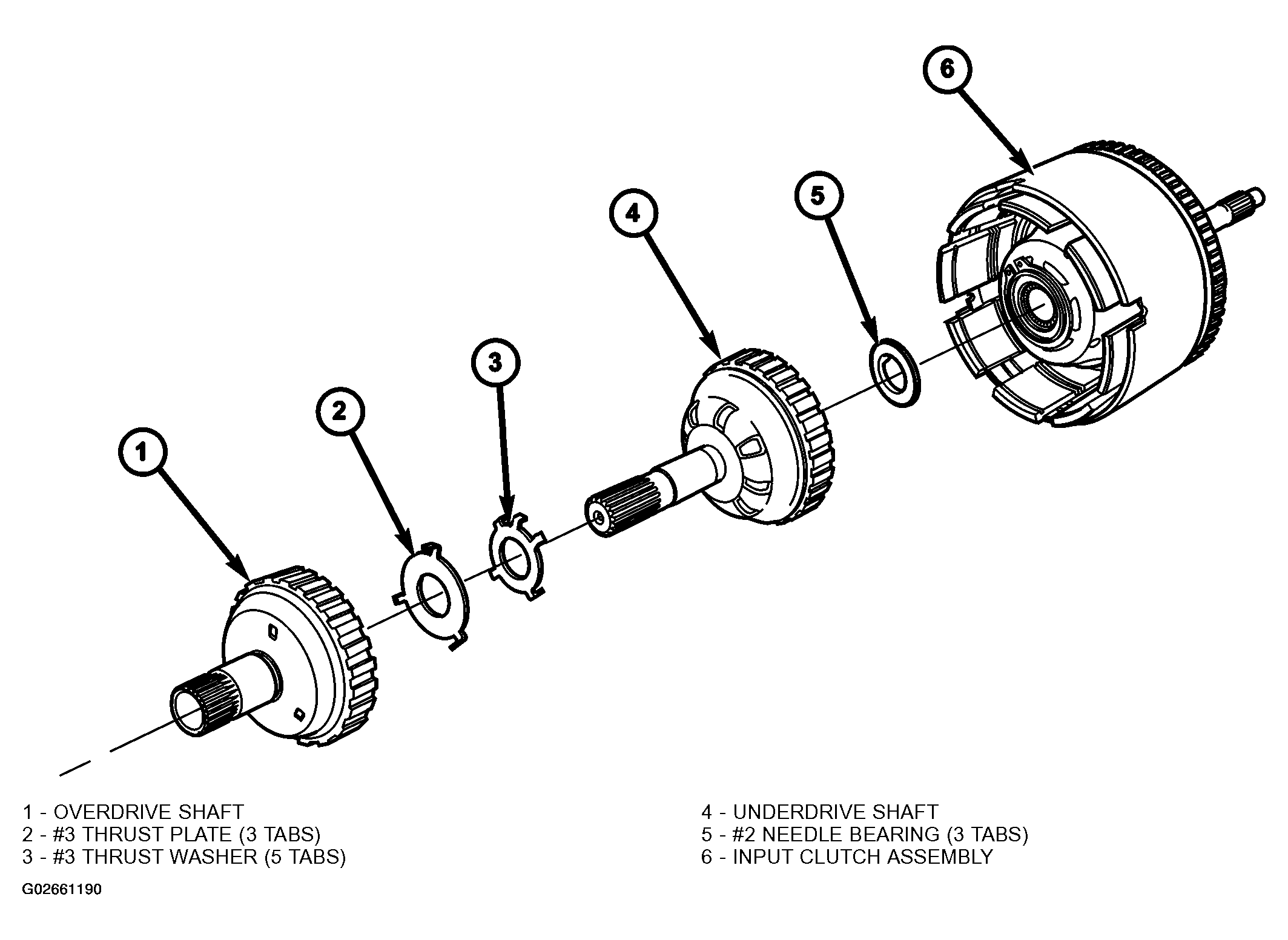

- Remove and inspect OD and UD Shafts, as well as #3 thrust washer and plate, and #2 needle bearing (Fig 6).

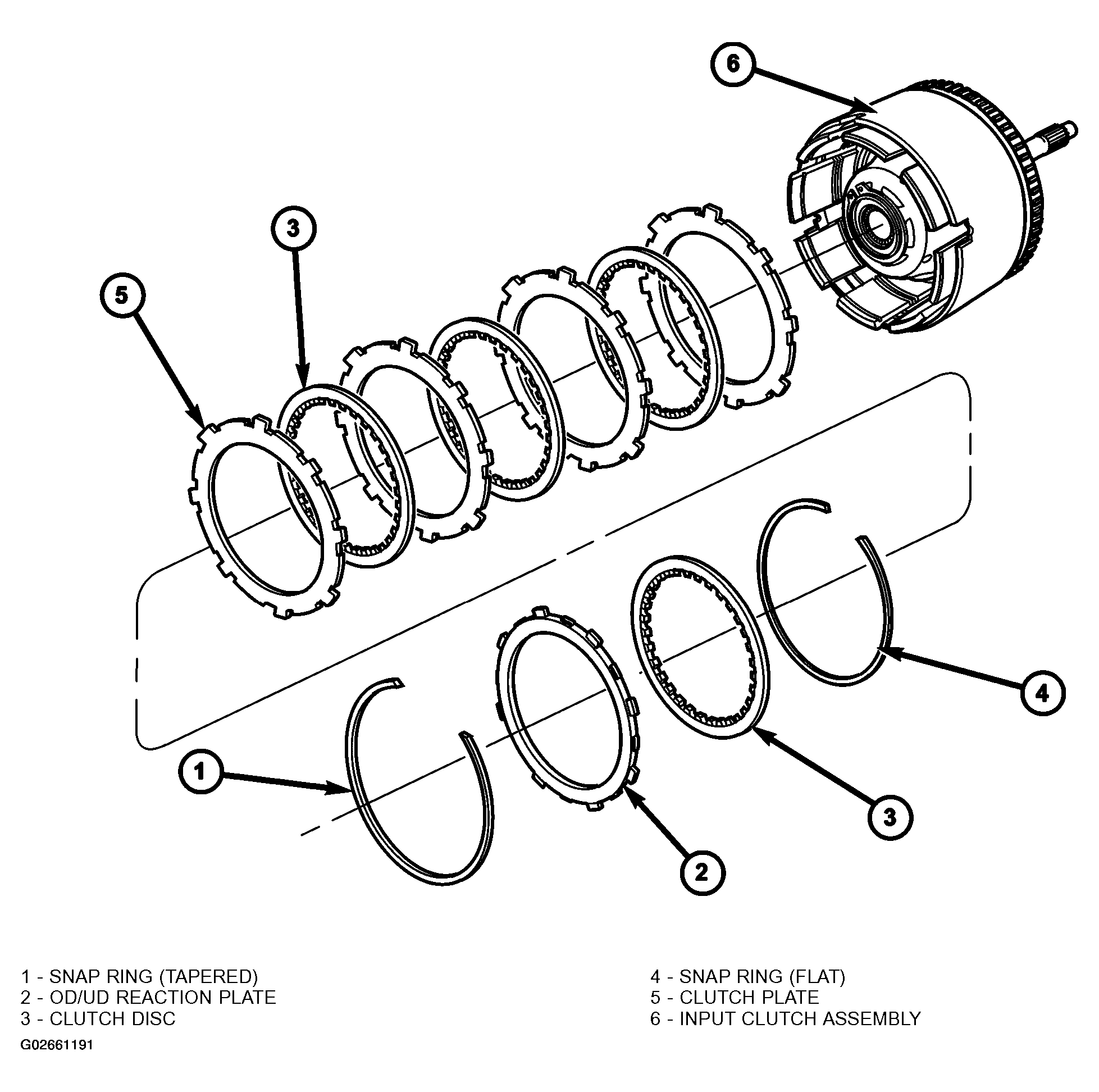

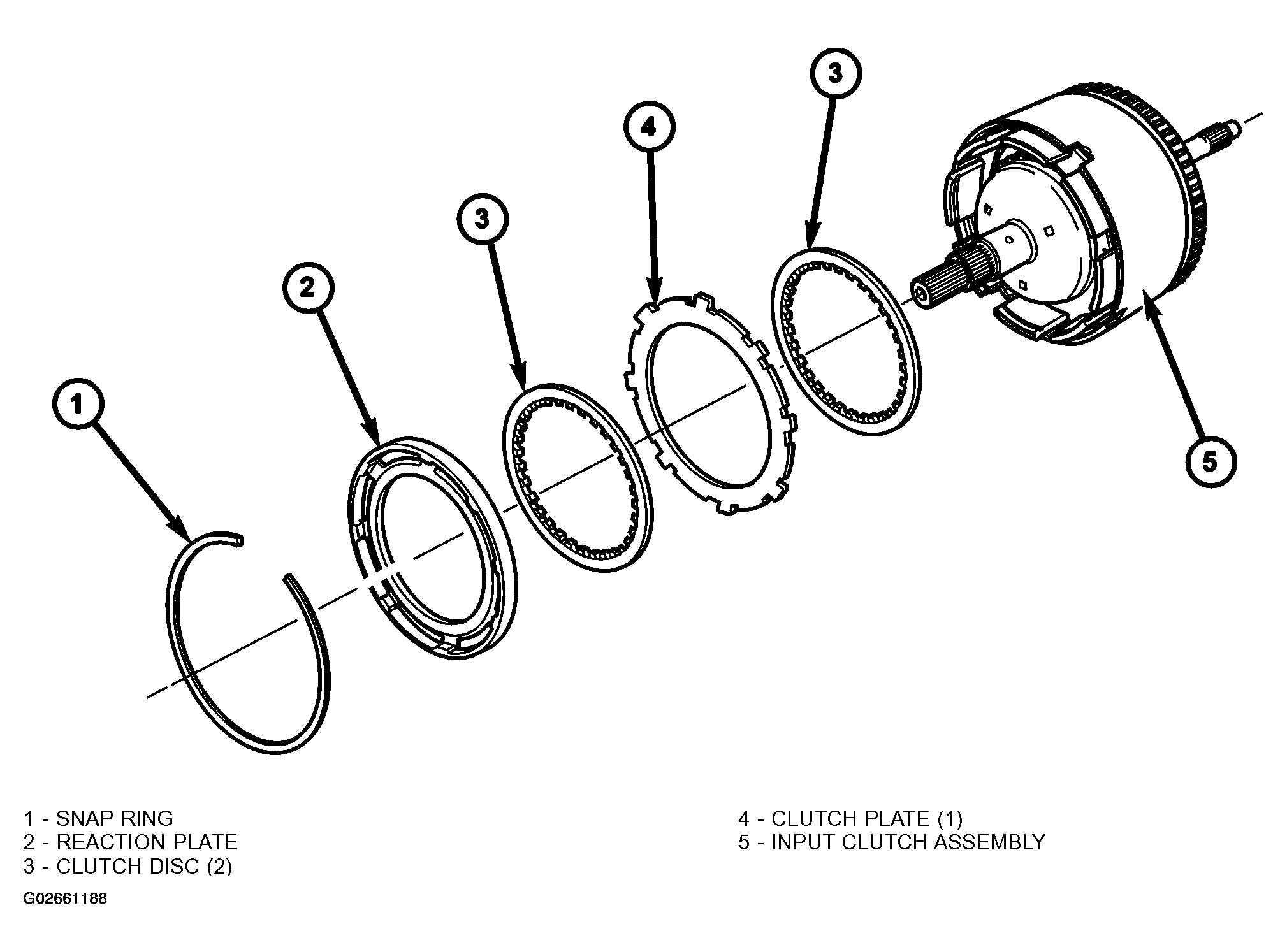

- Remove the OD/UD reaction plate tapered snap ring, reaction plate, and first friction disc (Fig 7).
- Remove the UD clutch flat snap ring and rest of UD clutch pack (Fig 7). Tag clutch pack for assembly identification.

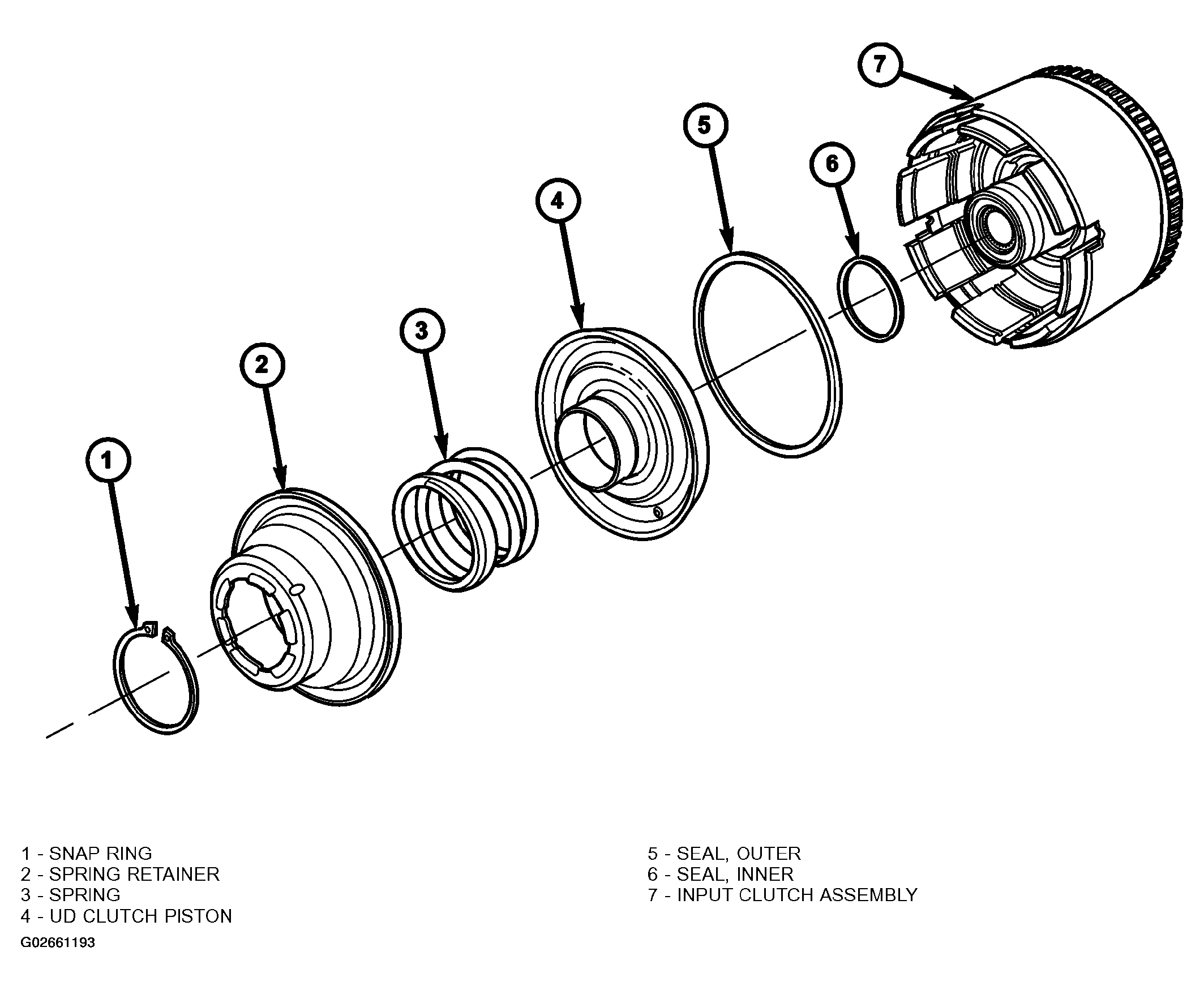

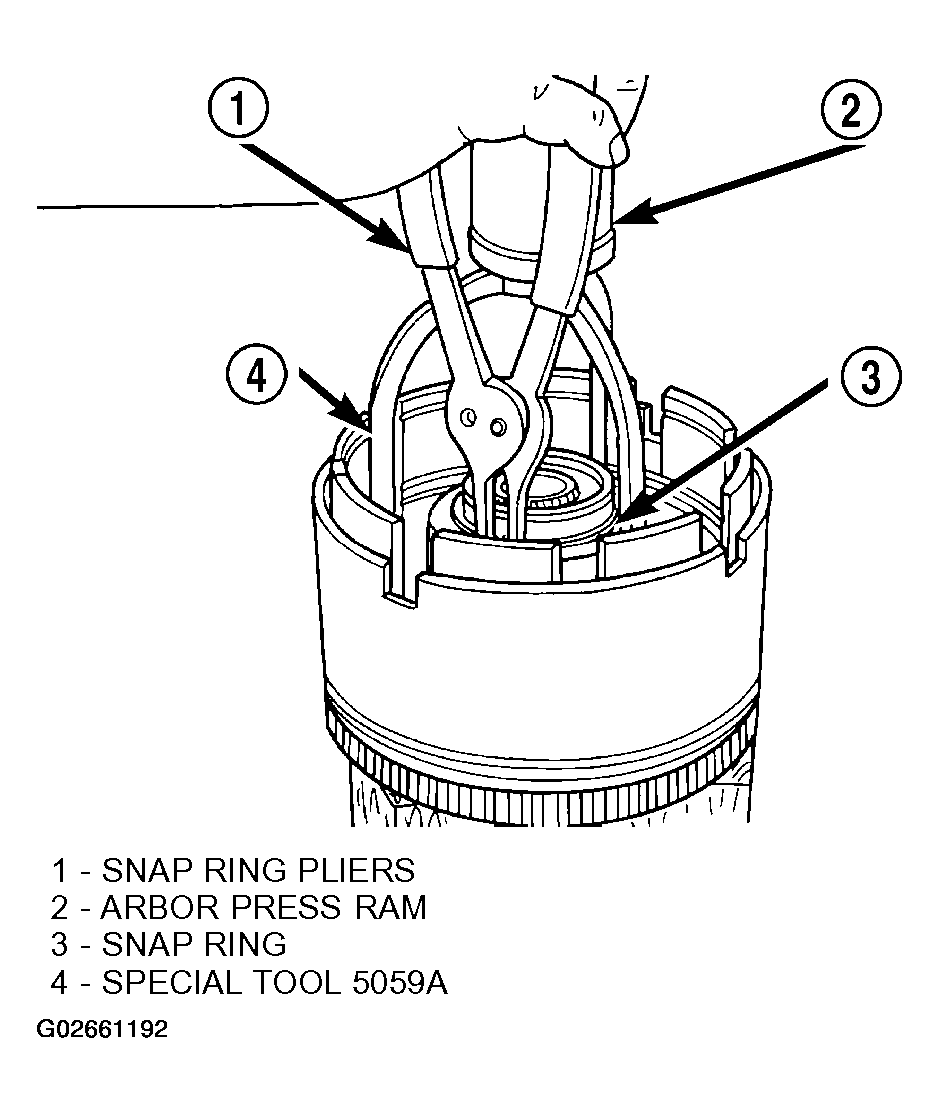

- Using Tool 5059A and an arbor press, compress UD clutch piston/spring enough to remove snap ring (Fig 8) (Fig 9).
- Remove spring retainer, spring, and piston (Fig 9).

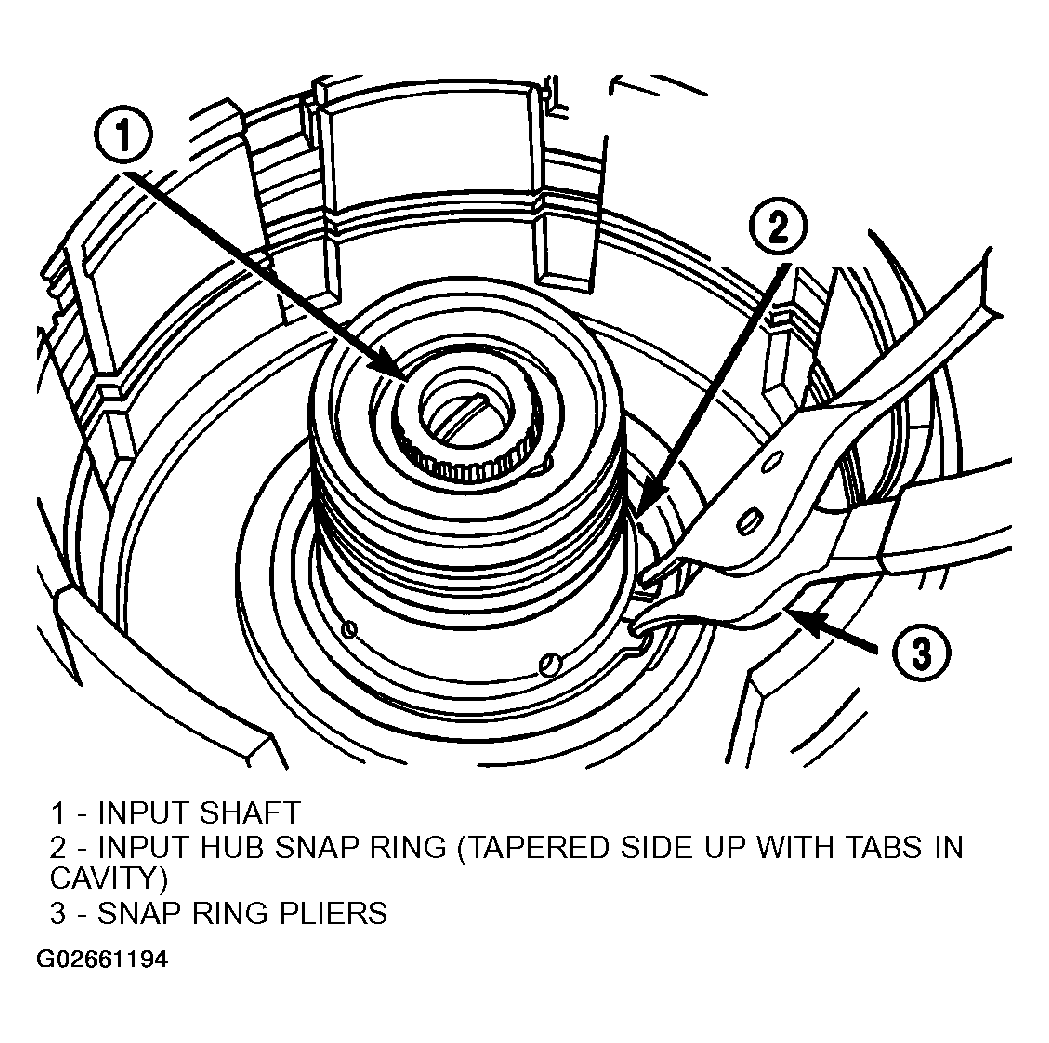

- Remove input hub tapered snap ring (Fig 10) (Fig 11).

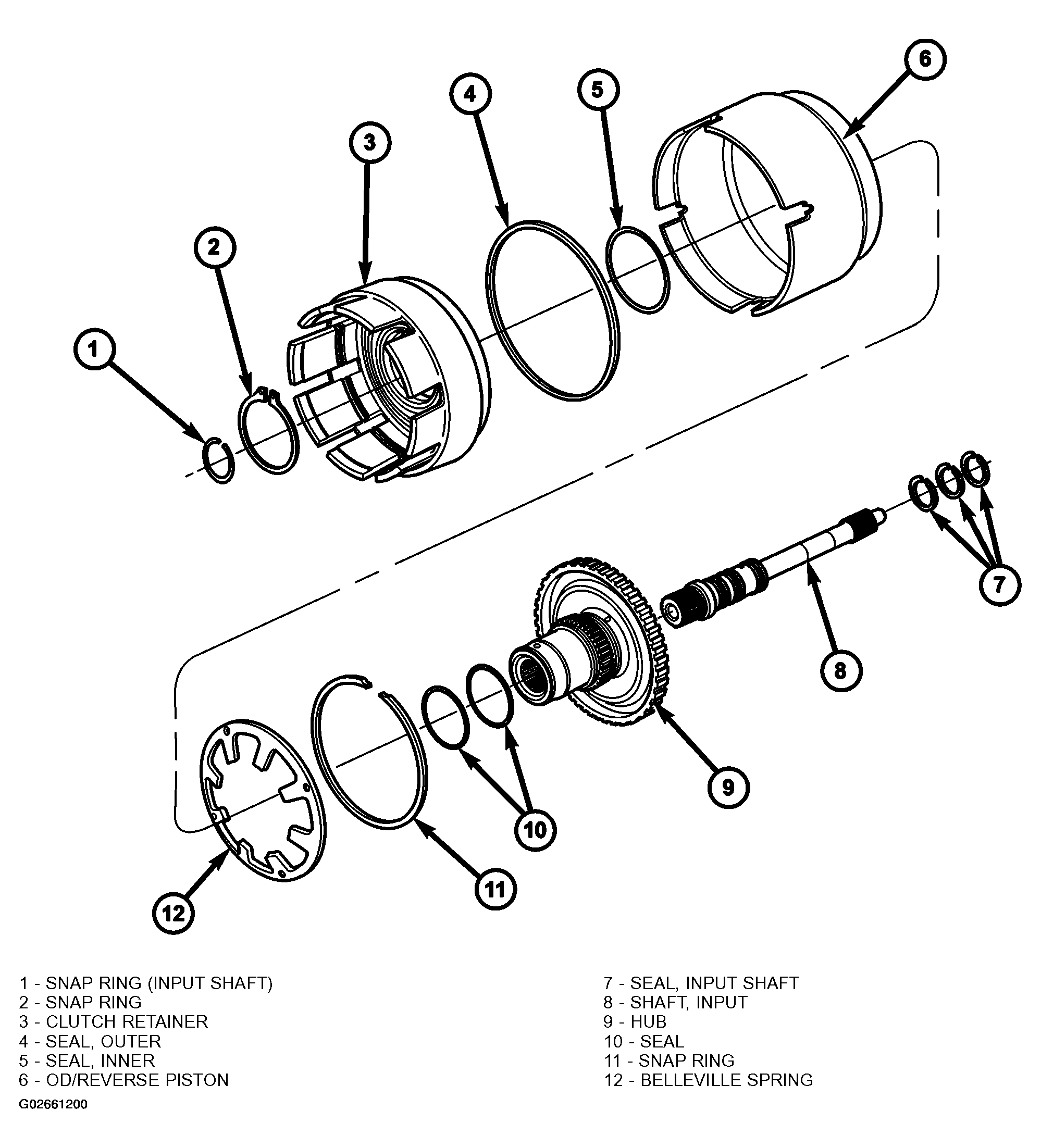

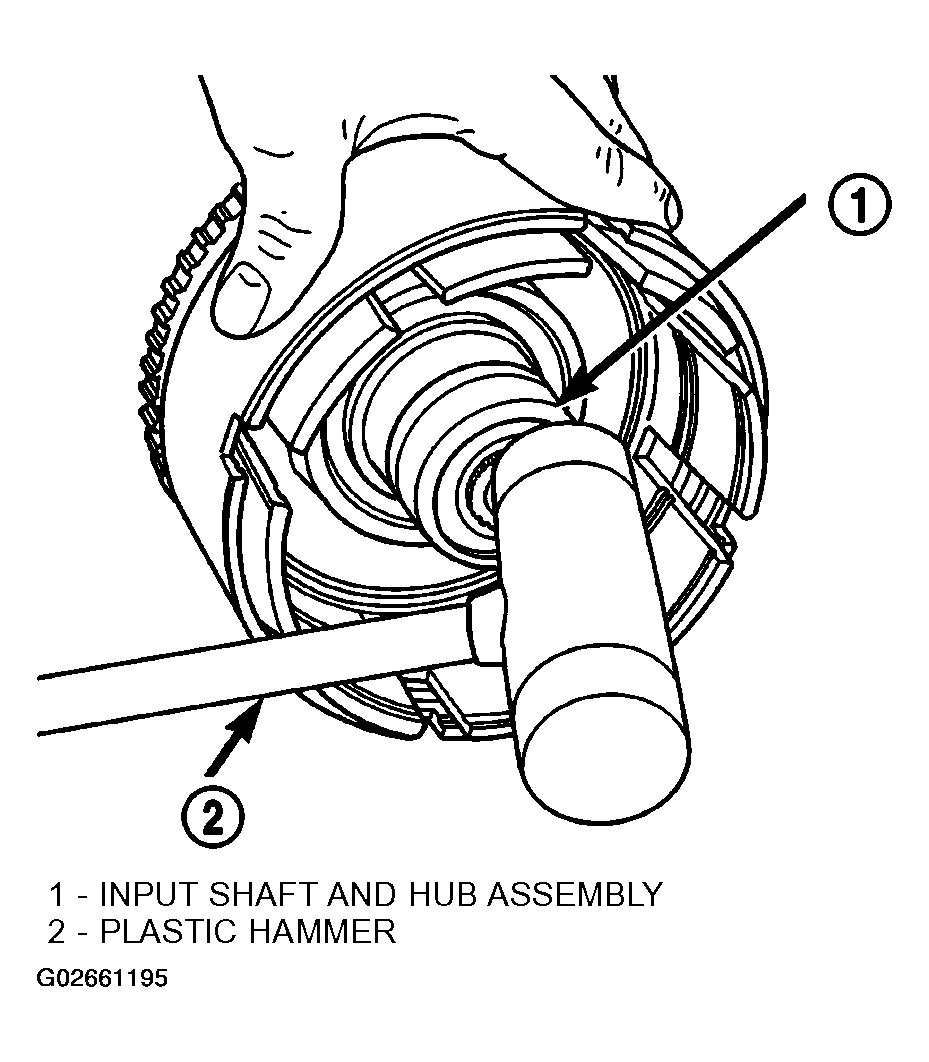

- Tap on input hub with soft faced hammer and separate input hub from OD/Reverse piston and clutch retainer (Fig 12).

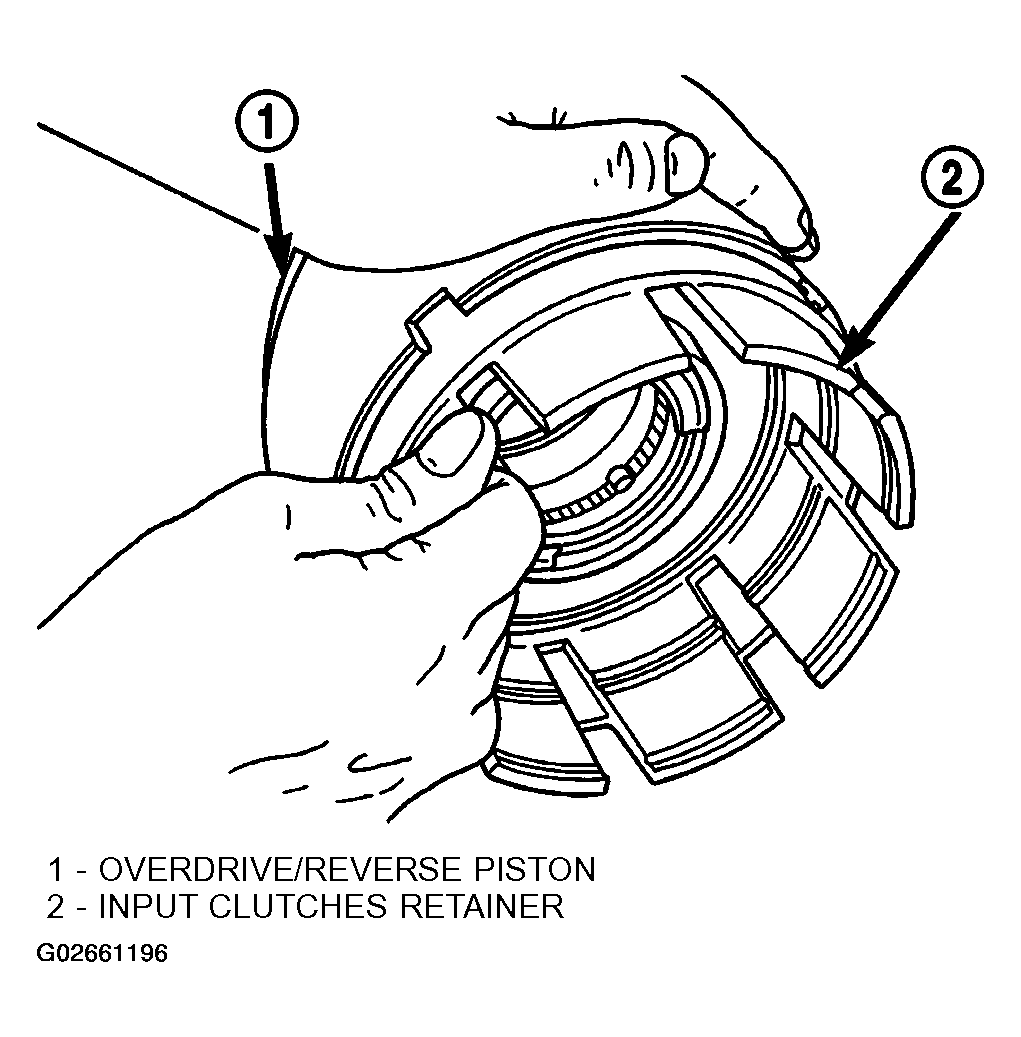

- Separate clutch retainer from OD/Reverse piston (Fig 13).

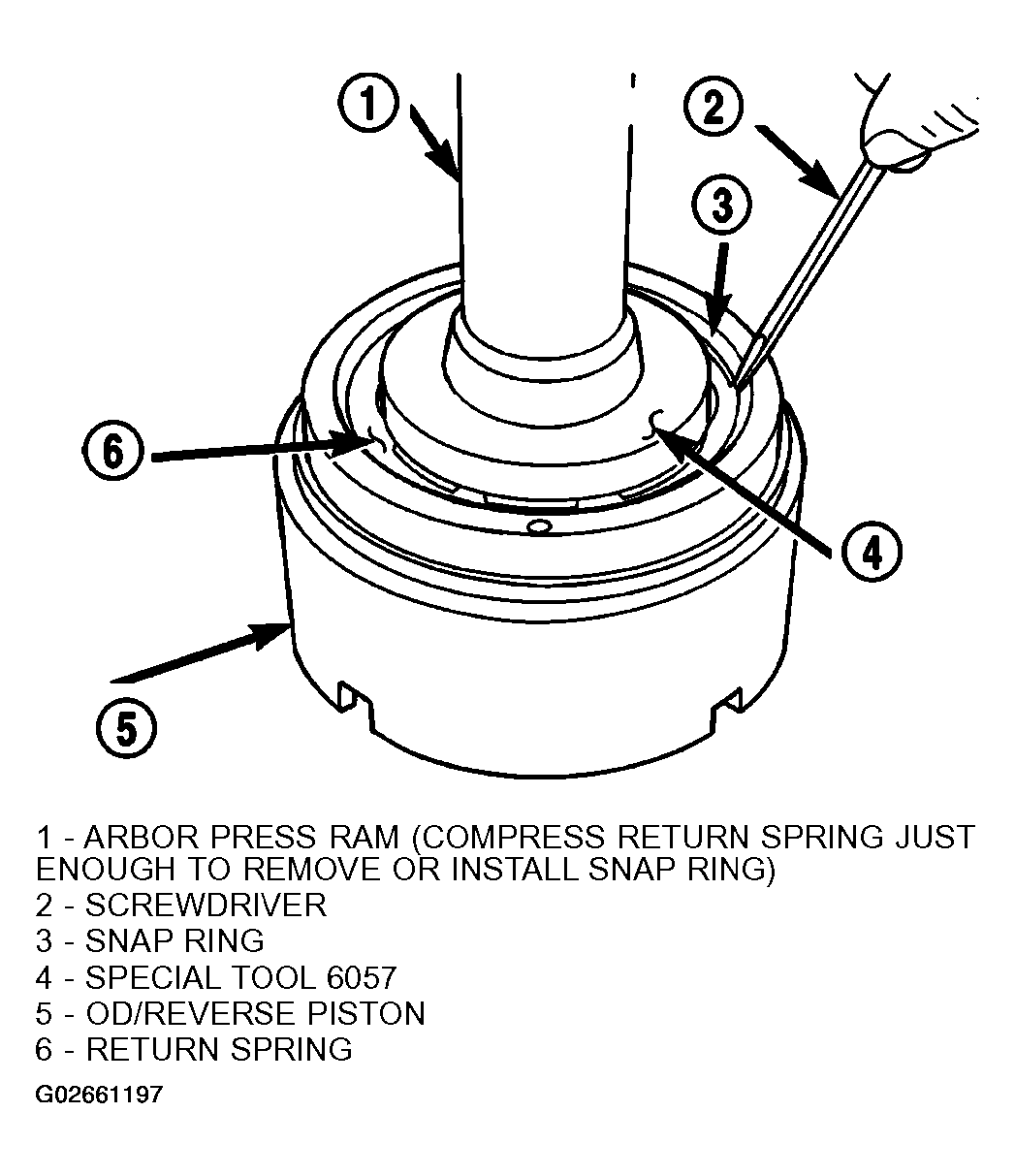

- Using Tool 6057 and an arbor press, compress return OD/Reverse piston return spring just enough to remove snap ring (Fig 14).

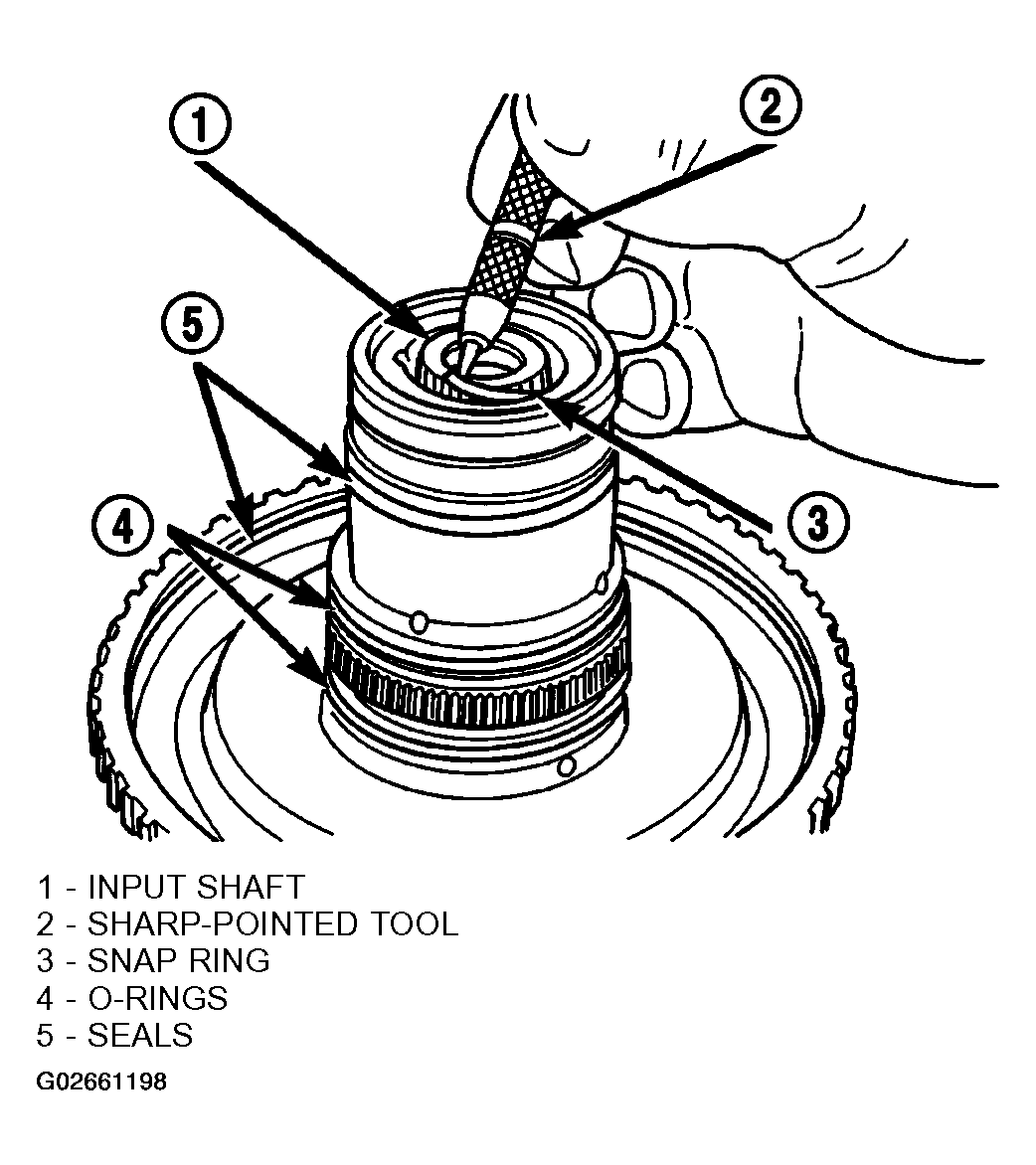

- Remove input shaft to input clutch hub snap ring (Fig 15) (Fig 11).

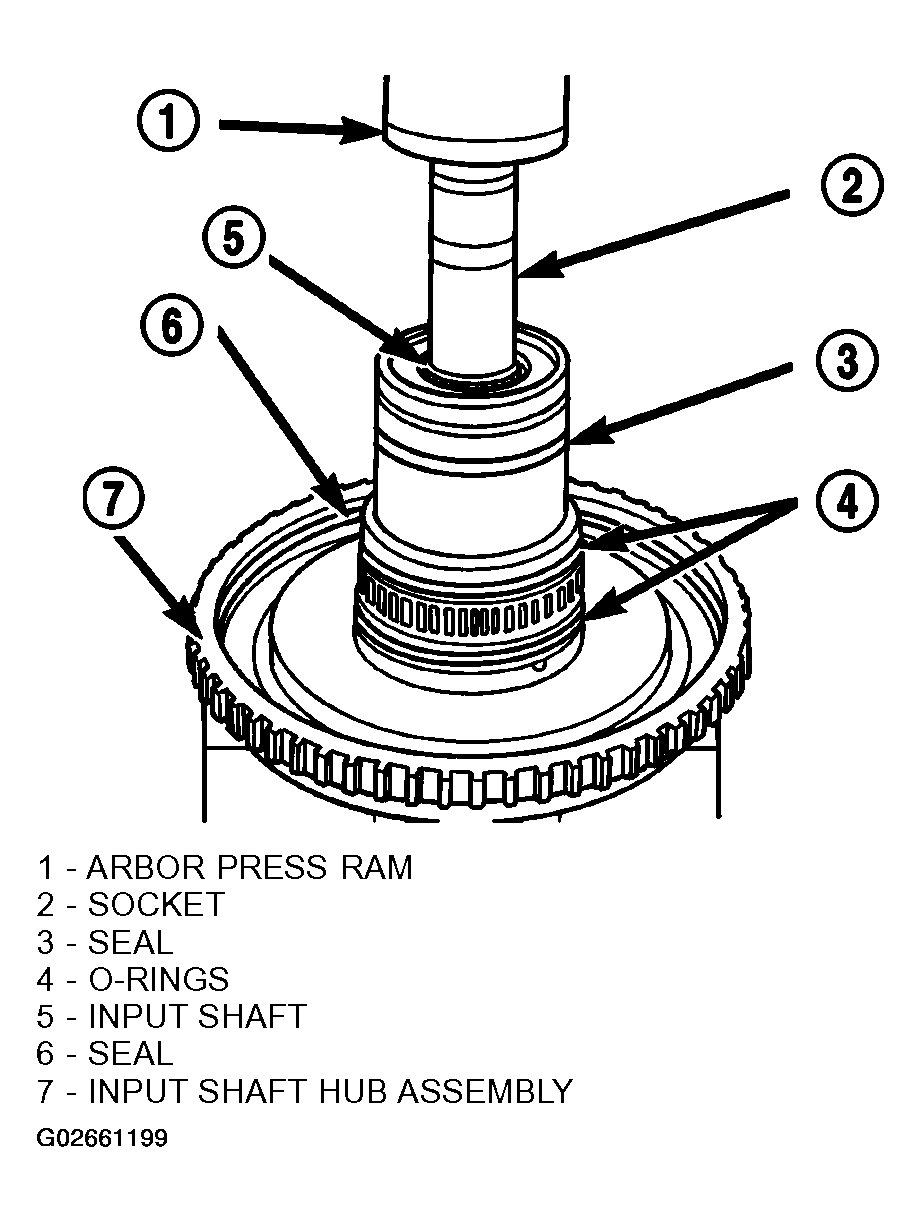

- Using a suitably sized socket and an arbor press, remove input shaft from input shaft hub (Fig 16).
CAUTION:
Compress return spring just enough to remove or install snap ring.
