Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Blower Motor Resistor Block | On right side of firewall. |
| Data Link Connector | Under left side of dash, near kick panel. |

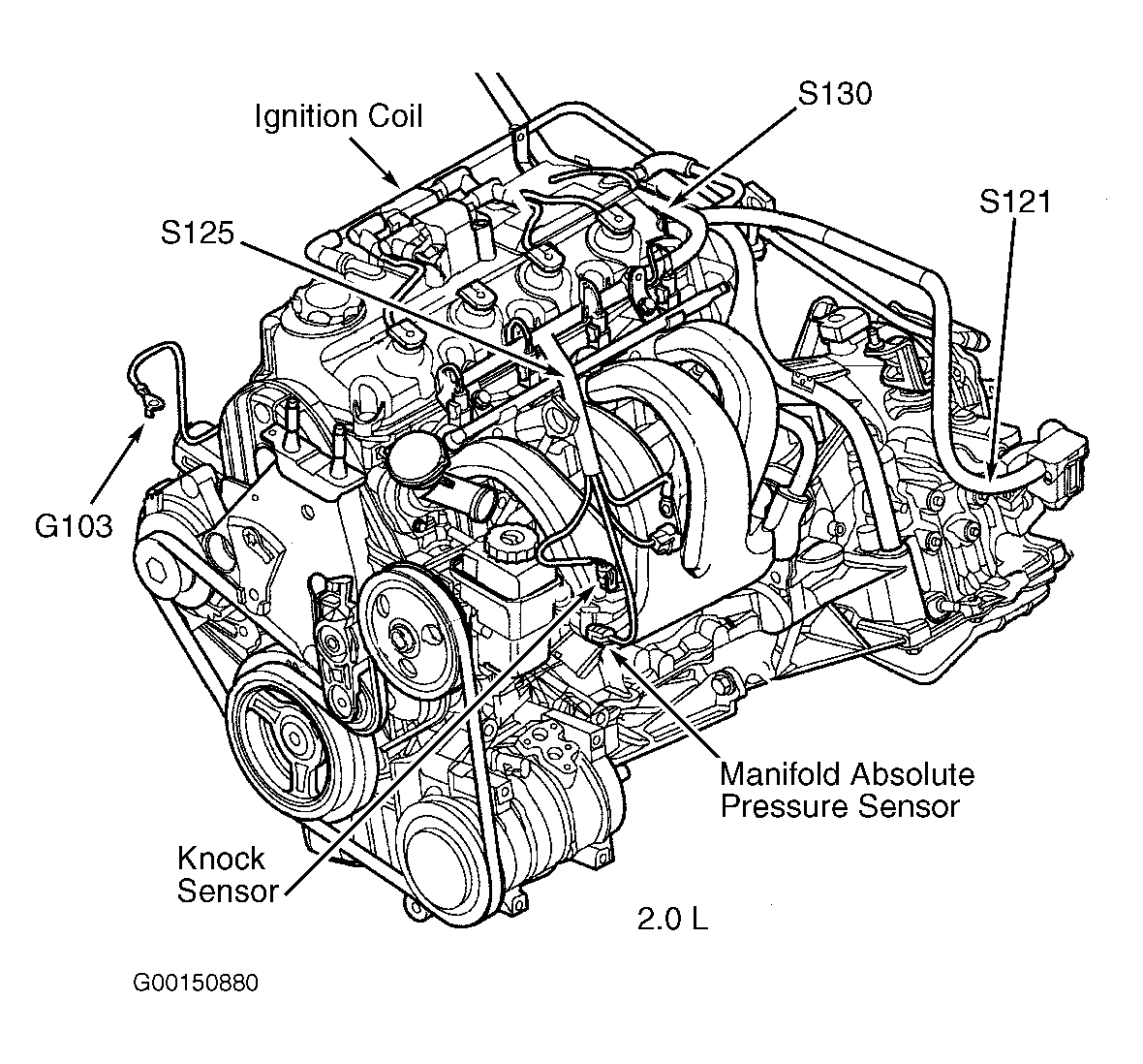

| Ignition Coil (2.0L) | On top of valve cover. See Figure. |

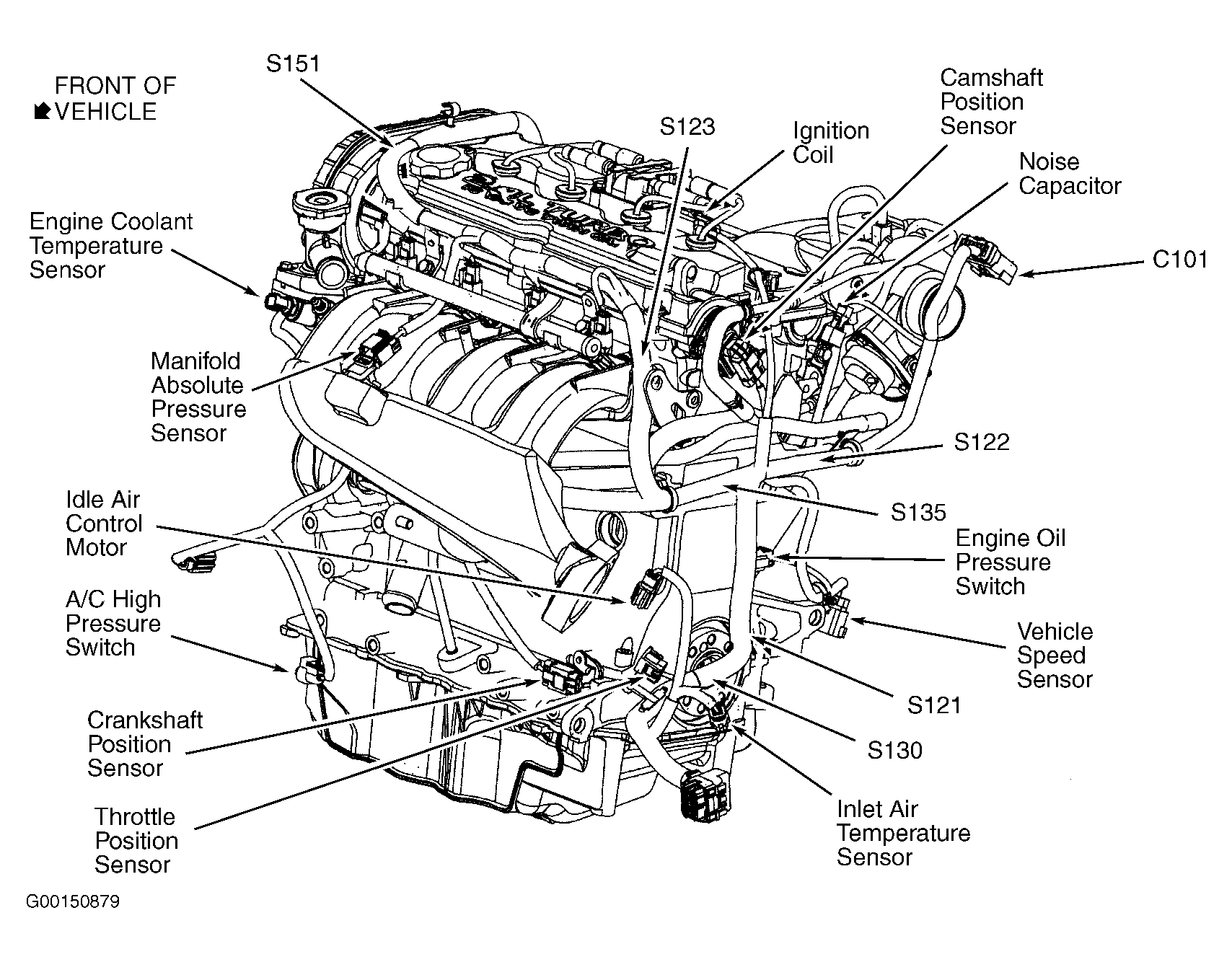

| Ignition Coil (2.4L) | On top of valve cover. See Figure. |
| Noise Capacitor | At top rear of engine. See Figure. |
| PCV Heater | Left rear of engine compartment. |
| RKE Antenna | Under center of dash. |
