Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

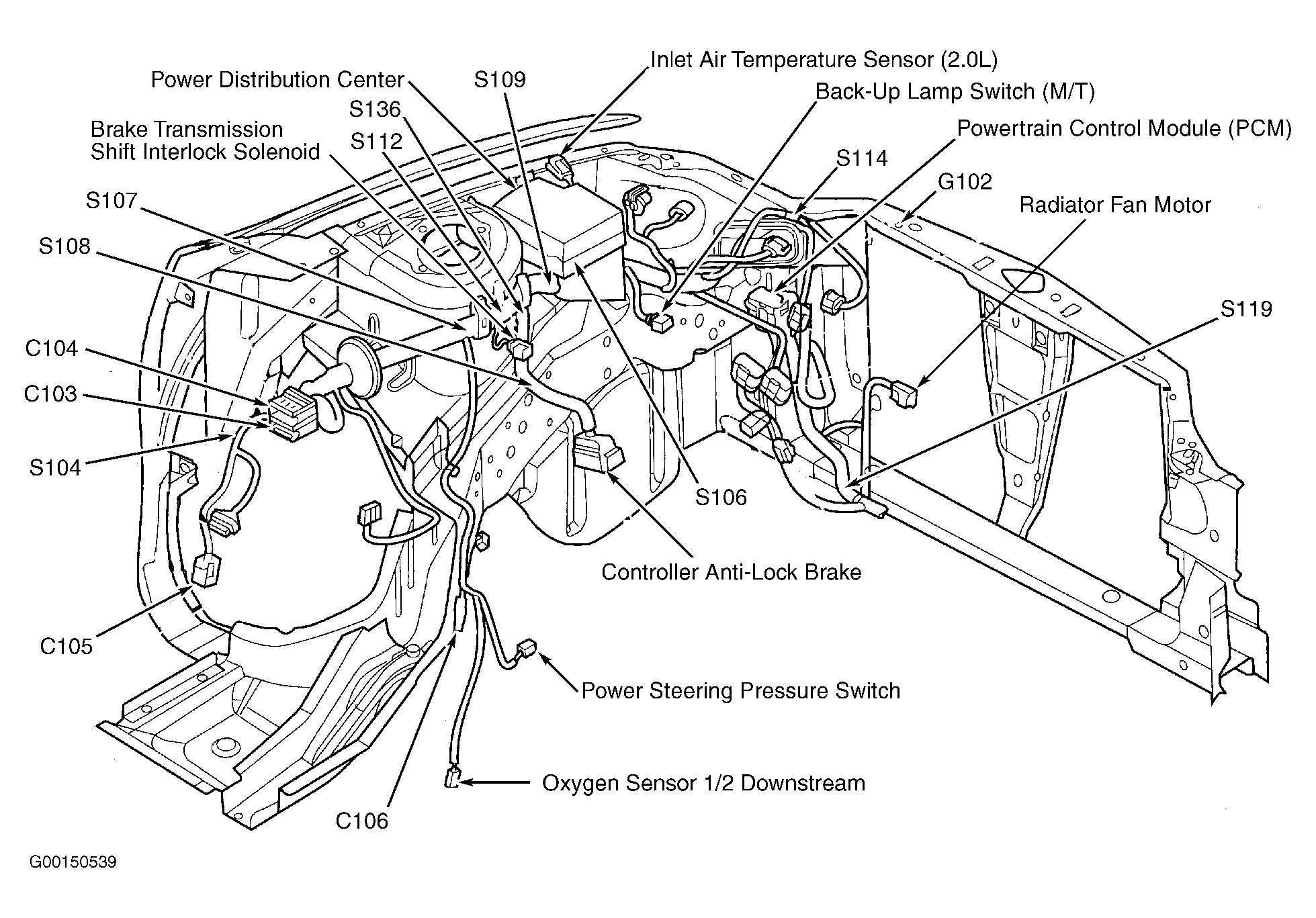

| G102 | At left front of engine compartment. See Figure. |
| G103 | At right front of engine compartment. |
| G104 | Near starter motor. |
| G105 | Near negative battery terminal. |
| G106 | At left front of engine compartment. |
| G108 | At left front of engine compartment. |
| G201 | Behind lower center of dash. |
| G203 | Behind lower center of dash. |
| G301 | Behind left inner rear quarterpanel. |
| G302 | Behind right inner rear quarterpanel. |
| G304 | At center of deck lid. |
