EVAP Canister

EVAP canister is located between fuel tank and right rear wheel. See Fig 1 or Fig 2 . Check EVAP canister for loose, missing, cracked or broken connections and parts. Repair or replace as necessary. No liquid should be in canister.

Fig 1: Locating Evaporative Emissions Canister (2.0L)

Courtesy of DAIMLERCHRYSLER CORP.

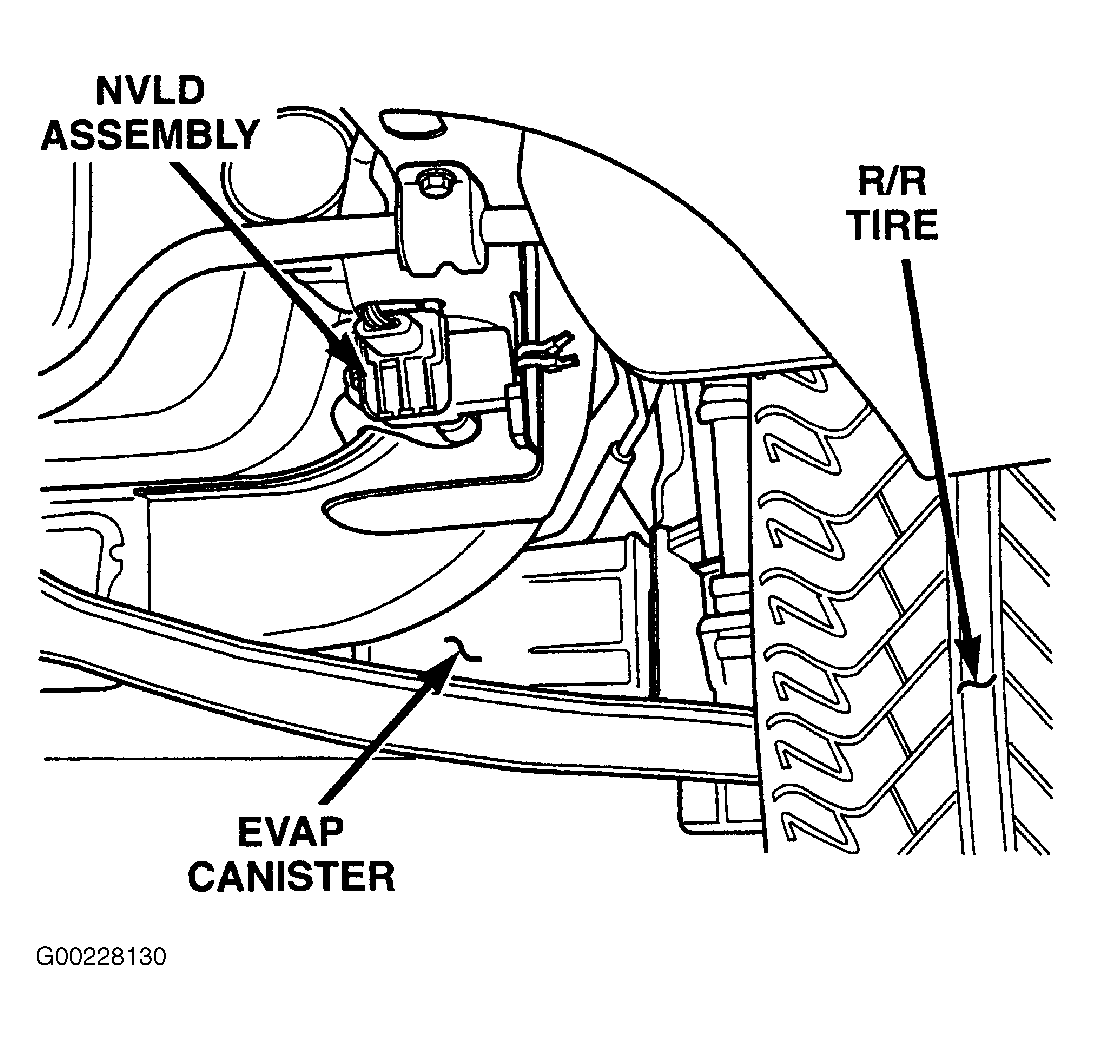

Fig 2: Locating EVAP Canister & NVLD Assembly (2.4L)

Courtesy of CHRYSLER CORP.
