Connector Identification

NOTE: See Fig 1 - Fig 43 for connector identification.
Fig 1: Identifying Ambient Temperature Sensor Harness Connector Terminals
G00209199Courtesy of CHRYSLER CORP.
Fig 2: Identifying Battery Temperature Sensor Harness Connector Terminals
G00209201Courtesy of CHRYSLER CORP.
Fig 3: Identifying Brakelight Switch Harness Connector Terminals
G00088559Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Camshaft Position Sensor Harness Connector Terminals
G00209202Courtesy of CHRYSLER CORP.
Fig 5: Identifying Crankshaft Position Sensor Harness Connector Terminals
G00209200Courtesy of CHRYSLER CORP.
Fig 6: Identifying Clutch Upstop Switch Harness Connector Terminals
G00088560Courtesy of DAIMLERCHRYSLER CORP.

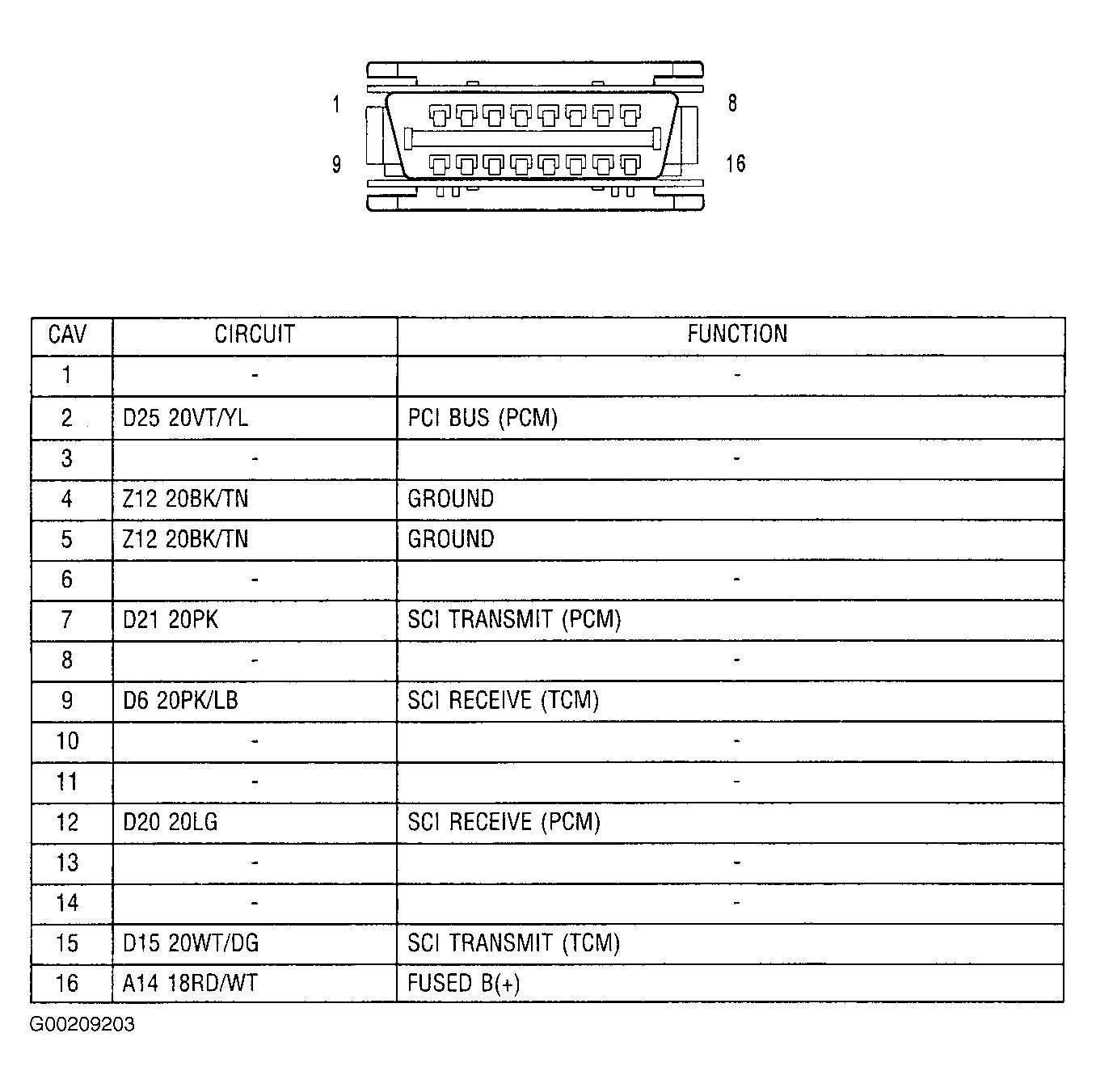

Fig 7: Identifying Data Link Connector Harness Connector Terminals
G00209203Courtesy of CHRYSLER CORP.
Fig 8: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
G00209204Courtesy of CHRYSLER CORP.
Fig 9: Identifying EVAP/Purge Solenoid Harness Connector Terminals
G00209206Courtesy of CHRYSLER CORP.
Fig 10: Identifying Evaporative Emissions Purge Solenoid Terminals (Component Side)
G00088565Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Identifying Fuel Injector No. 1 Harness Connector Terminals
G00228102Courtesy of CHRYSLER CORP.
Fig 12: Identifying Fuel Injector No. 2 Harness Connector Terminals
G00228103Courtesy of CHRYSLER CORP.
Fig 13: Identifying Fuel Injector No. 3 Harness Connector Terminals
G00228104Courtesy of CHRYSLER CORP.
Fig 14: Identifying Fuel Injector No. 4 Harness Connector Terminals
G00228105Courtesy of CHRYSLER CORP.
Fig 15: Identifying Fuel Pump Module Harness Connector Terminals
G00209207Courtesy of CHRYSLER CORP.
Fig 16: Identifying Generator Harness Connector Terminals
G00209208Courtesy of CHRYSLER CORP.

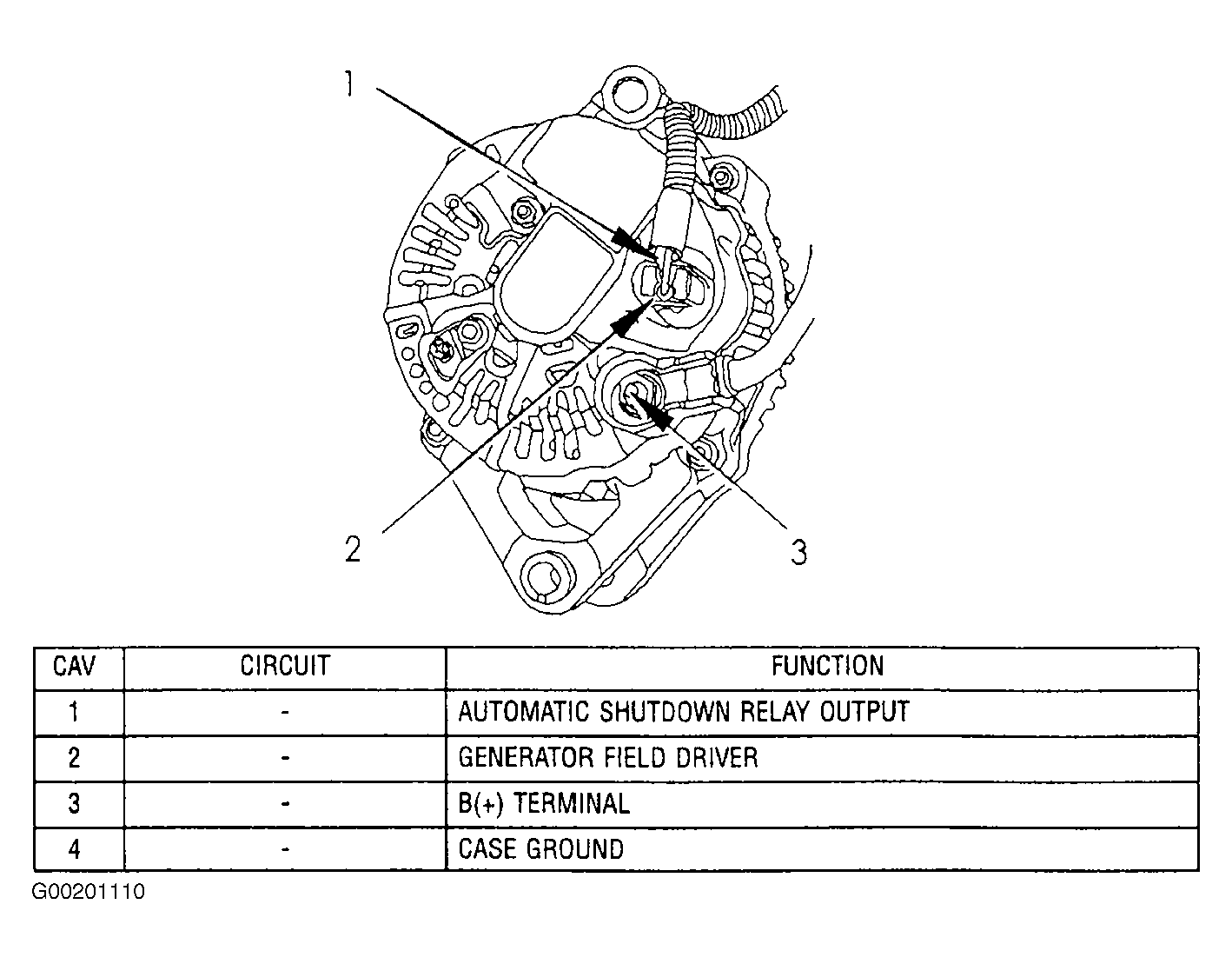

Fig 17: Identifying Generator Side Connections
G00201110Courtesy of CHRYSLER CORP.
Fig 18: Identifying Idle Air Control Motor Harness Connector Terminals
G00228106Courtesy of CHRYSLER CORP.

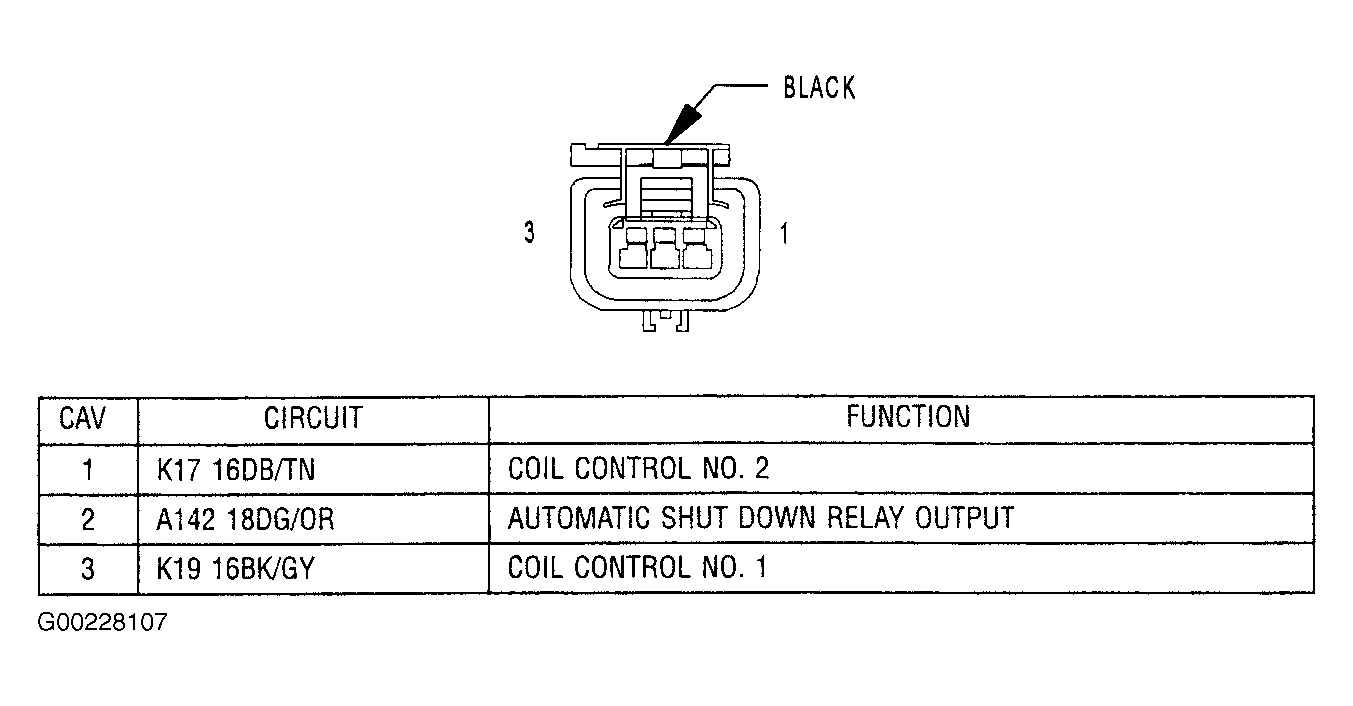

Fig 19: Identifying Ignition Coil Harness Connector Terminals
G00228107Courtesy of CHRYSLER CORP.
Fig 20: Identifying Inlet Air Temperature Sensor Harness Connector Terminals
G00228108Courtesy of CHRYSLER CORP.

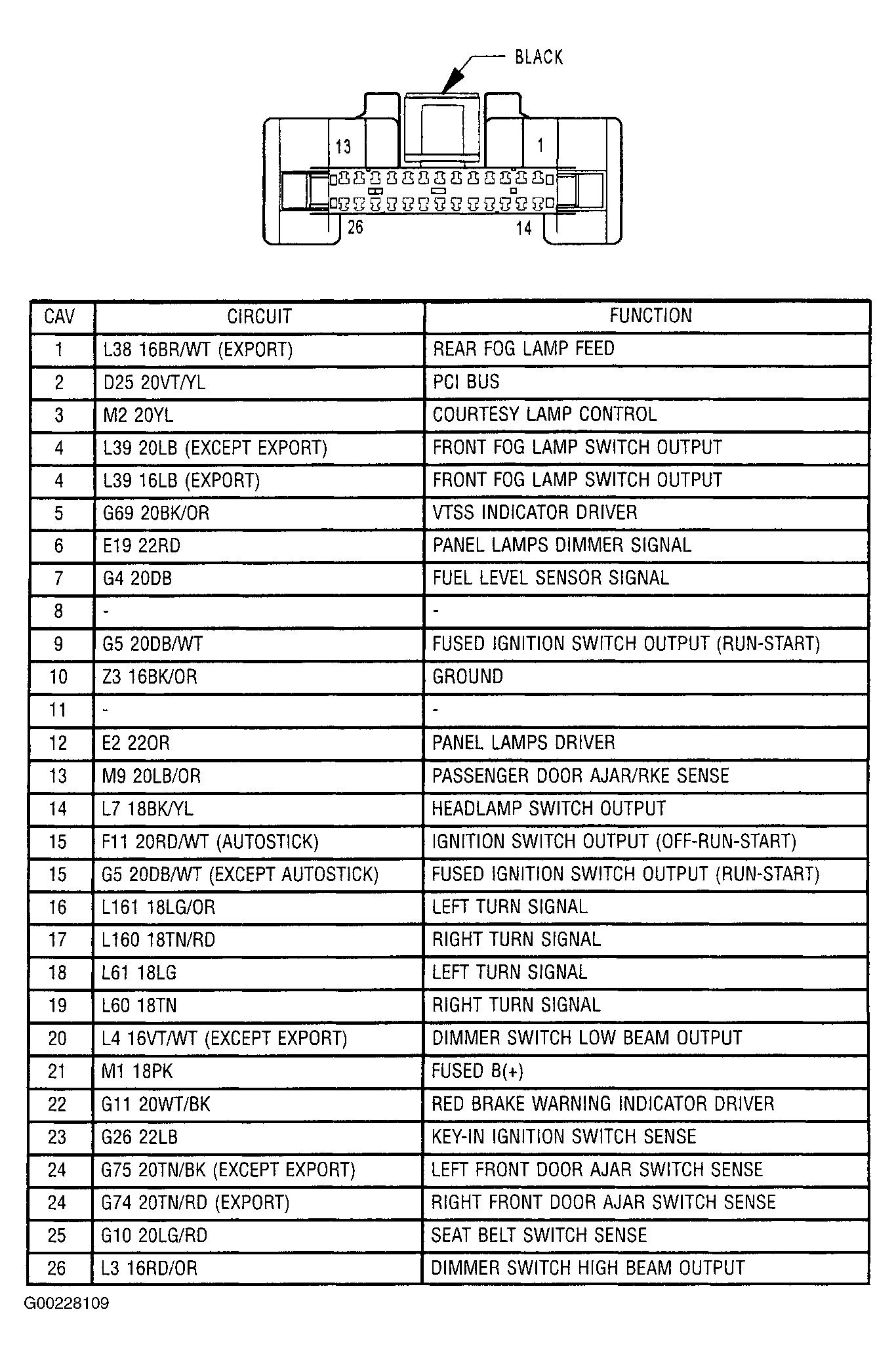

Fig 21: Identifying Instrument Cluster Harness Connector Terminals
G00228109Courtesy of CHRYSLER CORP.
Fig 22: Identifying Knock Sensor Harness Connector Terminals
G00201134Courtesy of CHRYSLER CORP.

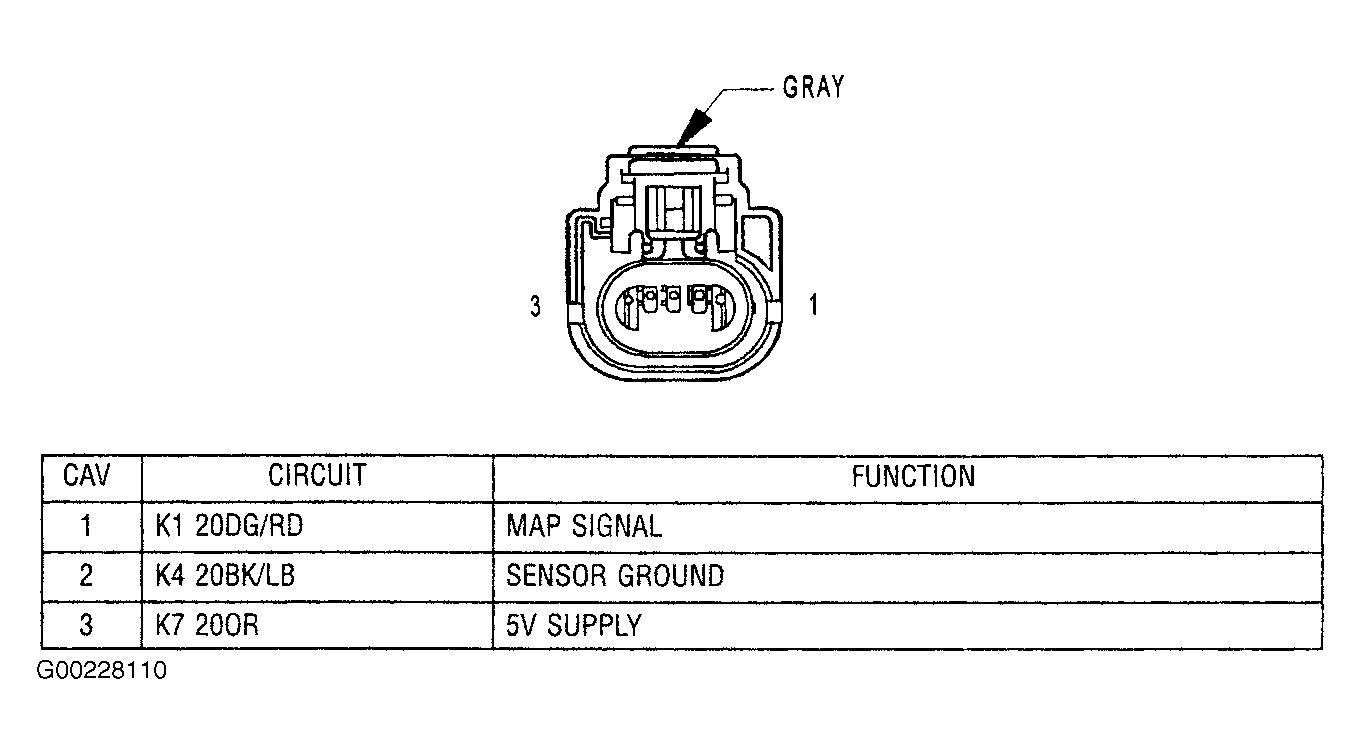

Fig 23: Identifying MAP Sensor Harness Connector Terminals
G00228110Courtesy of CHRYSLER CORP.
Fig 24: Identifying Manifold Tuning Valve Solenoid Harness Connector Terminals
G00228111Courtesy of CHRYSLER CORP.

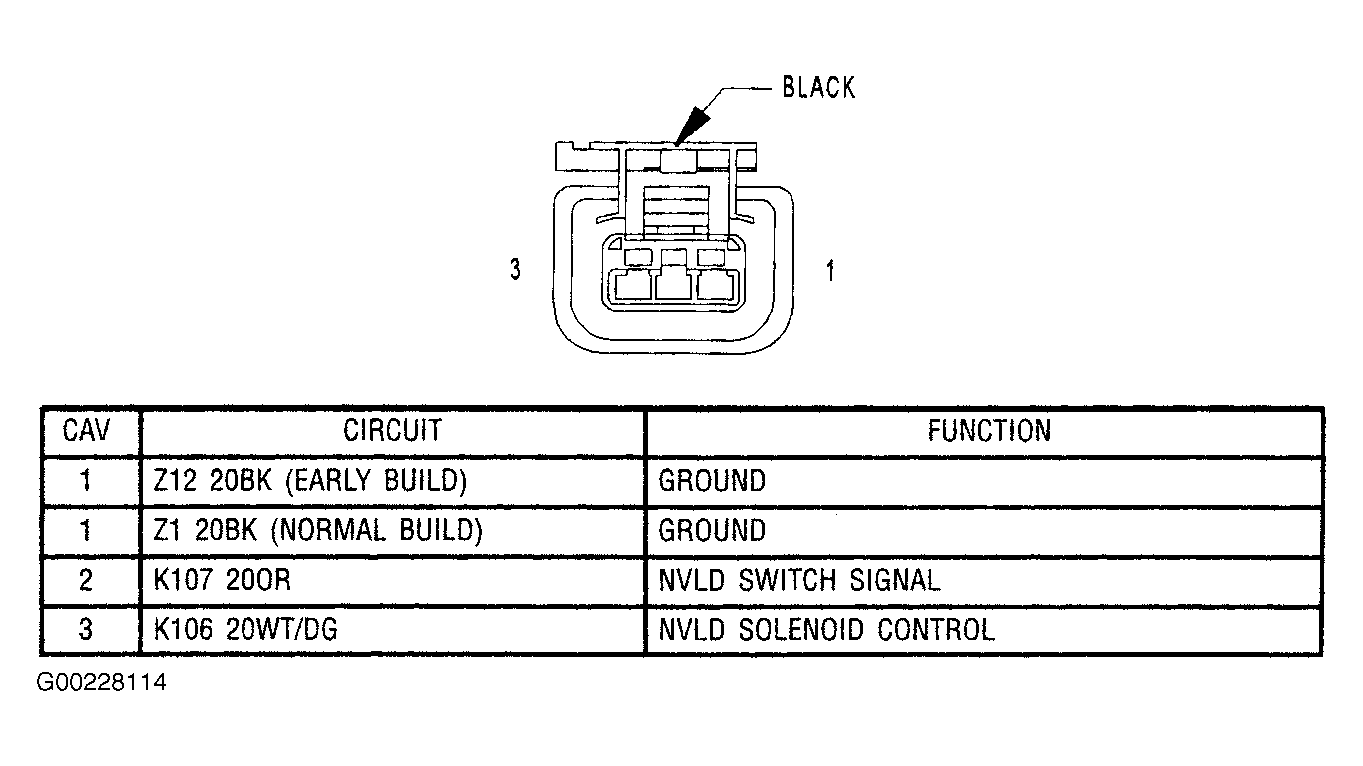

Fig 25: Identifying NVLD Assembly Harness Connector Terminals
G00228114Courtesy of CHRYSLER CORP.
Fig 26: Identifying Oil Pressure Switch Harness Connector Terminals
G00209205Courtesy of CHRYSLER CORP.

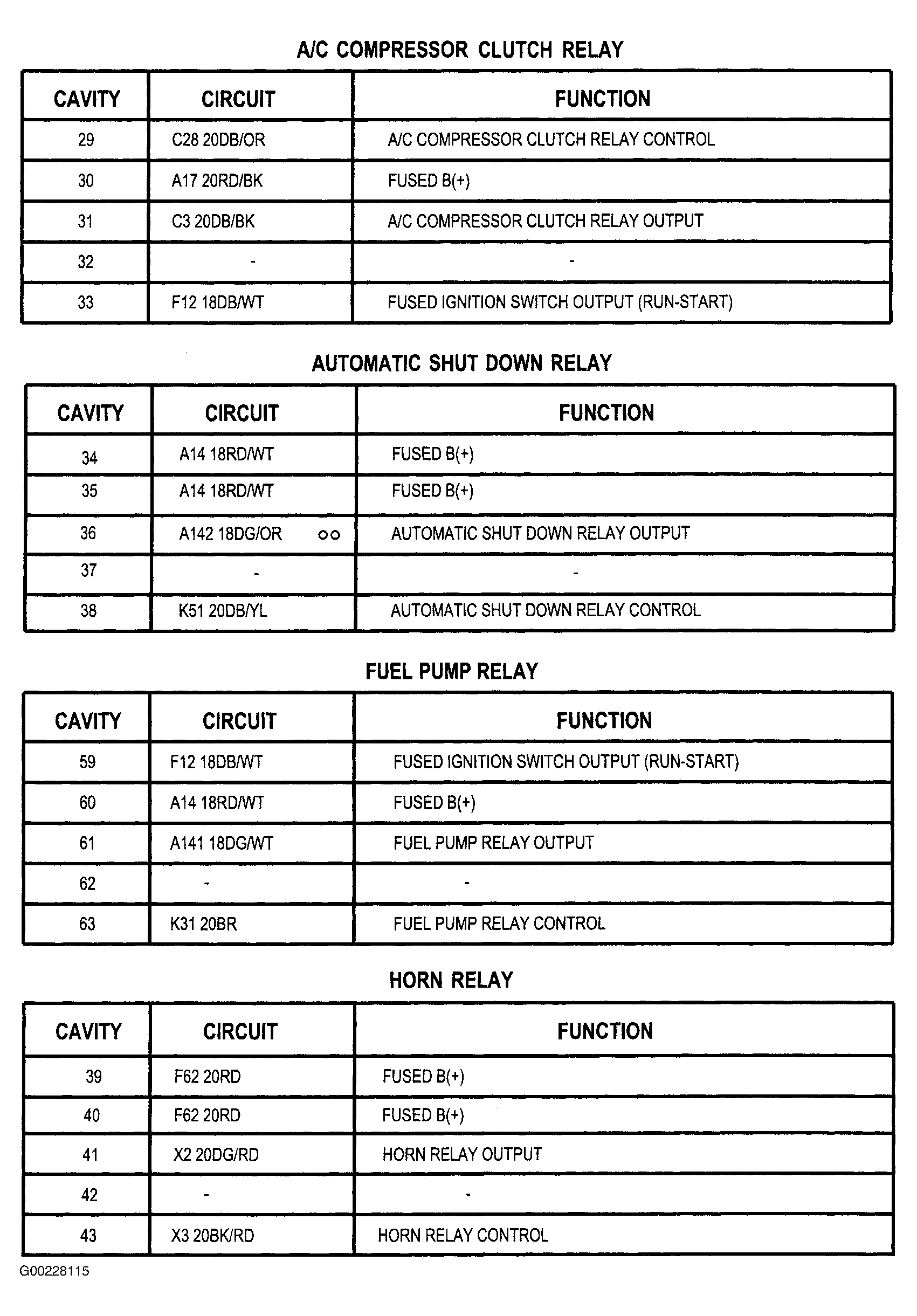

Fig 27: Identifying Power Distribution Center Circuits (1 Of 2)
G00228115Courtesy of CHRYSLER CORP.

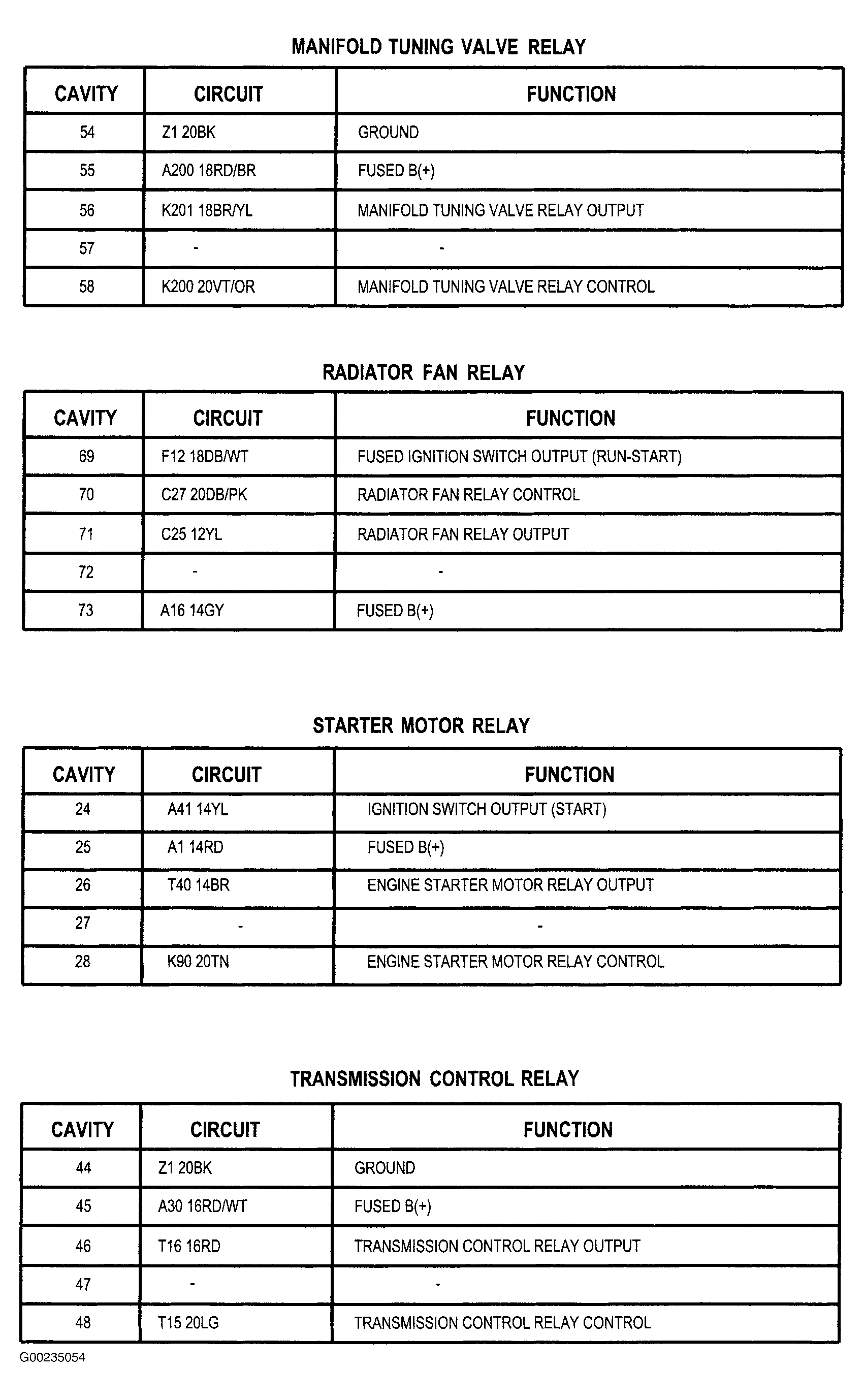

Fig 28: Identifying Power Distribution Switch Circuits (2 Of 2)
G00235054Courtesy of CHRYSLER CORP.
Fig 29: Identifying Power Distribution Center Components (Front View)
G00088577Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Identifying Power Distribution Center Terminals (Rear View)
G00129167Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Identifying Power Steering Pressure Switch Harness Connector Terminals
G00228116Courtesy of CHRYSLER CORP.
Fig 32: Identifying Powertrain Control Module C1 Harness Connector Terminals
G00228117Courtesy of CHRYSLER CORP.

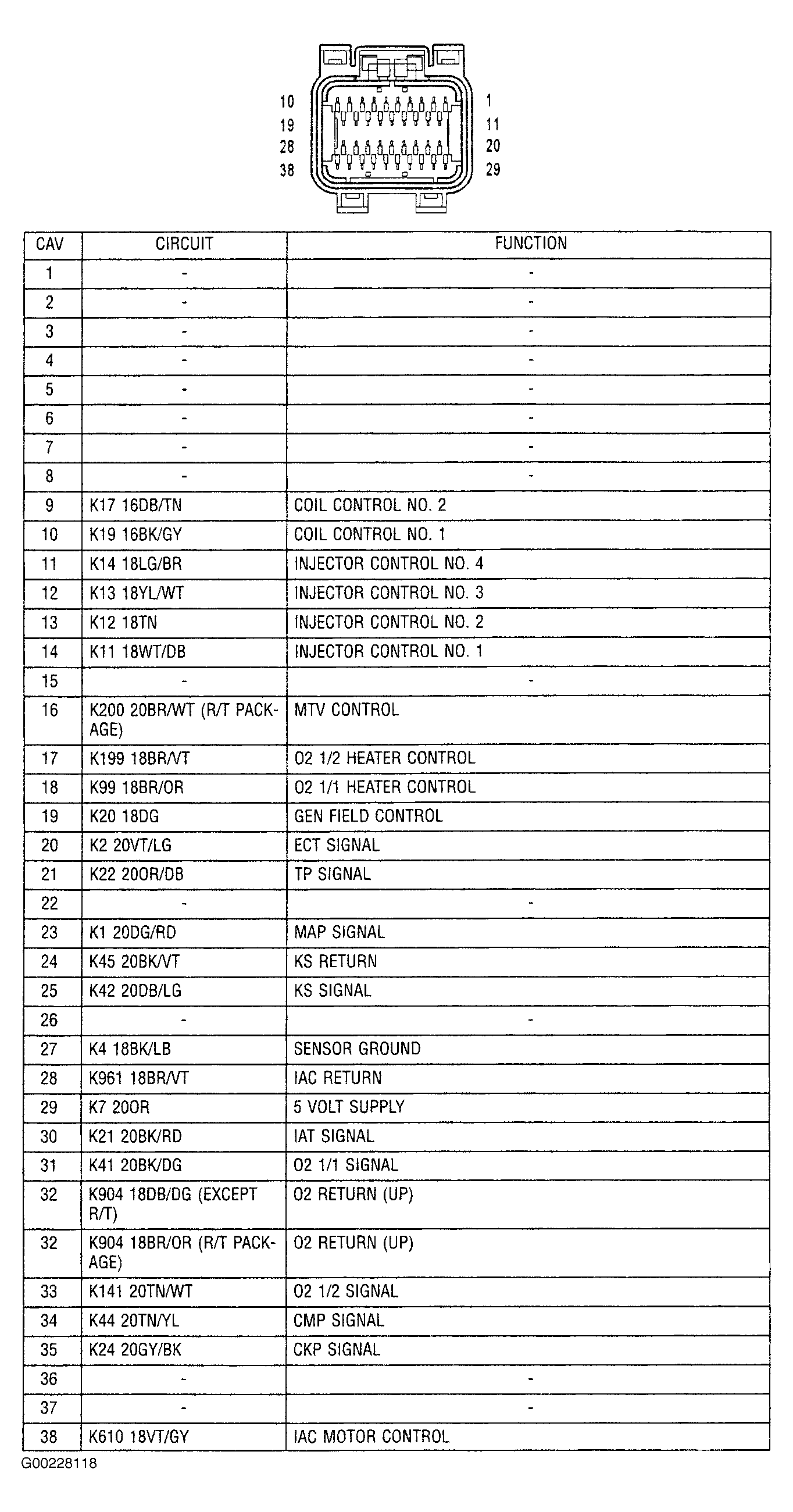

Fig 33: Identifying Powertrain Control Module C2 Harness Connector Terminals
G00228118Courtesy of CHRYSLER CORP.

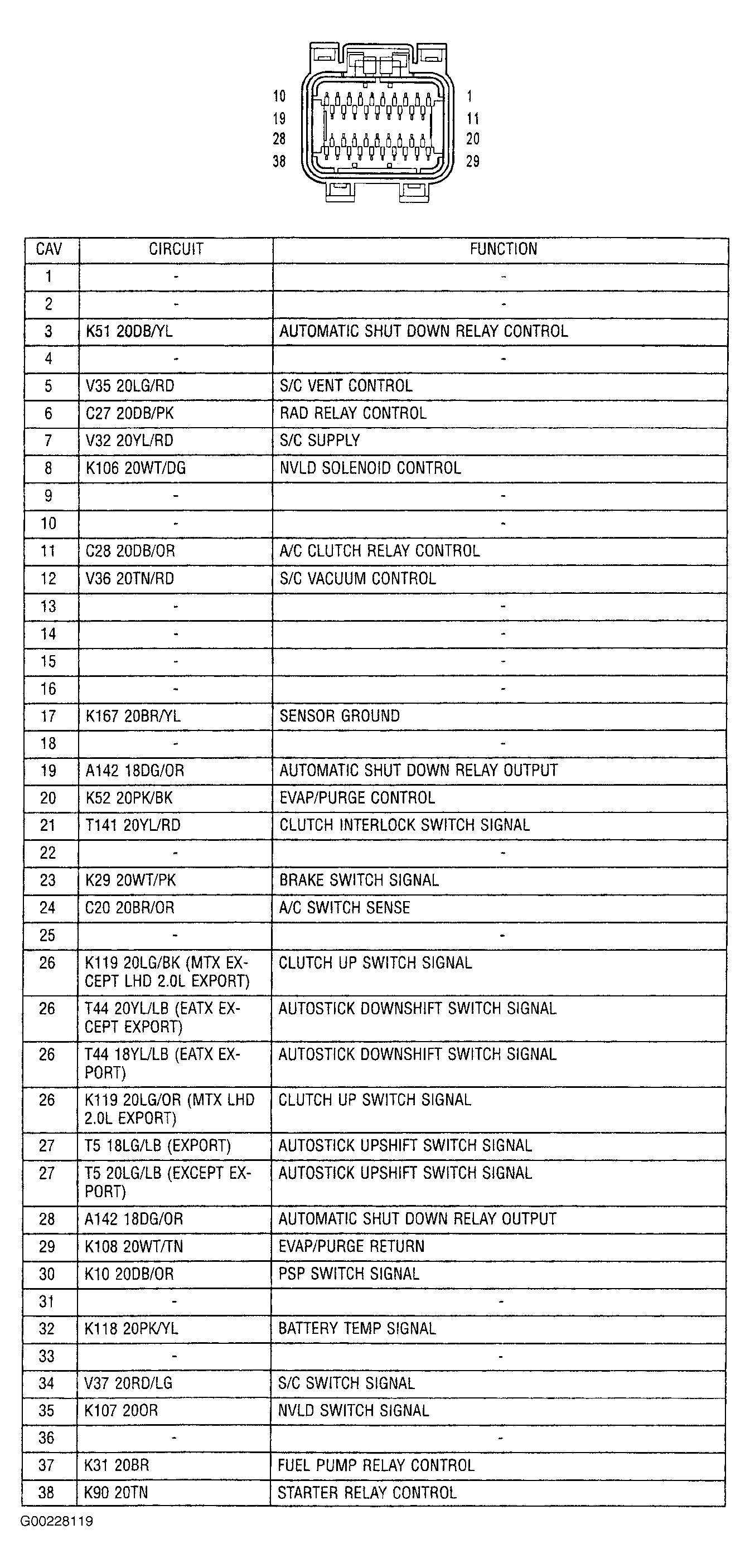

Fig 34: Identifying Powertrain Control Module C3 Harness Connector Terminals
G00228119Courtesy of CHRYSLER CORP.

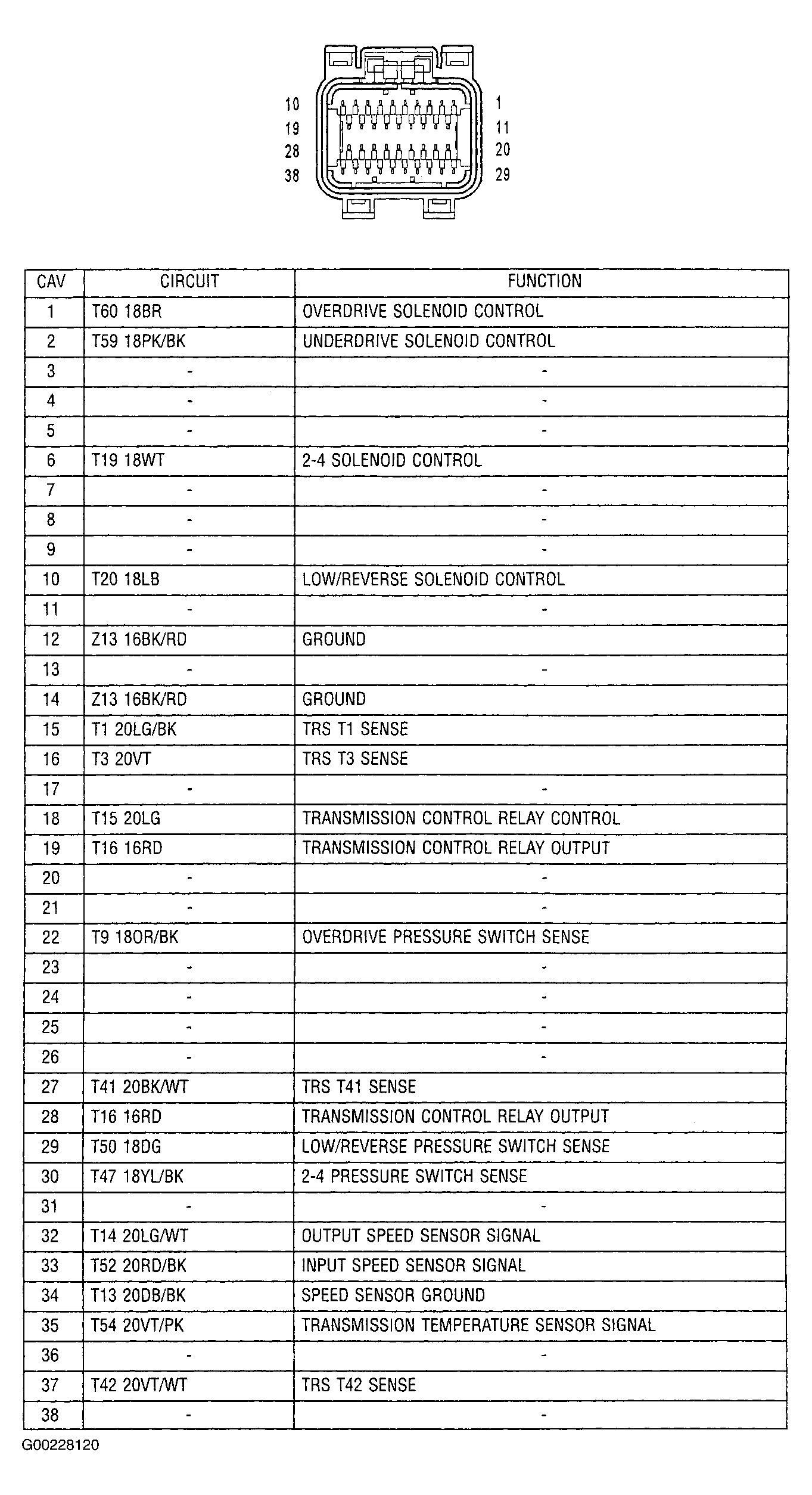

Fig 35: Identifying Powertrain Control Module C4 Harness Connector Terminals
G00228120Courtesy of CHRYSLER CORP.
Fig 36: Identifying Radiator Fan Motor Harness Connector Terminals
G00228121Courtesy of CHRYSLER CORP.

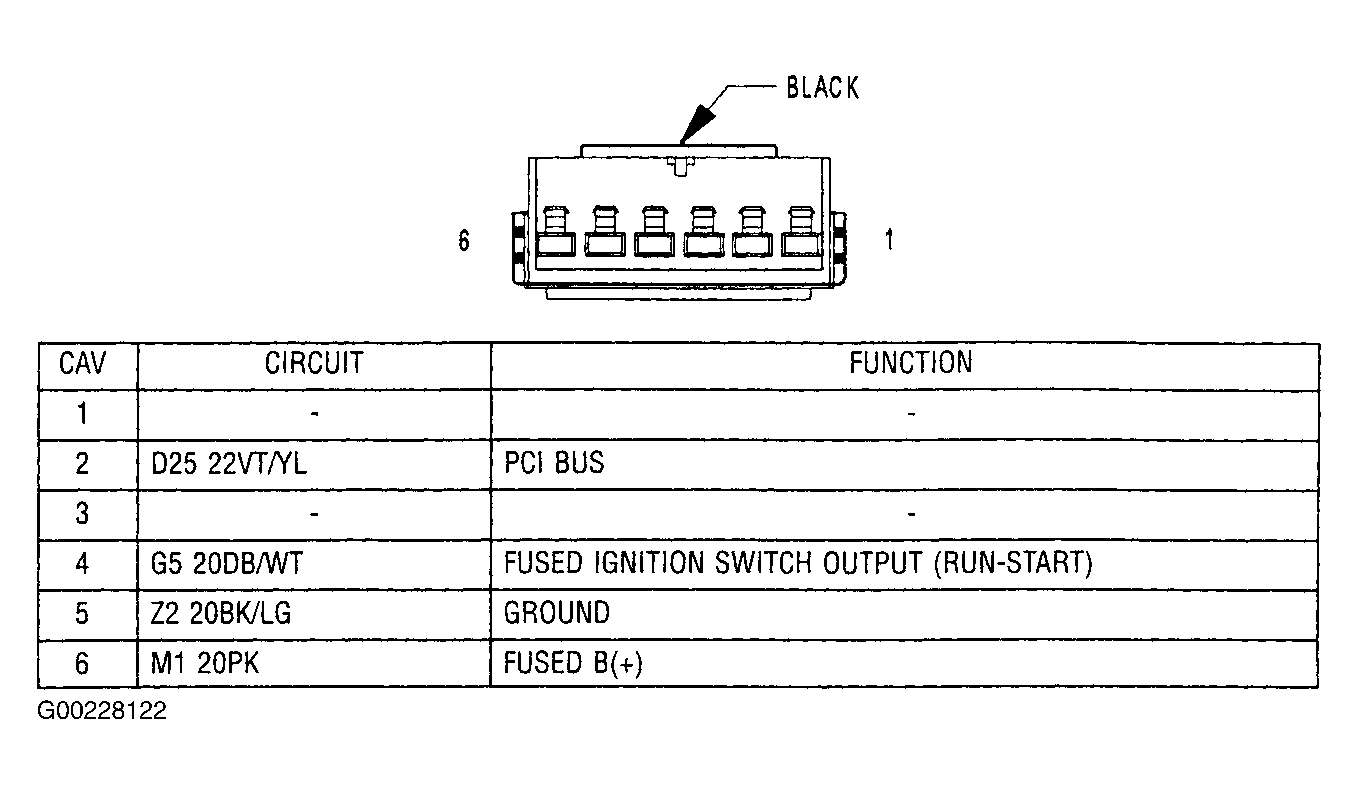

Fig 37: Identifying Sentry Key Immobilizer Module Harness Connector Terminals
G00228122Courtesy of CHRYSLER CORP.

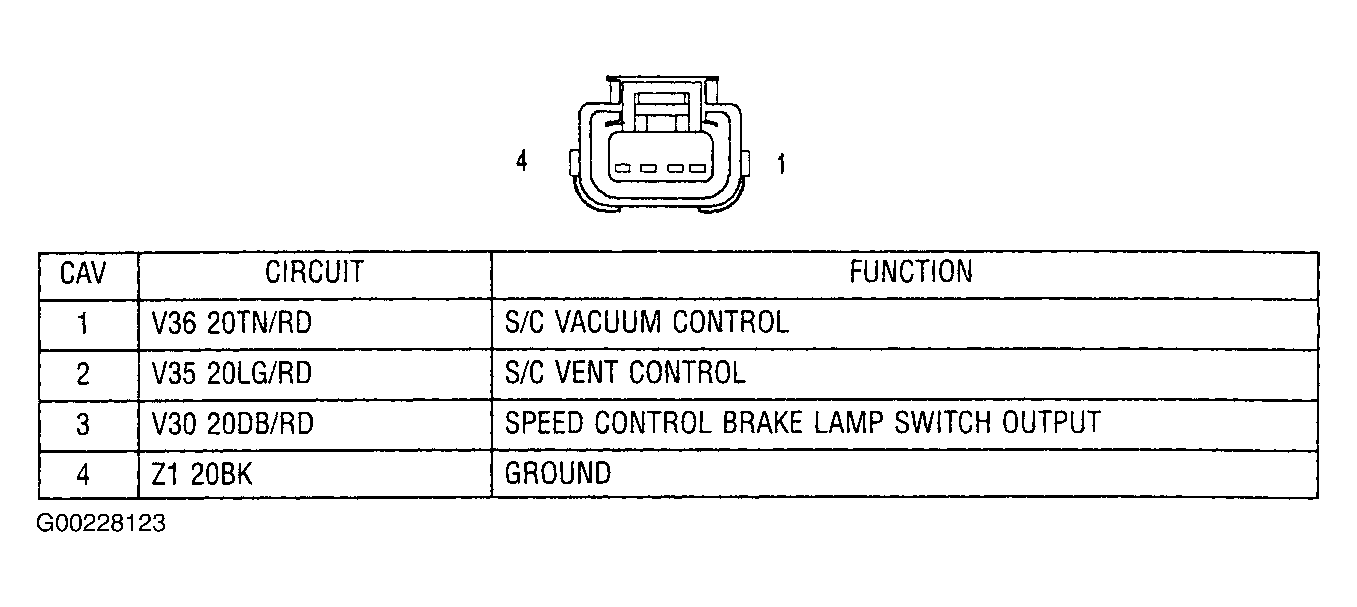

Fig 38: Identifying Speed Control Servo Harness Connector Terminals
G00228123Courtesy of CHRYSLER CORP.
Fig 39: Identifying Throttle Position Sensor Harness Connector Terminals
G00228124Courtesy of CHRYSLER CORP.

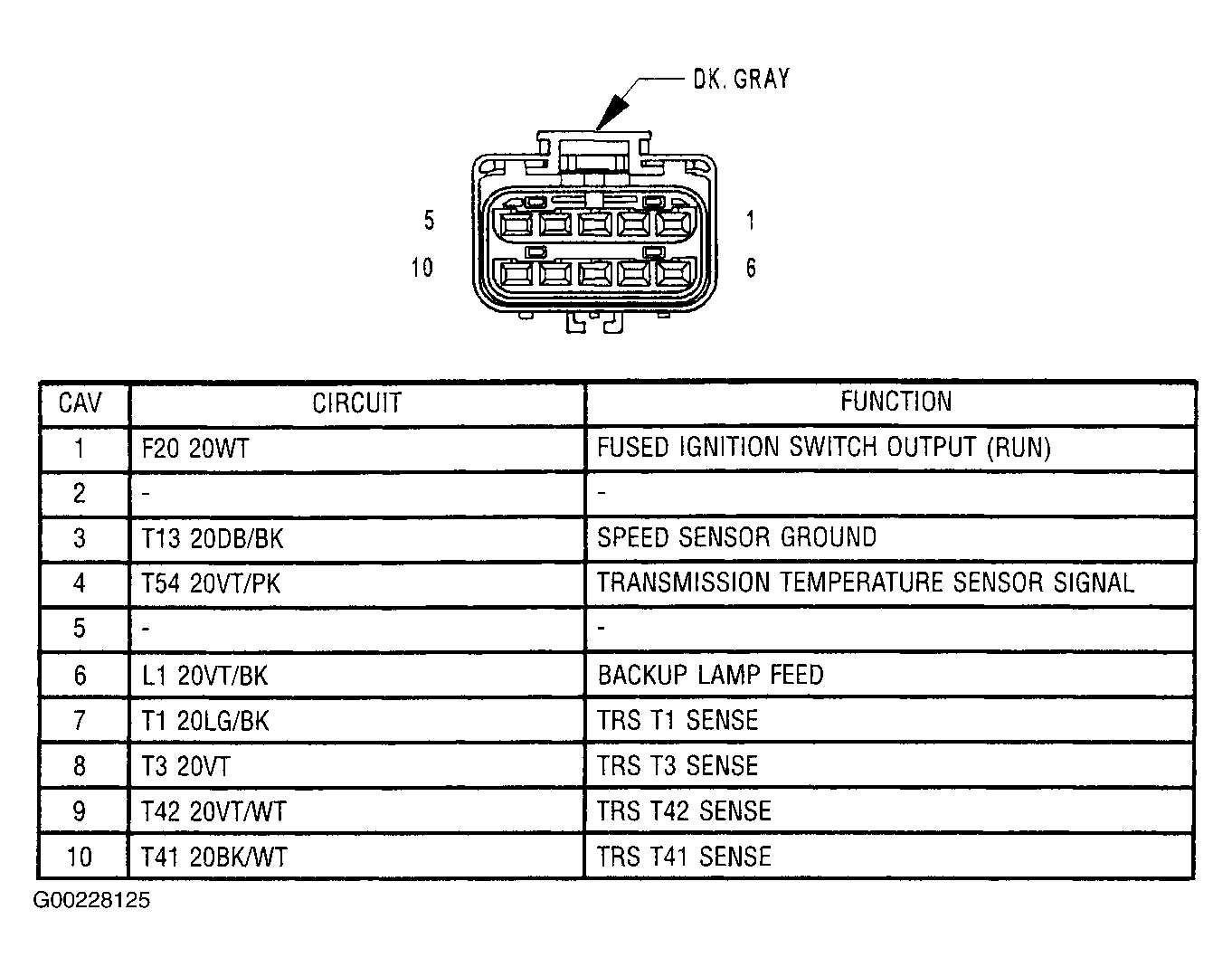

Fig 40: Identifying Transmission Range Sensor Harness Connector Terminals
G00228125Courtesy of CHRYSLER CORP.

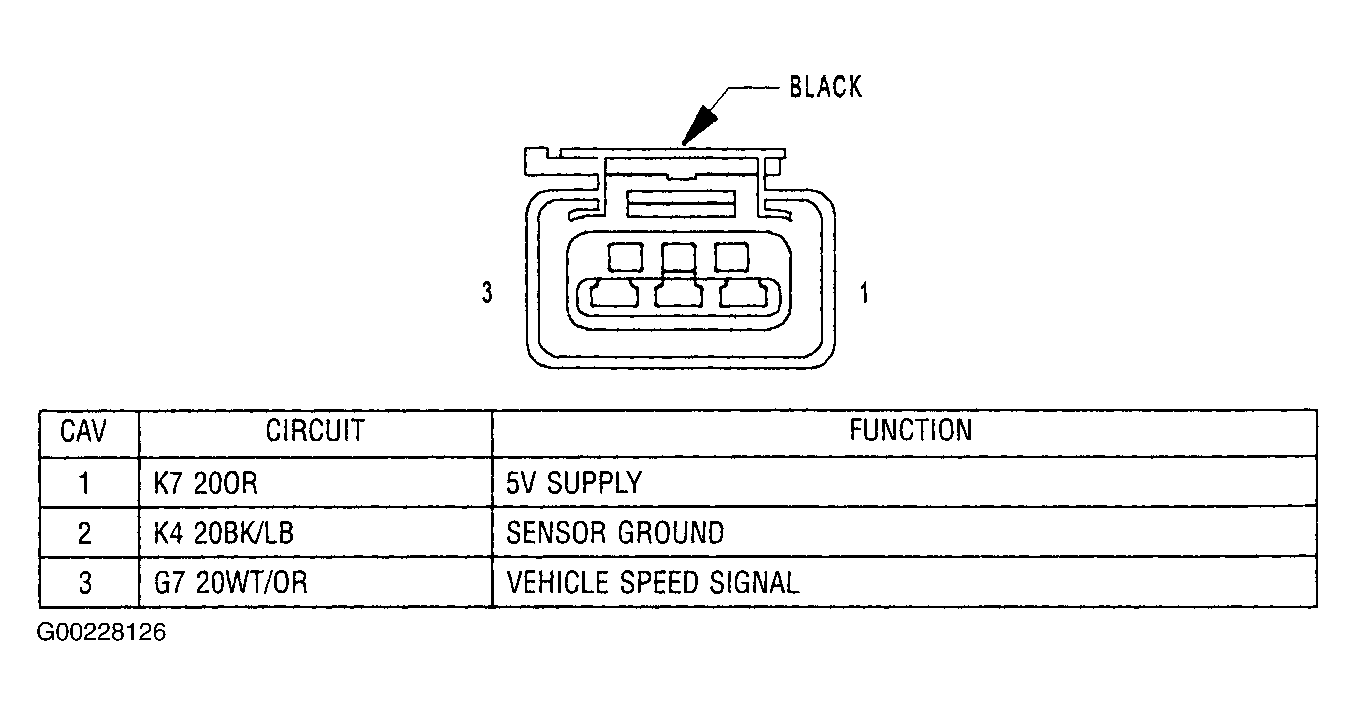

Fig 41: Identifying Vehicle Speed Sensor Harness Connector Terminals
G00228126Courtesy of CHRYSLER CORP.

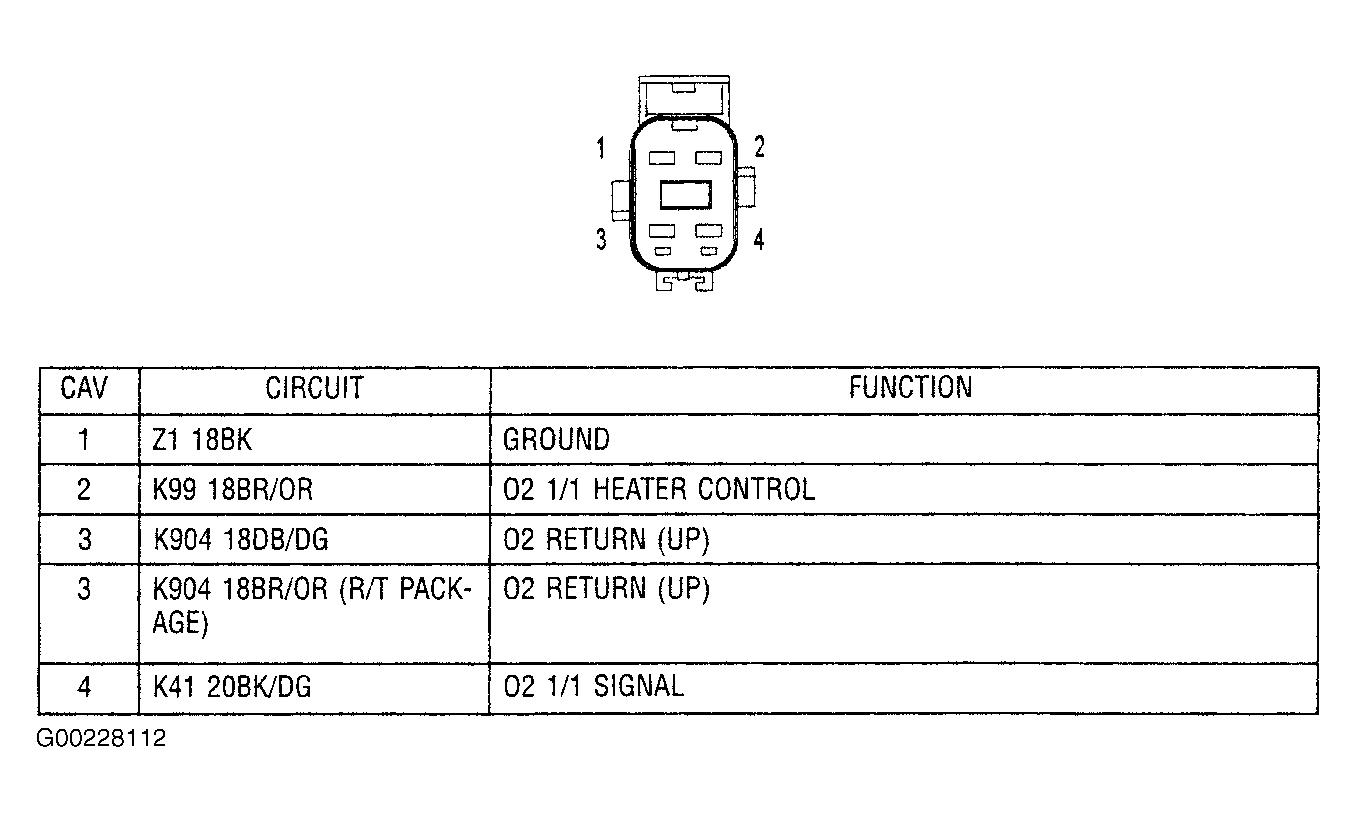

Fig 42: Identifying 1/1 Oxygen Sensor Harness Connector Terminals
G00228112Courtesy of CHRYSLER CORP.

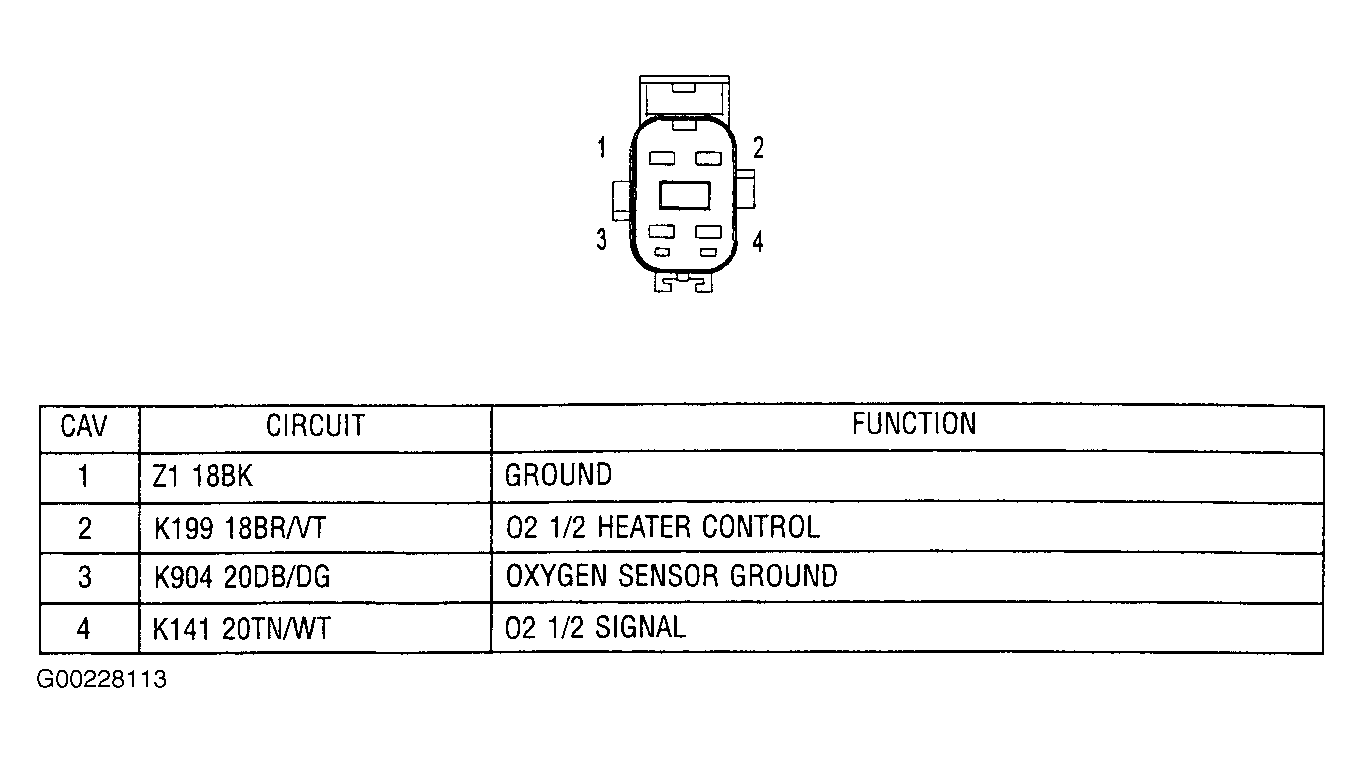

Fig 43: Identifying 1/2 Oxygen Sensor Harness Connector Terminals
G00228113Courtesy of CHRYSLER CORP.
