Right Side Impact Airbag Control Module Connector End View
Right Side Impact Airbag Control Module Connector End View

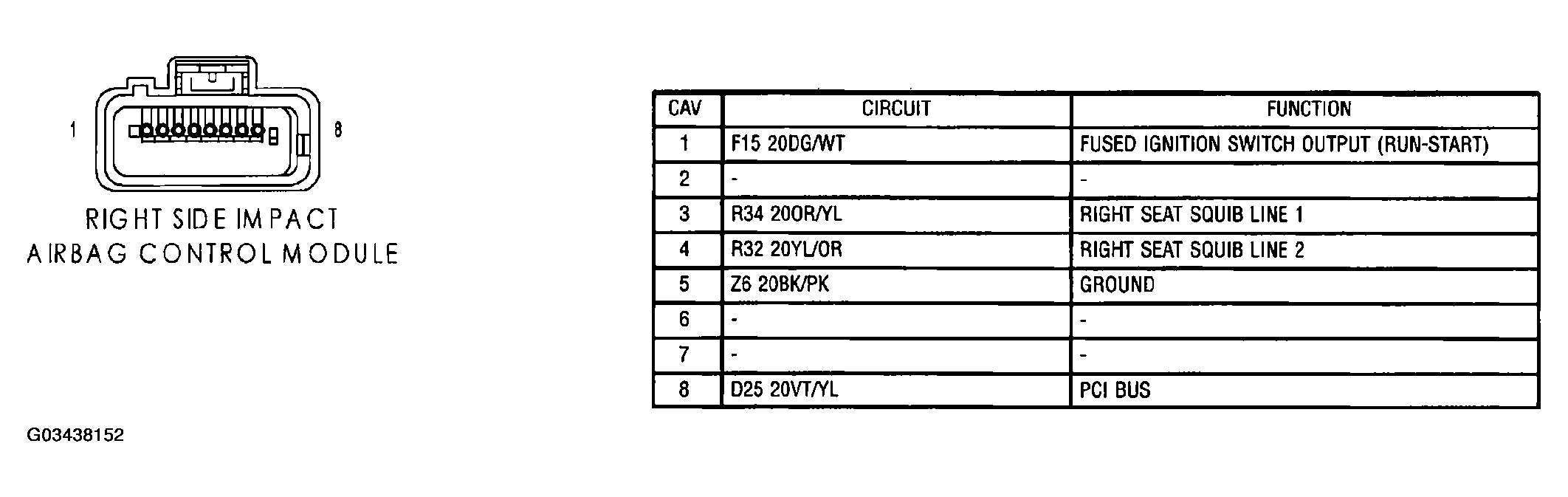

Fig 1: Right Side Impact Airbag Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
