Home >> Dodge and Ram >> 2003 >> Neon SXT, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector Pin - Out >> Multifunction Switch Connector End View

Multifunction Switch Connector End View

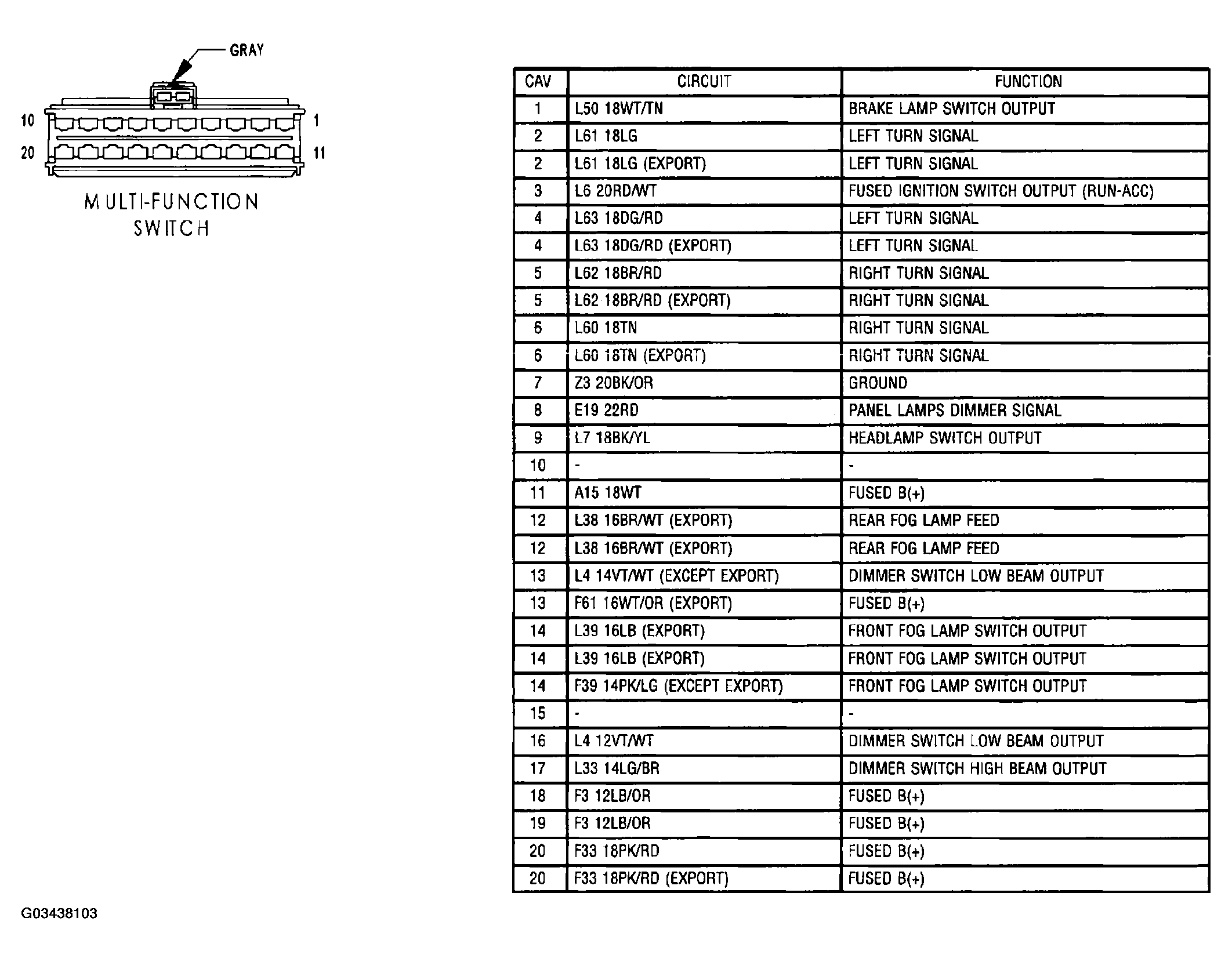

Fig 1: Multifunction Switch Connector End View

G03438103

Courtesy of DAIMLERCHRYSLER CORP.
