Ambient Temperature Sensor: Removal

  1. Open hood, disconnect and isolate the negative battery cable.
  2. Working in the front of the vehicle, reach through the lower opening in the front fascia to access the ambient temperature sensor.
  3. Remove the ambient temperature sensor from the radiator closure panel (Fig 1).

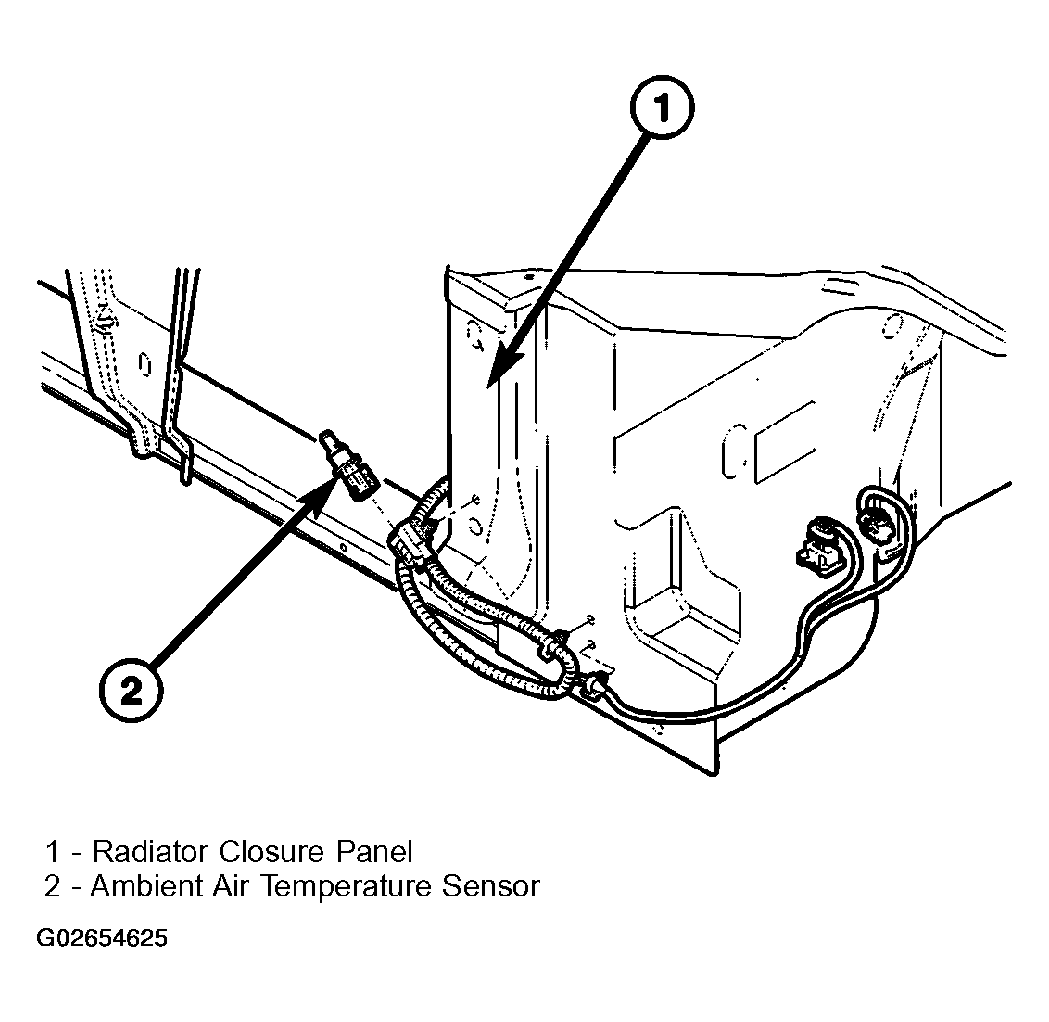

    Fig 1: Locating Ambient Air Temperature Sensor
    G02654625Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the ambient temperature sensor electrical connector.
  5. Remove the ambient temperature sensor from the vehicle.
