Removal - 1.6L

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner box, refer to the air cleaner box removal (Fig 1).

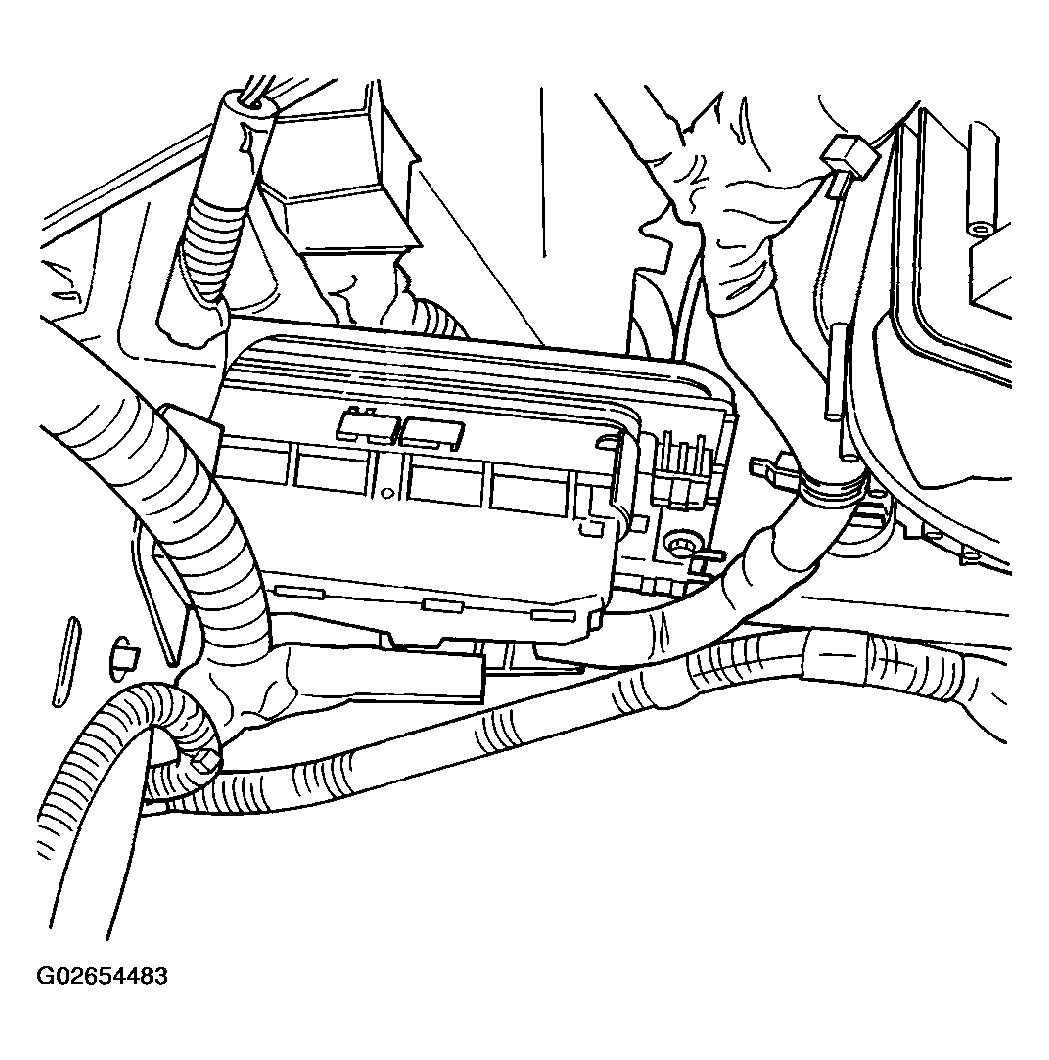

    Fig 1: Identifying PCM Location
    G02654483Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the Powertrain Control Module connector.
  4. Remove the 4 bolts (Fig 2).

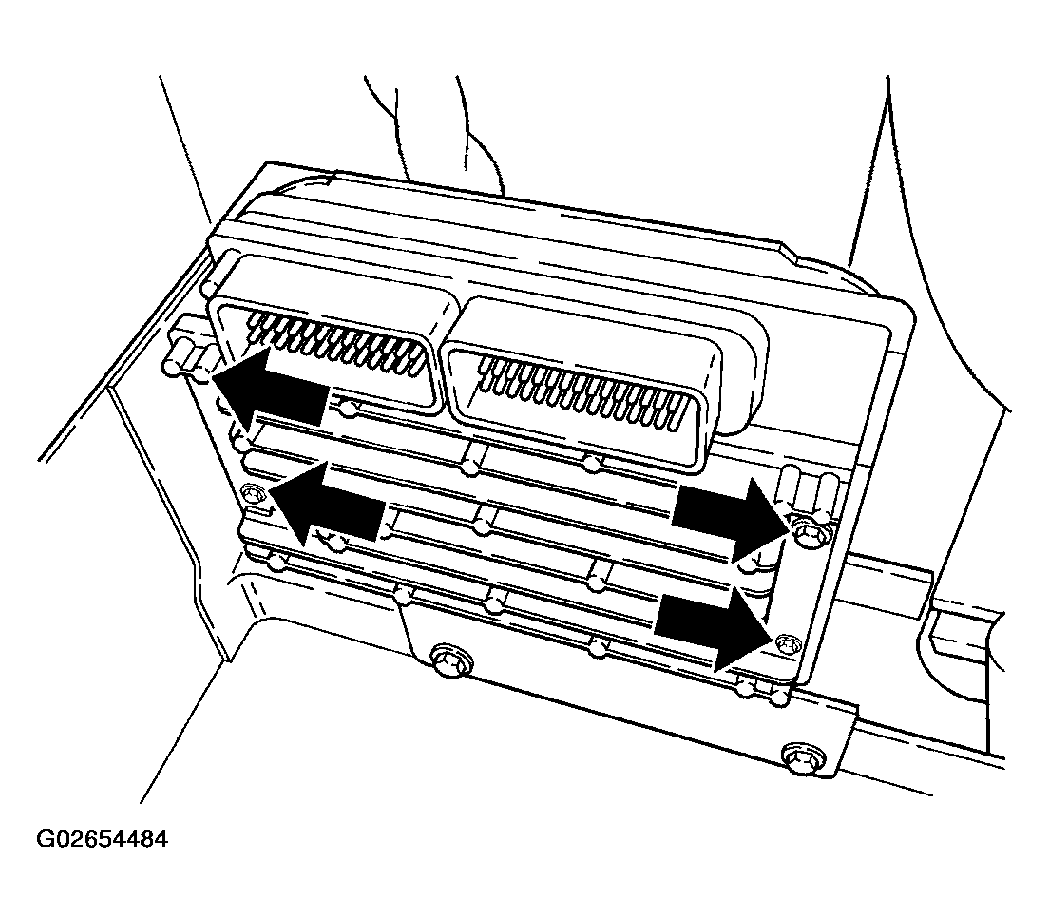

    Fig 2: Locating PCM Bolts
    G02654484Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the PCM from bracket.
