Installation - 2.0L

  1. Install the assembly, PCM and bracket.
  2. Loose install the mounting nut.

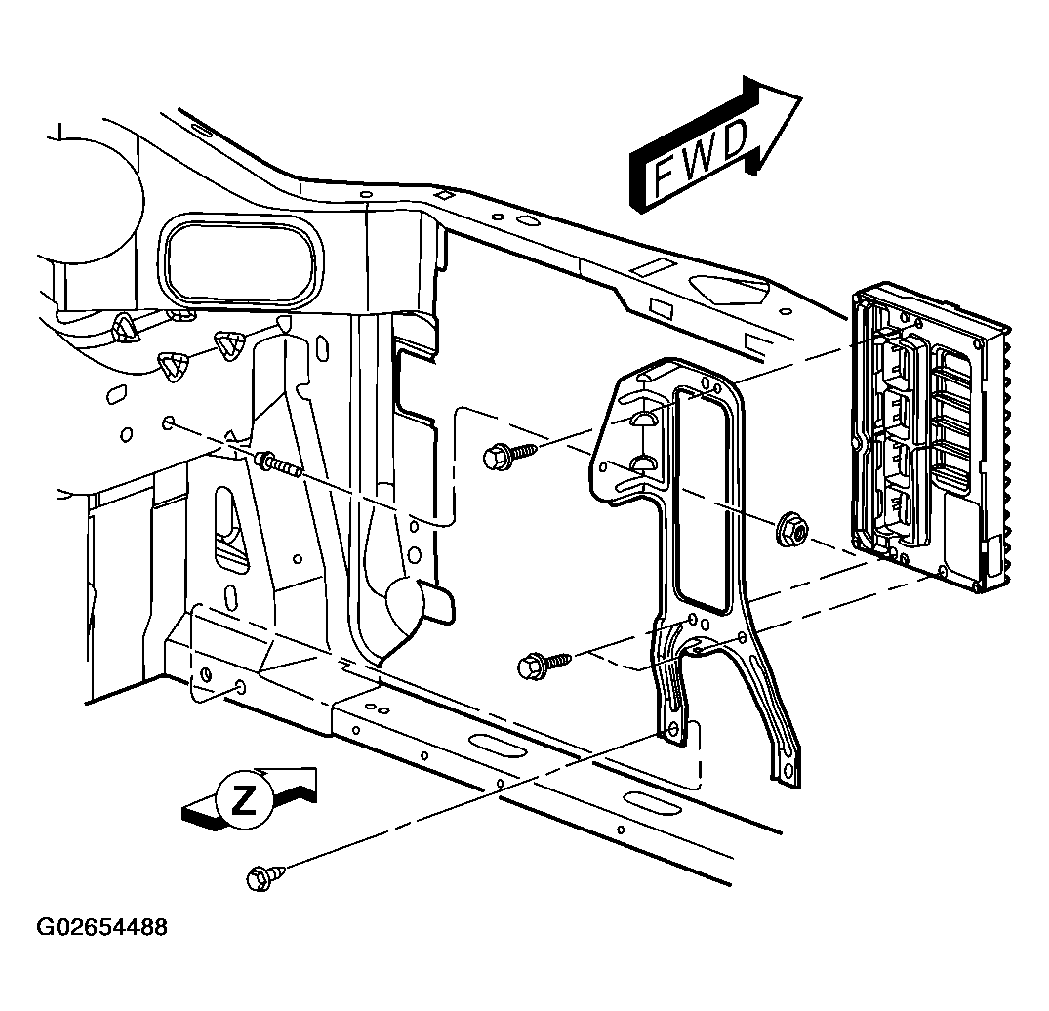

  3. Install the mounting bolts to the bottom of the PCM bracket (Figure).
  4. Tighten the mounting nut, tighten to
    5. NOTE: The electrical connector for the PCM are COLOR Coded.

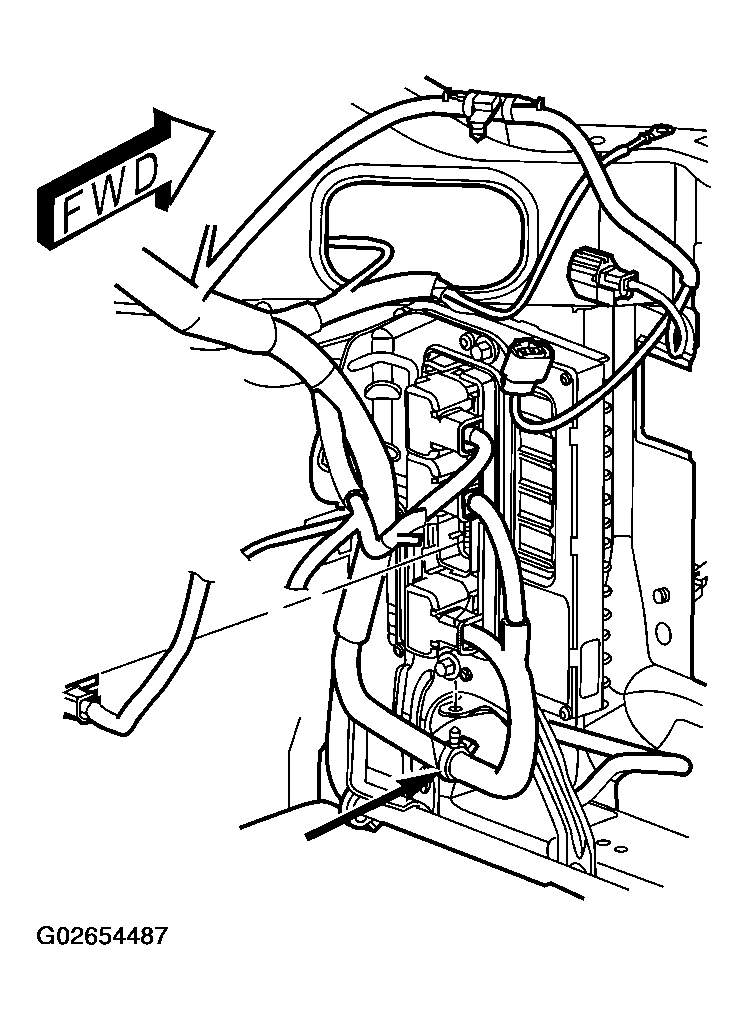

  5. Install the wiring harness clip (Figure) to the PCM bracket.

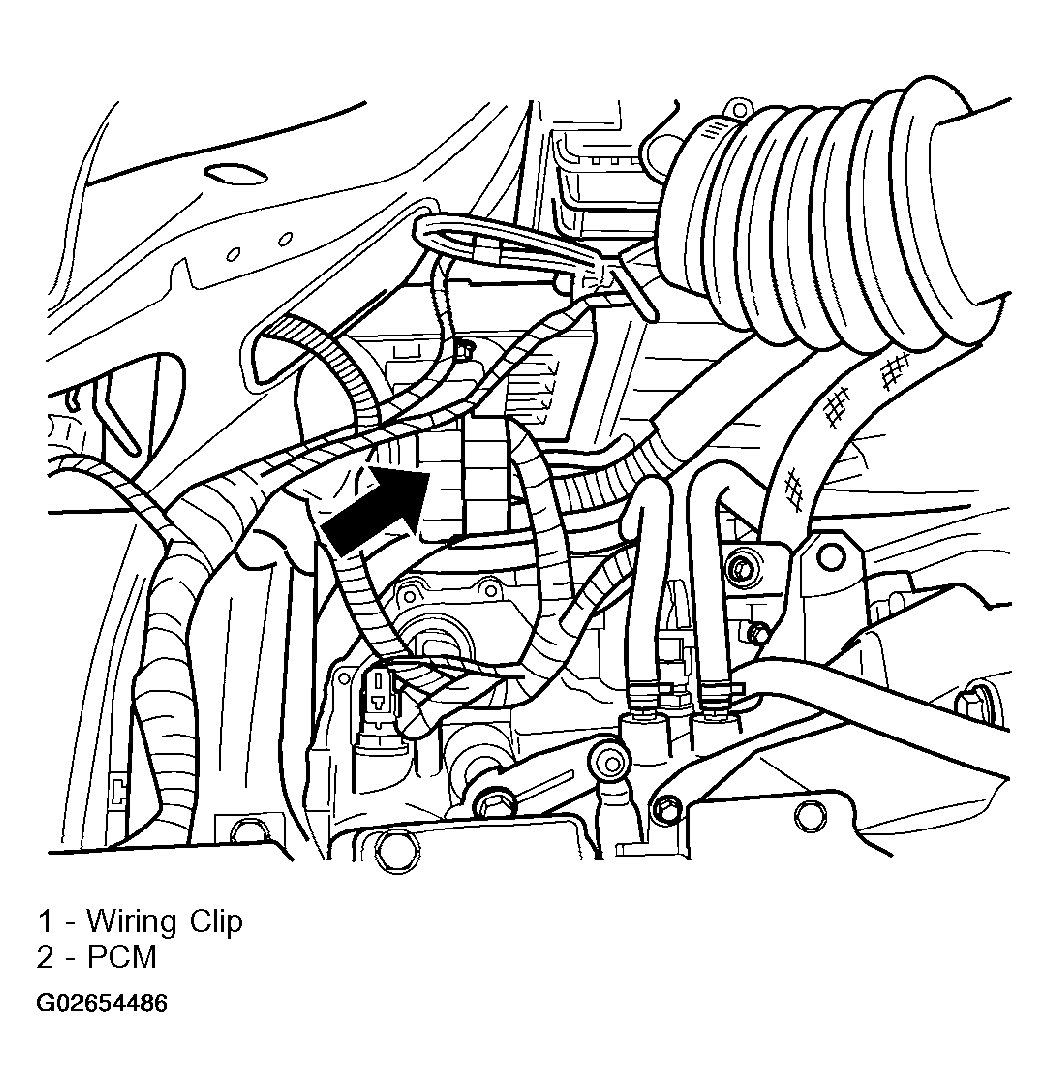

  6. Connect the electrical connectors and lock (Figure) at the PCM.

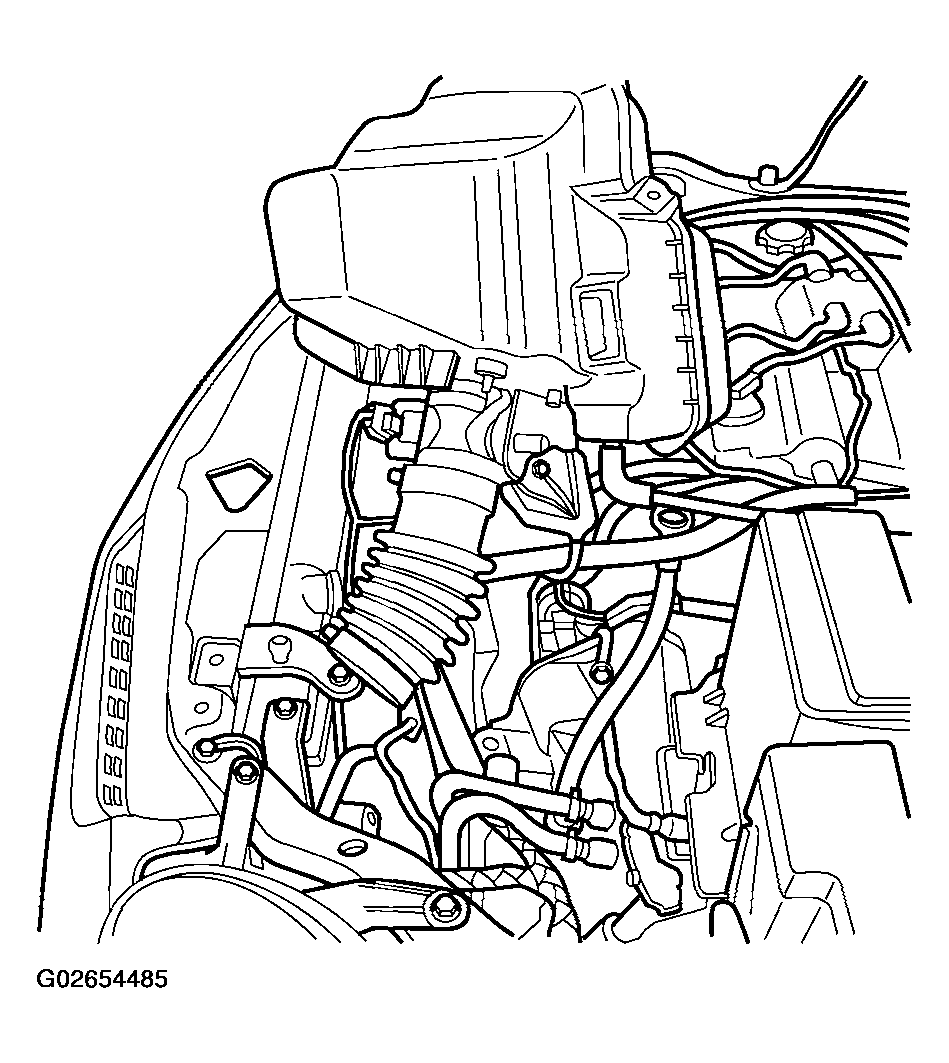

  7. Install the air cleaner box (Figure).
  8. Connect the negative battery cable.
