Transmission Range Sensor: Installation

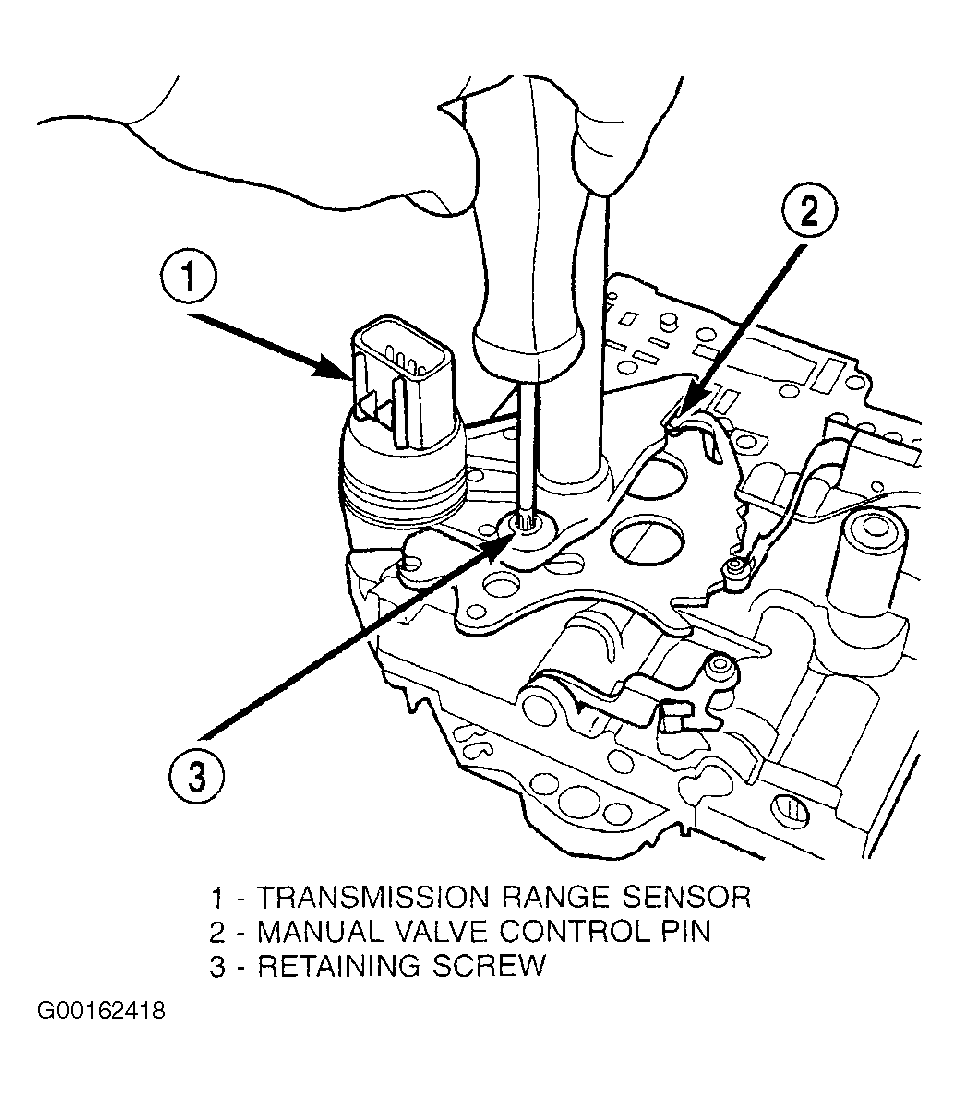

Install transmission range sensor (TRS) to the valve body and torque retaining screw to 45 INCH Lbs. (5 N.m). See
Figure
.
Install valve body to transaxle.
