Output Speed Sensor: Removal

  1. Disconnect battery negative cable.
  2. Raise vehicle on hoist.
  3. Disconnect output speed sensor connector. See Figure
  4. Unscrew and remove output speed sensor. See Fig 1.
  5. Inspect speed sensor "O" ring and replace if necessary. See Figure.

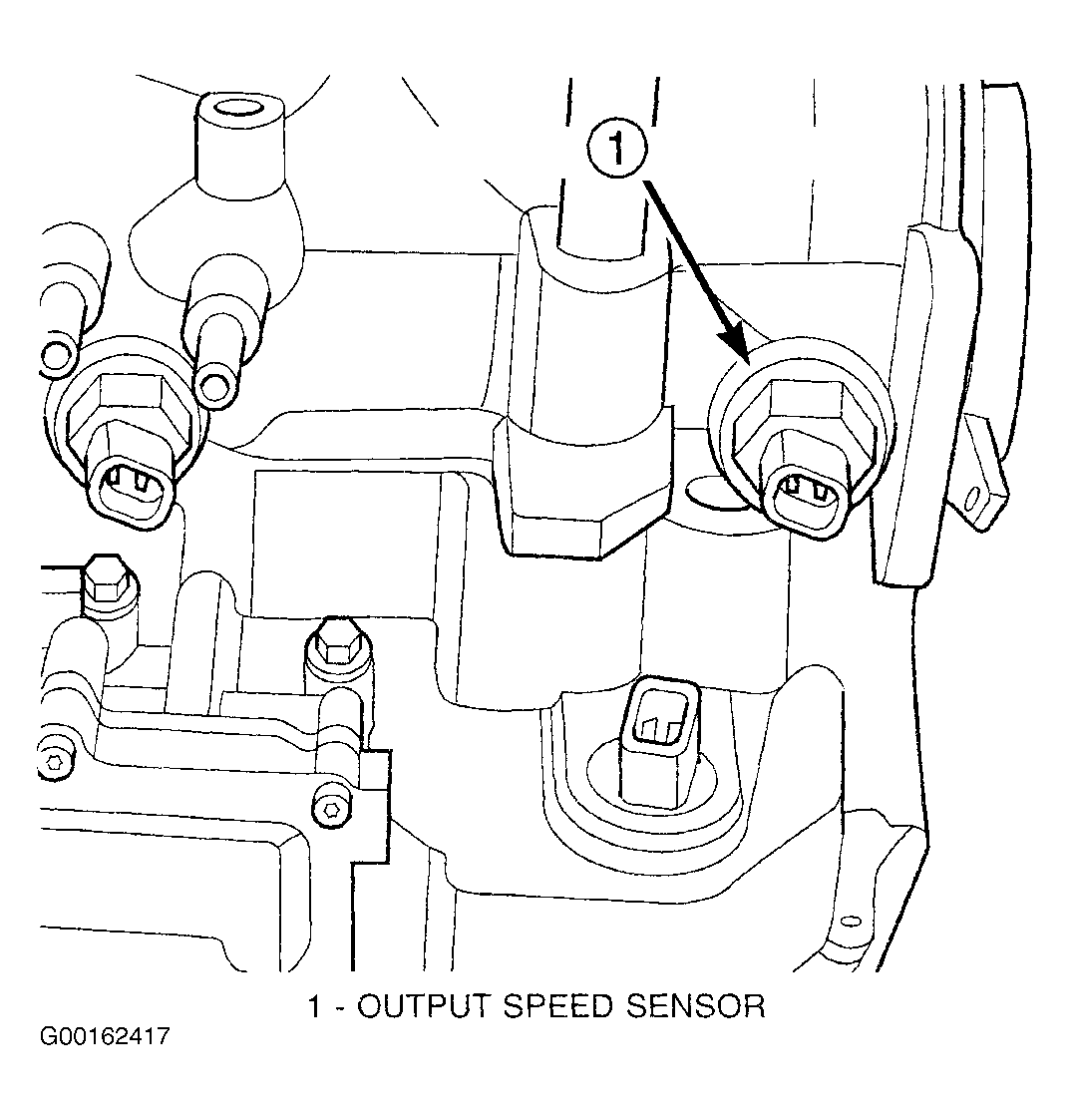

Fig 1: Identifying Output Speed Sensor
G00162417Courtesy of CHRYSLER CORP.
