Connector PINOUTS

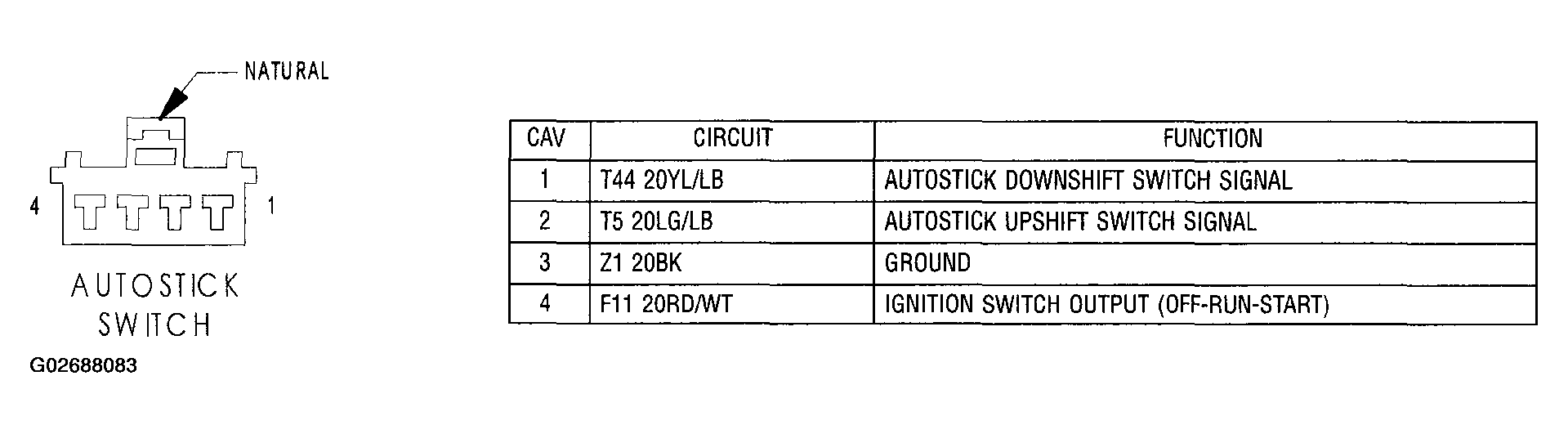

Fig 1: Identifying Autostick Switch Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

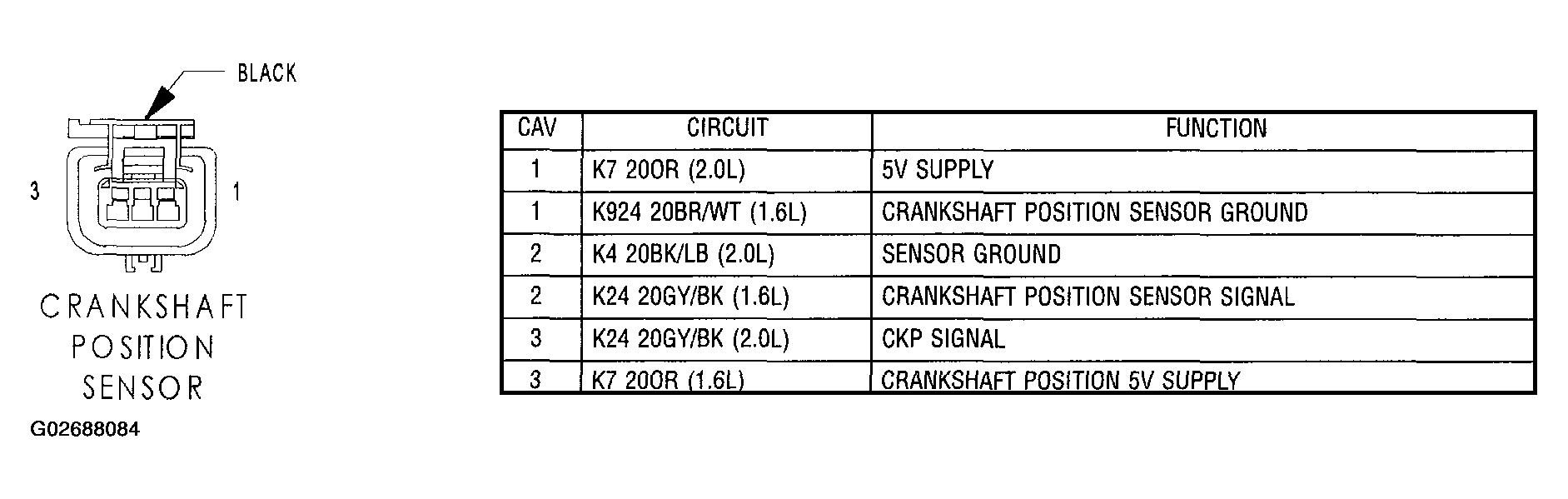

Fig 2: Identifying Crankshaft Position Sensor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

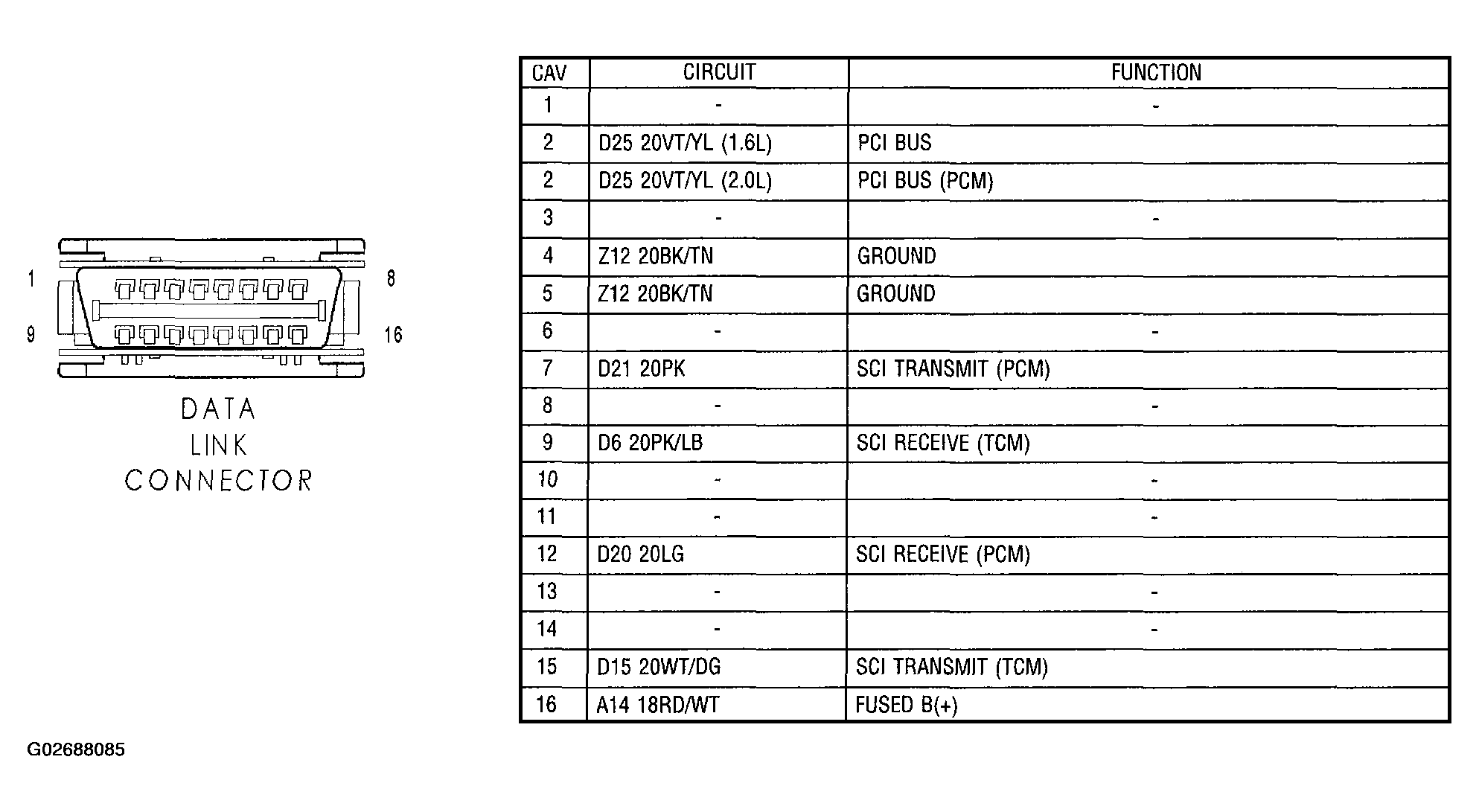

Fig 3: Identifying Data Link Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

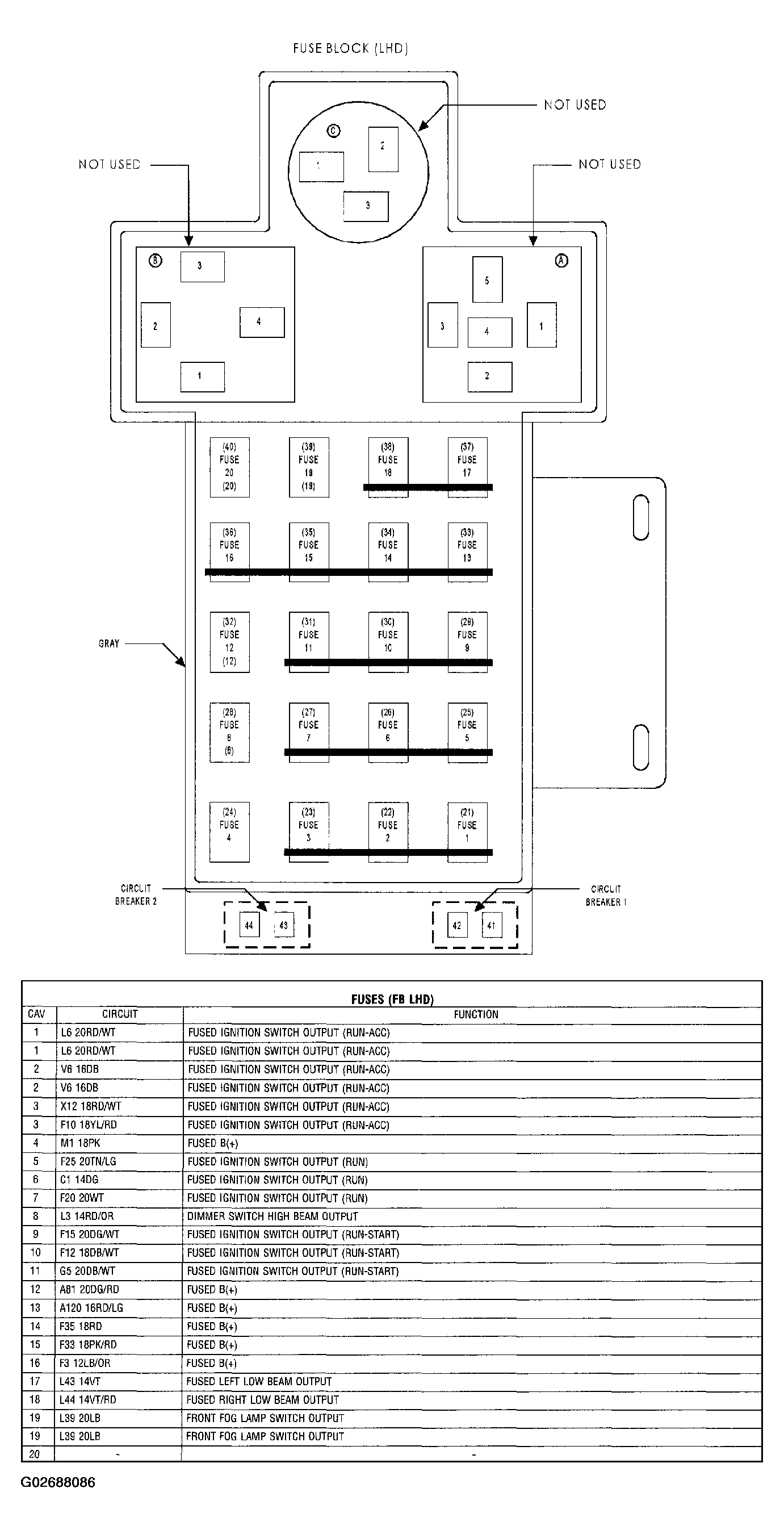

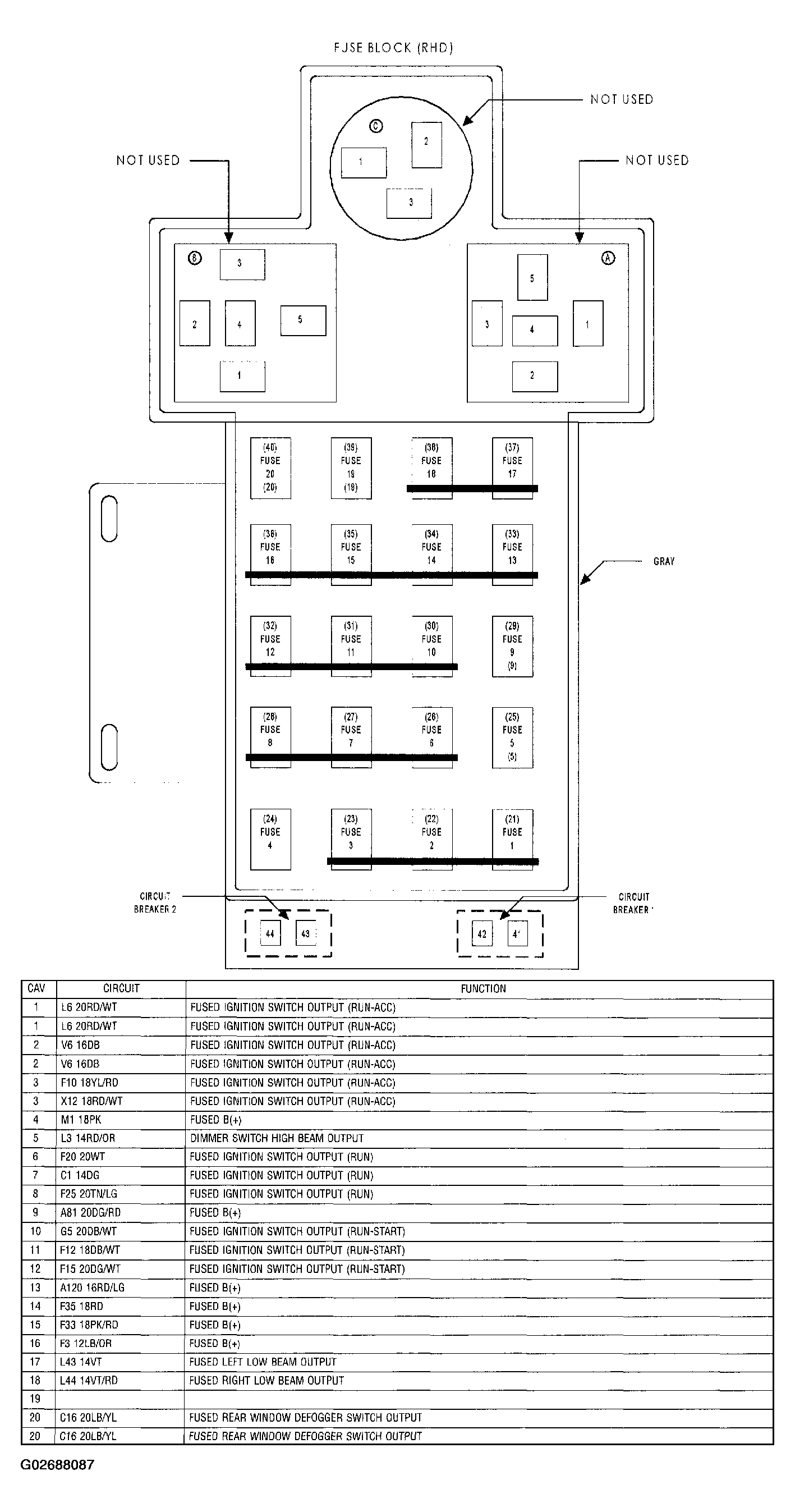

Fig 4: Identifying Fuse Block (LHD) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Fuse Block (RHD) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Input Speed Sensor (EATX) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

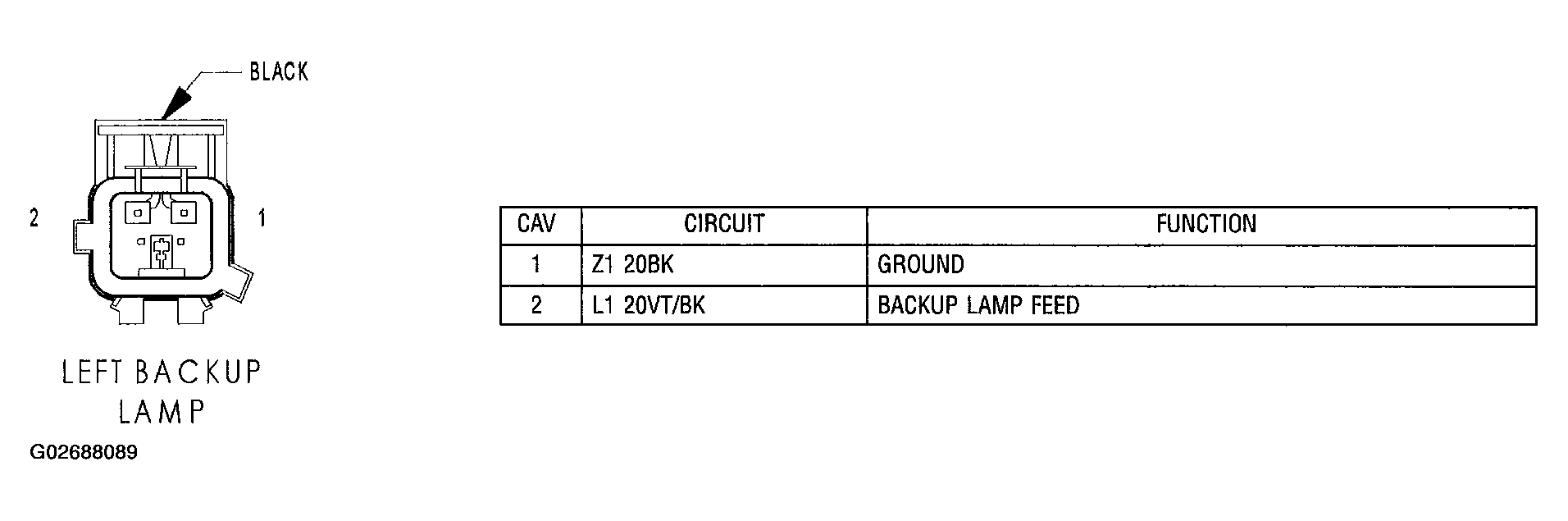

Fig 7: Identifying Left Backup Lamp Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

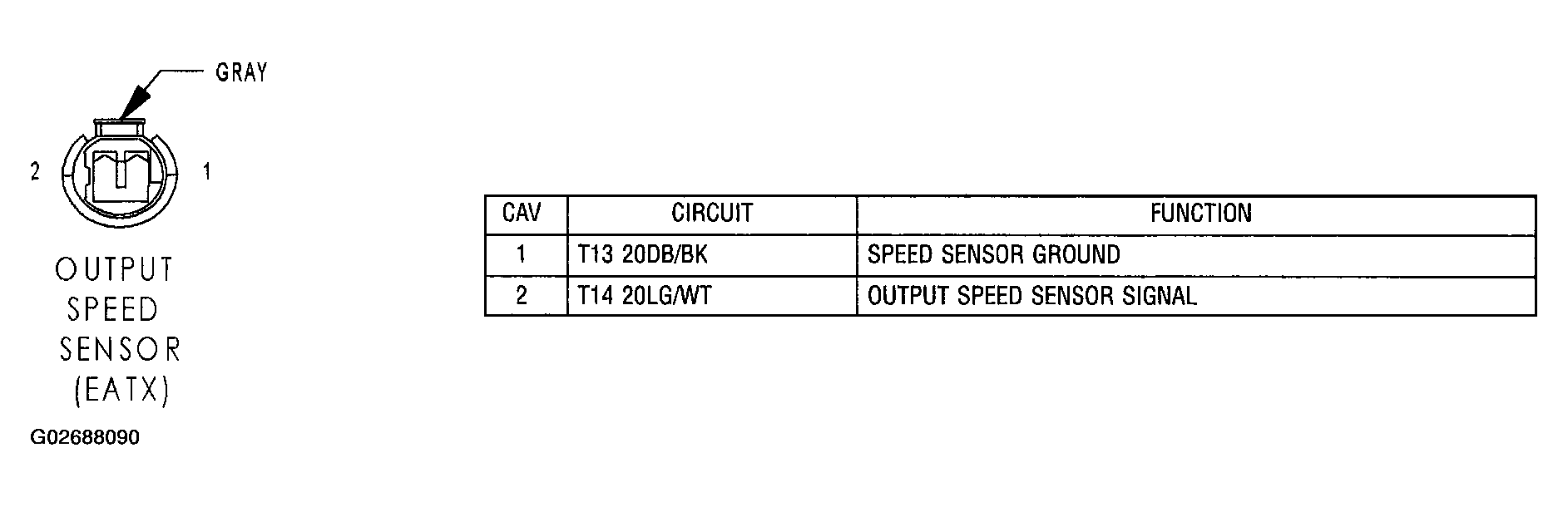

Fig 8: Identifying Output Speed Sensor (EATX) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

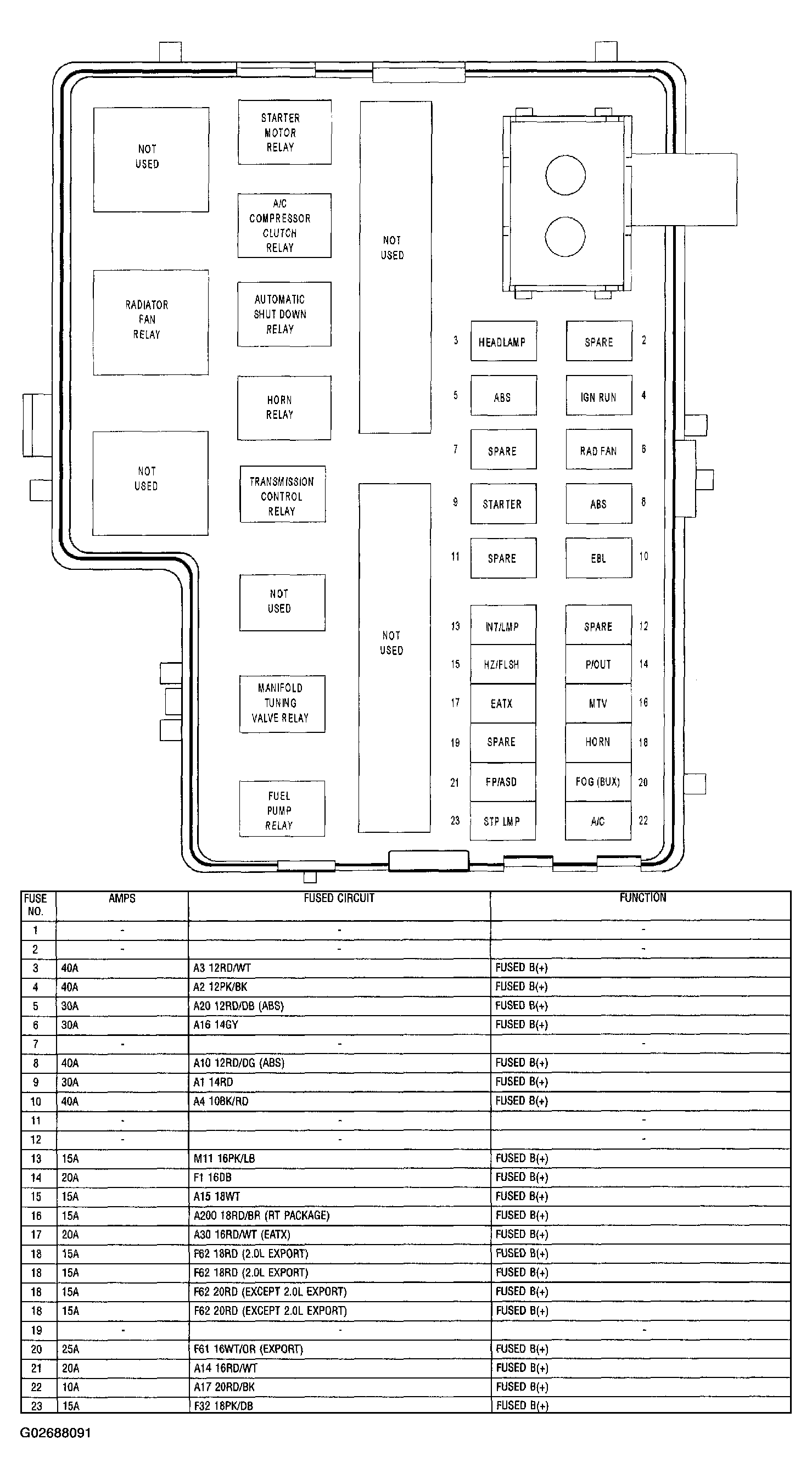

Fig 9: Identifying Powertrain Distribution Center Fuses

Courtesy of DAIMLERCHRYSLER CORP.

TRANSMISSION CONTROL RELAY (EATX) CONNECTOR PINOUTS FUNCTION REFERENCE

CAV	CIRCUIT	FUNCTION
44	Z1 20BK	GROUND
45	A30 16RD/WT	FUSED B(+)
46	T16 16RD	TRANSMISSION CONTROL RELAY OUTPUT
47	-
48	T15 20LG	TRANSMISSION CONTROL RELAY CONTROL

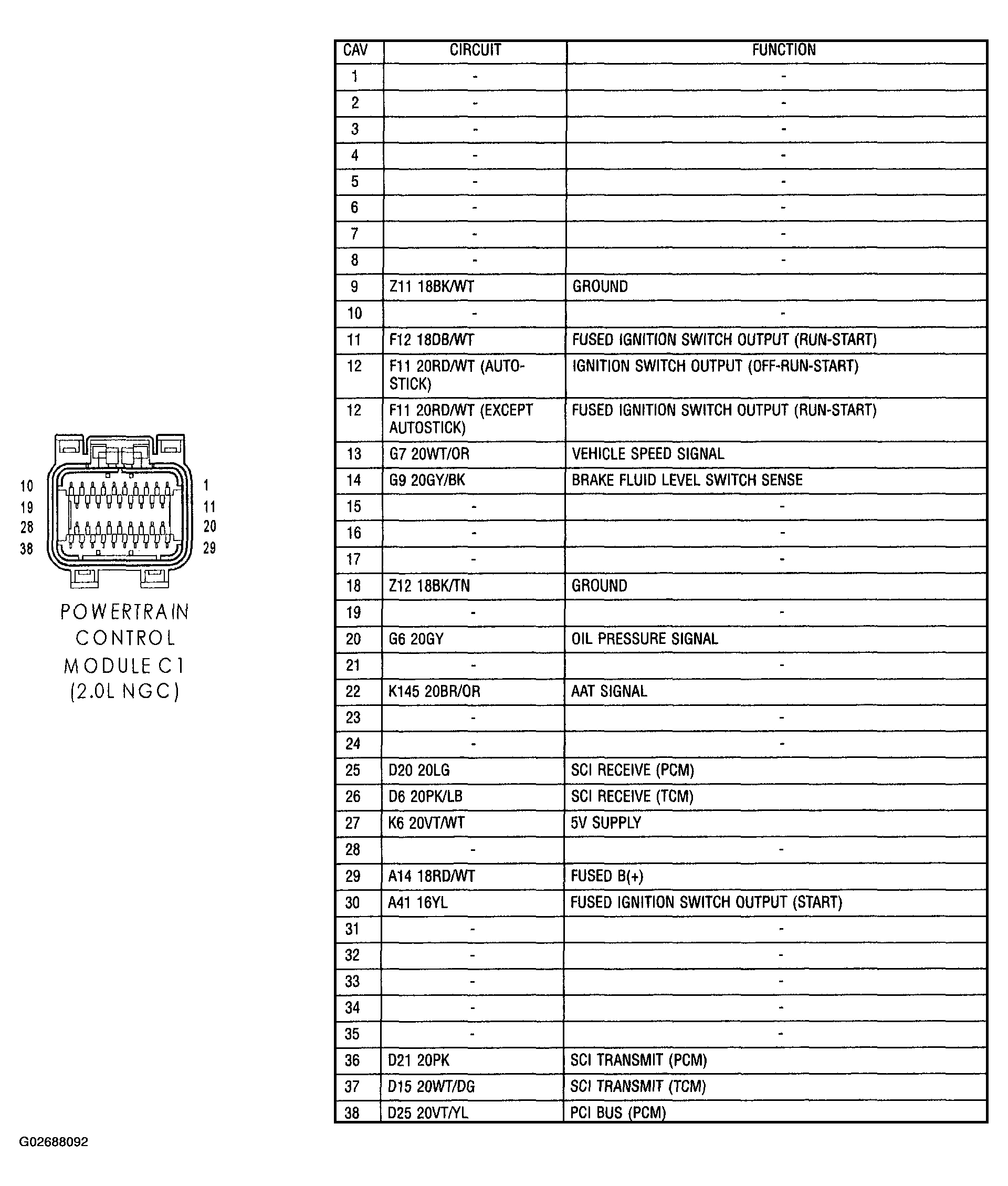

Fig 10: Identifying Powertrain Control Module C1 (2.0L NGC) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

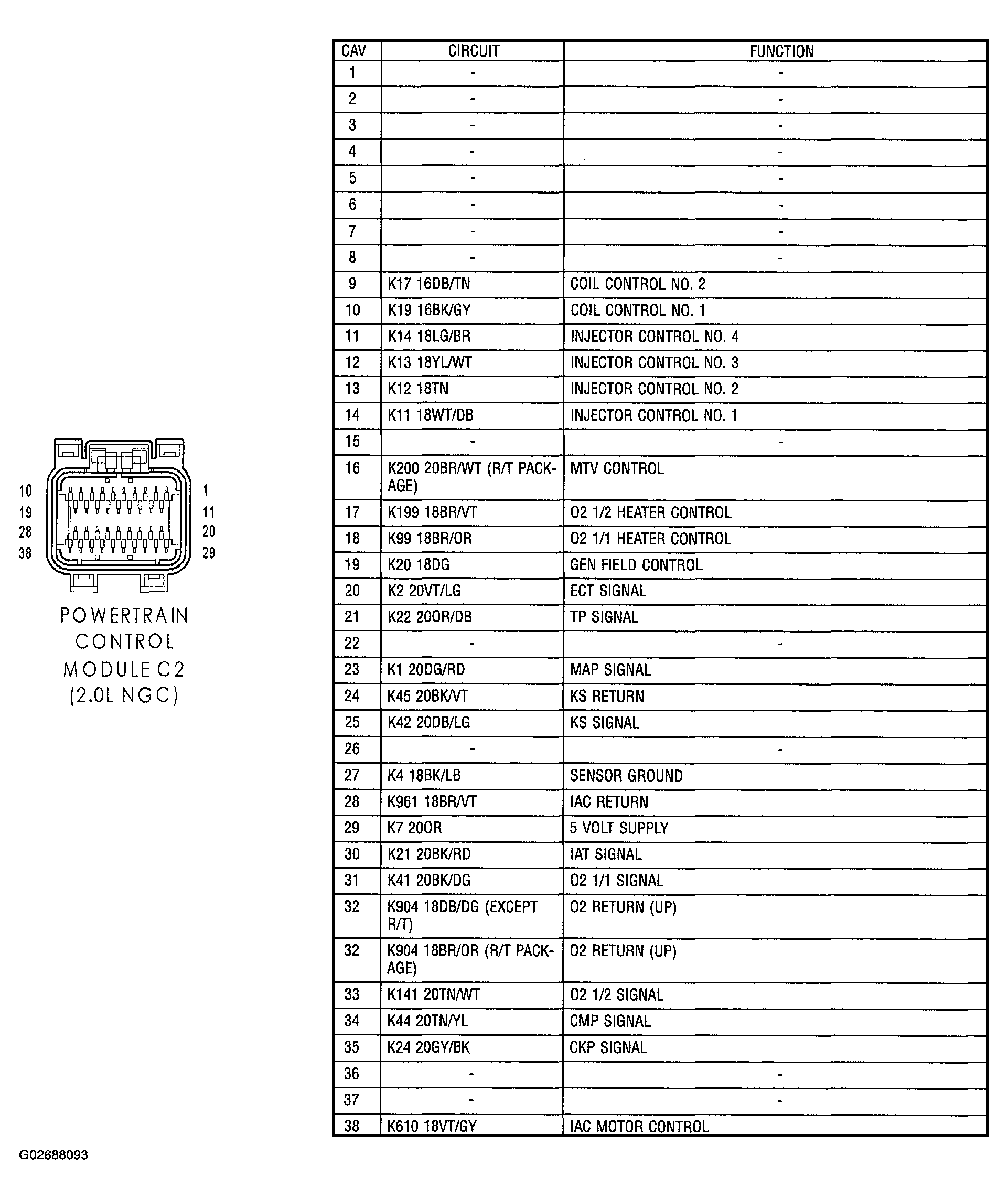

Fig 11: Identifying Powertrain Control Module C2 (2.0L NGC) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Powertrain Control Module C3 (2.0L NGC) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

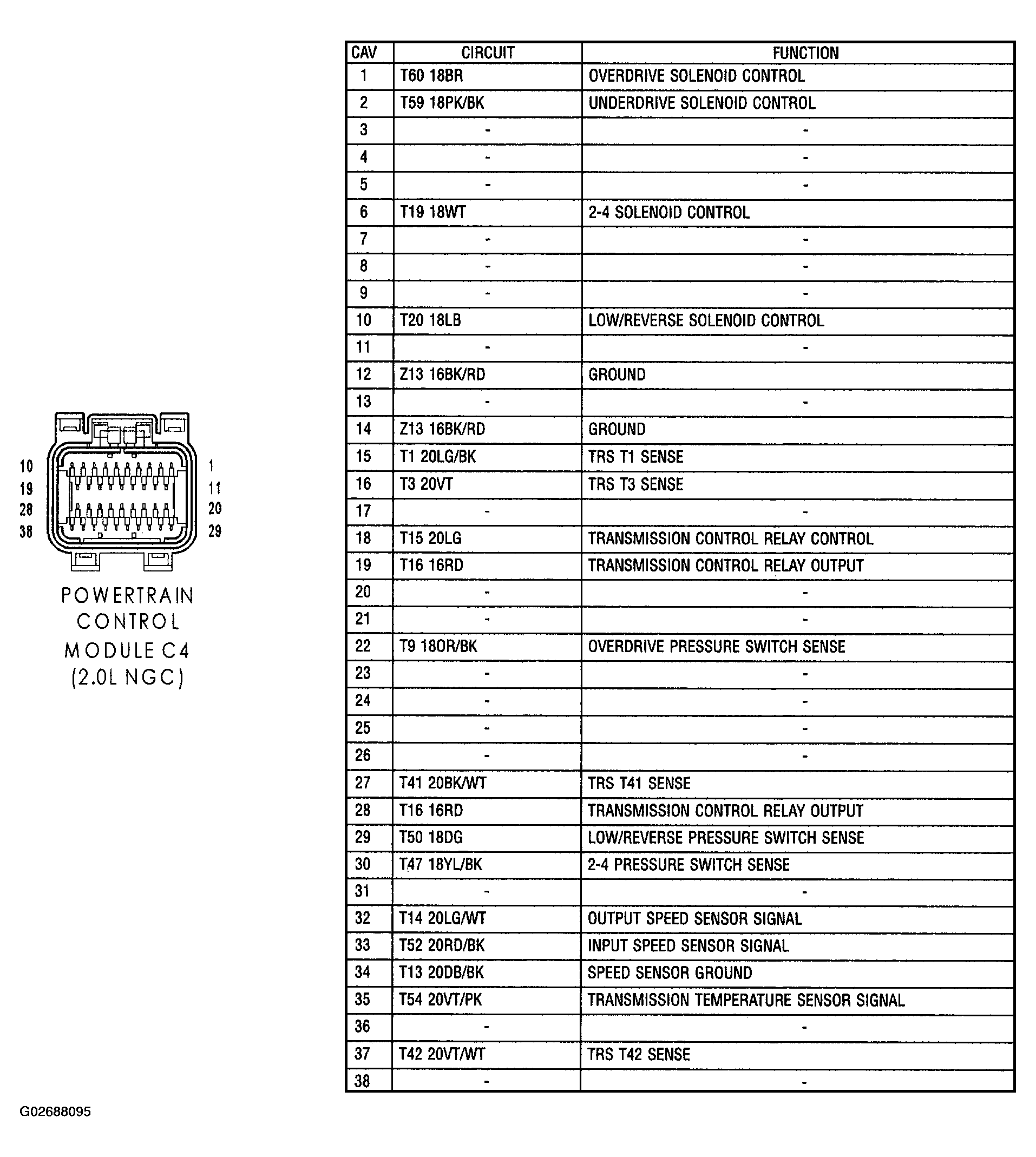

Fig 13: Identifying Powertrain Control Module C4 (2.0L NGC) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

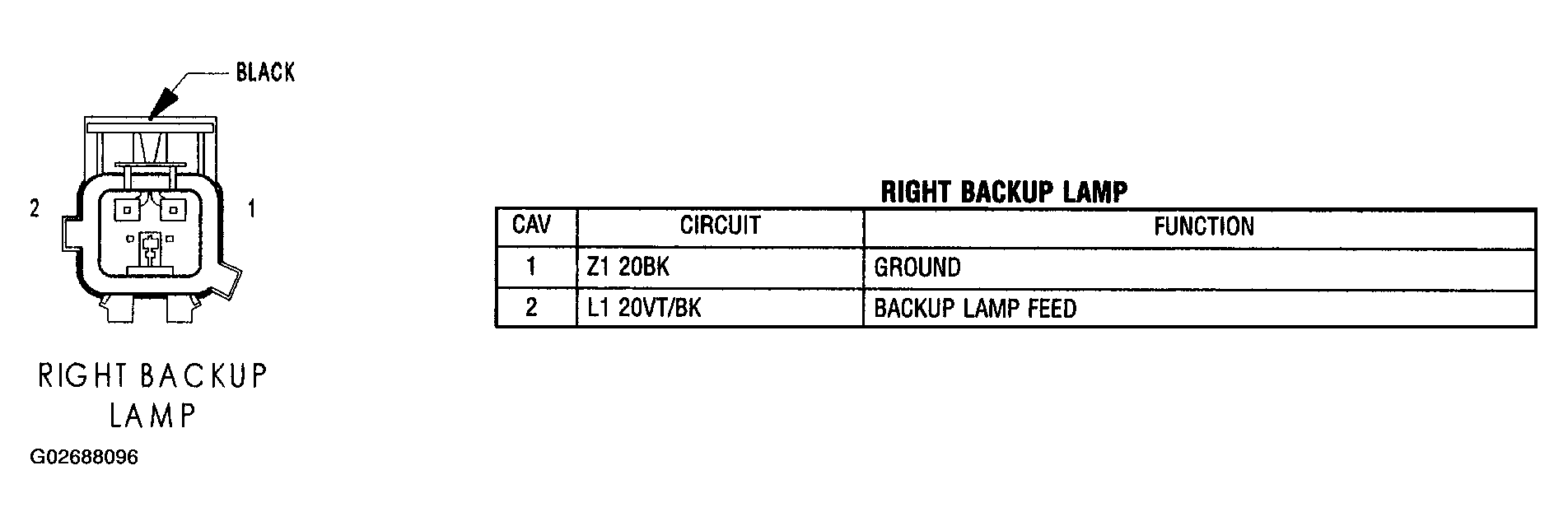

Fig 14: Identifying Right Backup Lamp Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

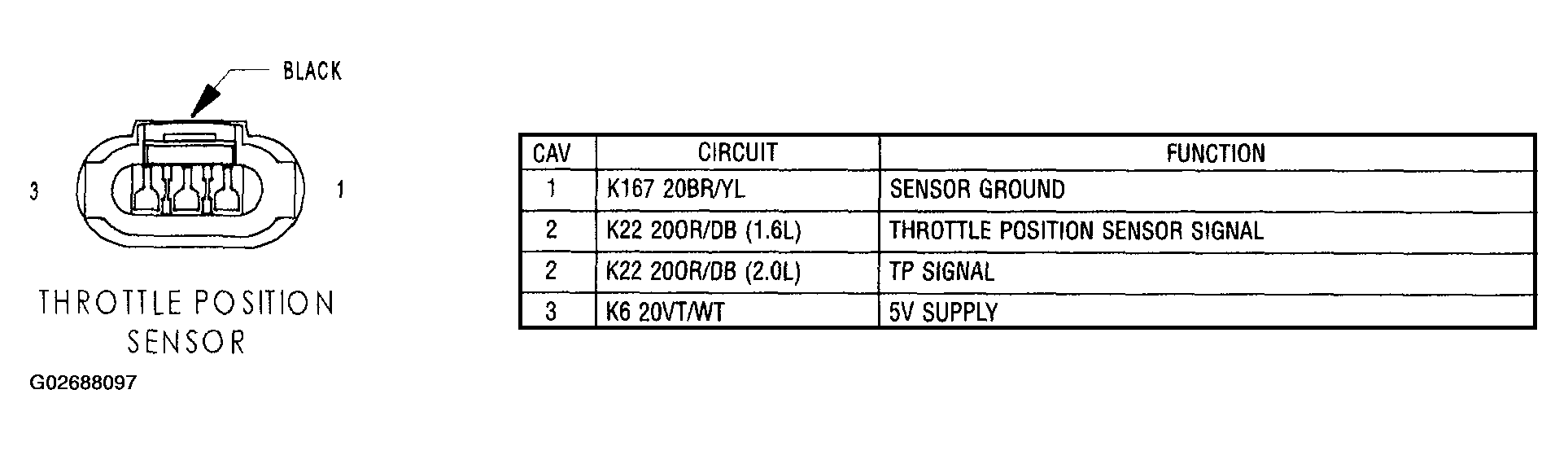

Fig 15: Identifying Throttle Position Sensor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

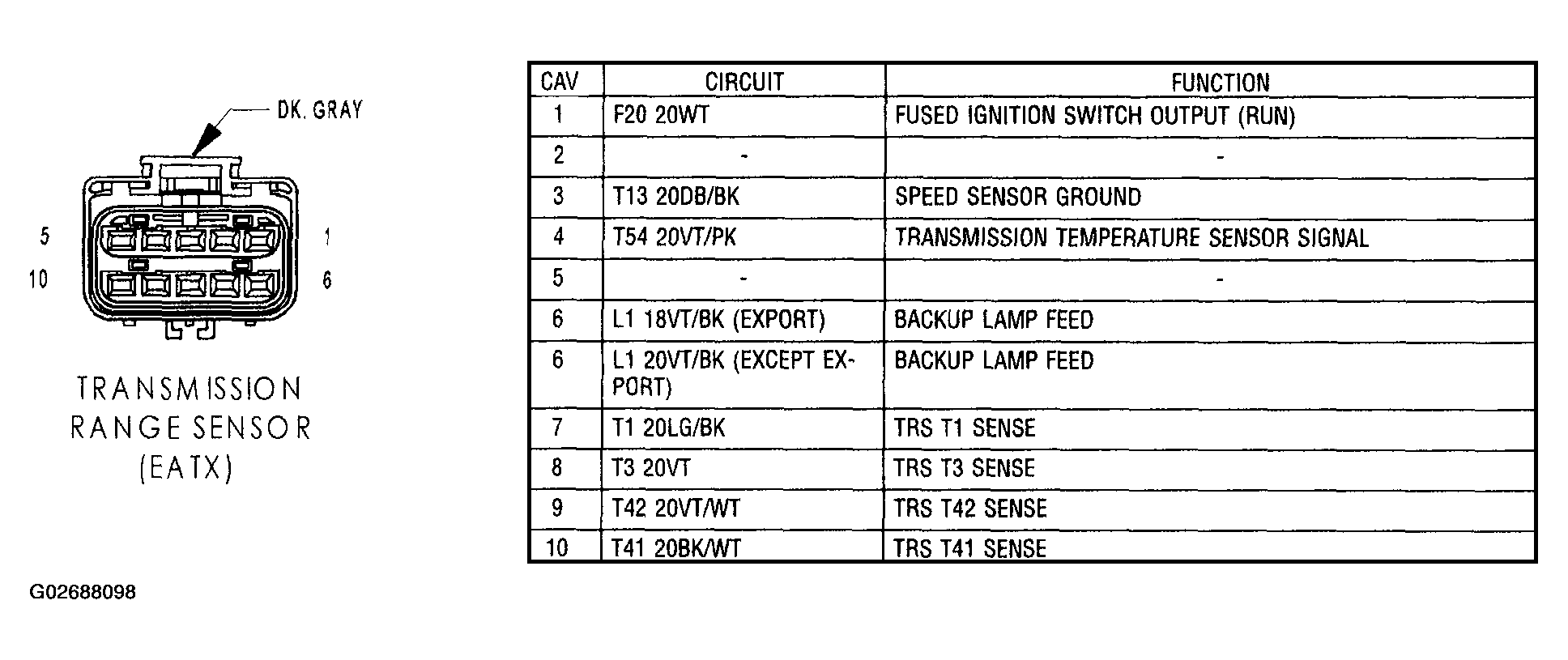

Fig 16: Identifying Transmission Range Sensor (EATX) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

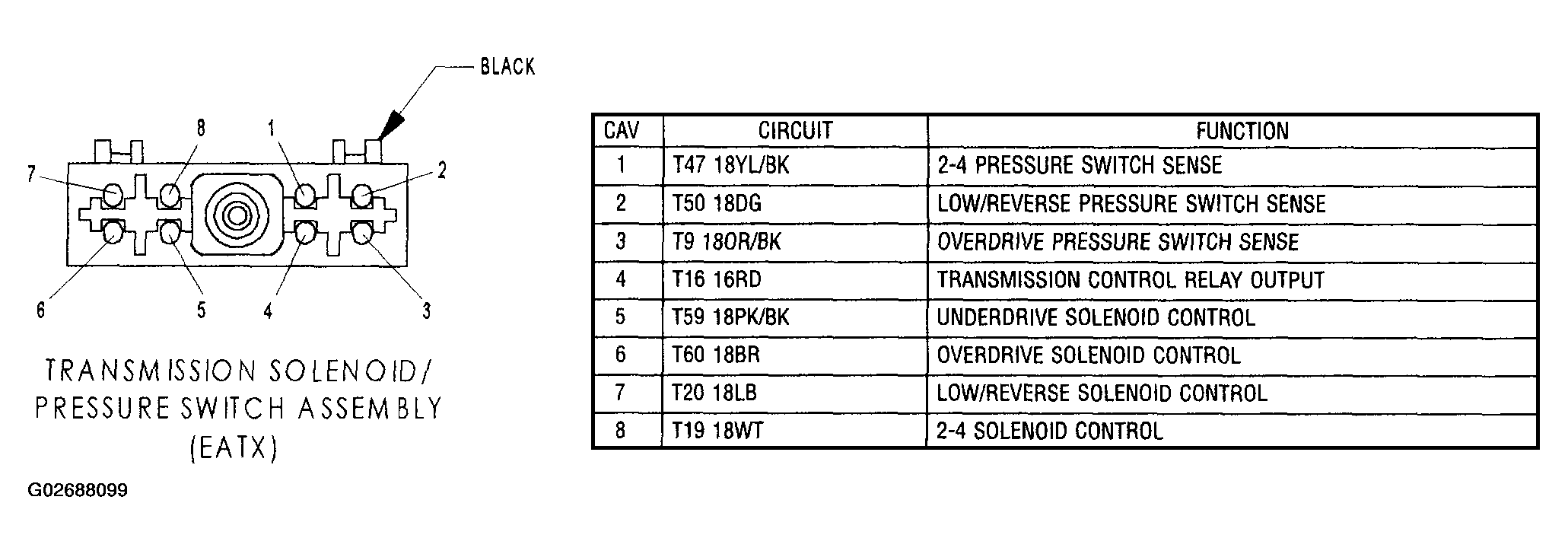

Fig 17: Identifying Transmission Solenoid/Pressure Switch Assembly (EATX) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.
