Planetary GEARTRAIN: Description

The planetary geartrain is located between the input clutch assembly and the rear of the transaxle case. The planetary geartrain consists of two sun gears, two planetary carriers, two annulus (ring) gears, and one output shaft (Fig 1).

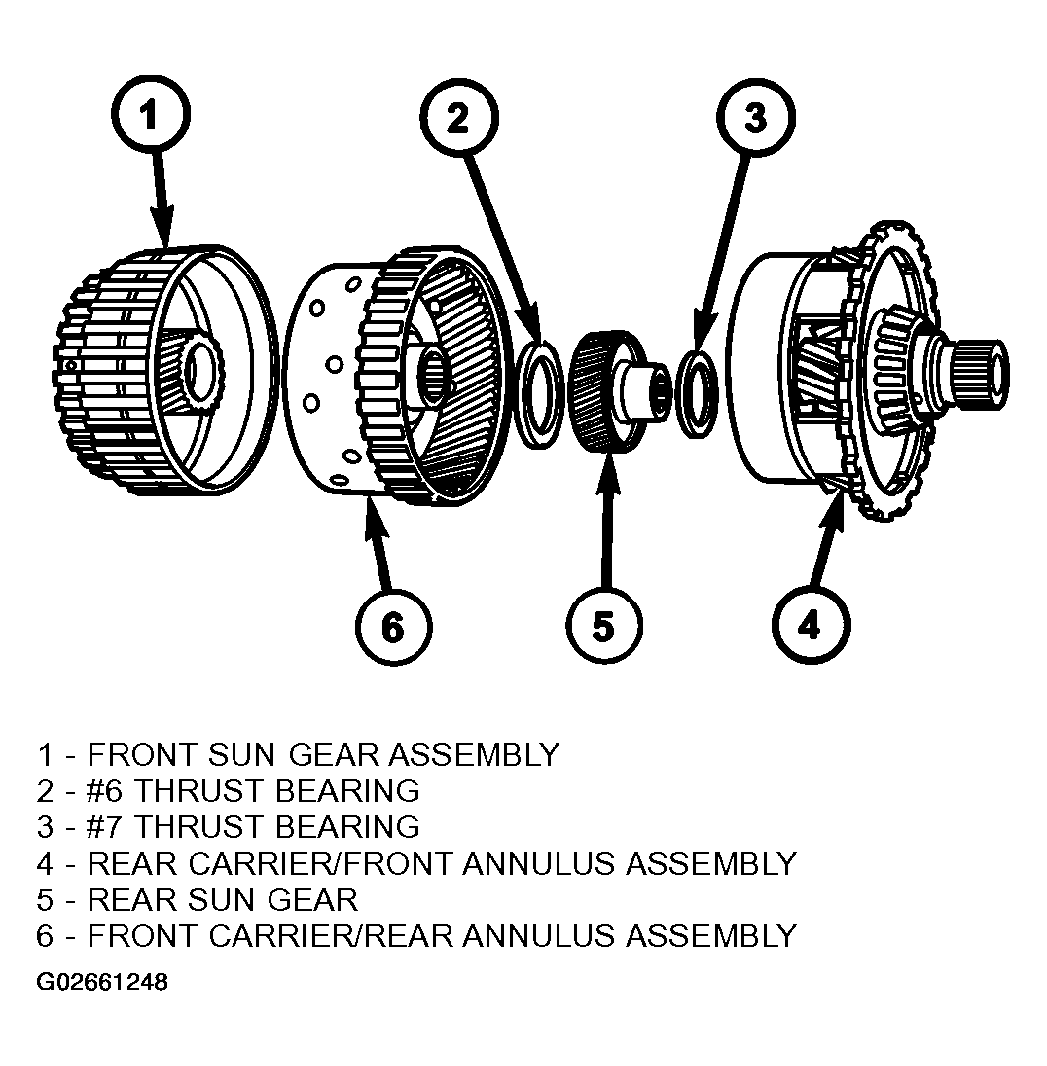

Fig 1: Exploded View Of Planetary Geartrain
G02661248Courtesy of DAIMLERCHRYSLER CORP.
