A/C Heater Manual Temperature Control Control Connector End View (C2)

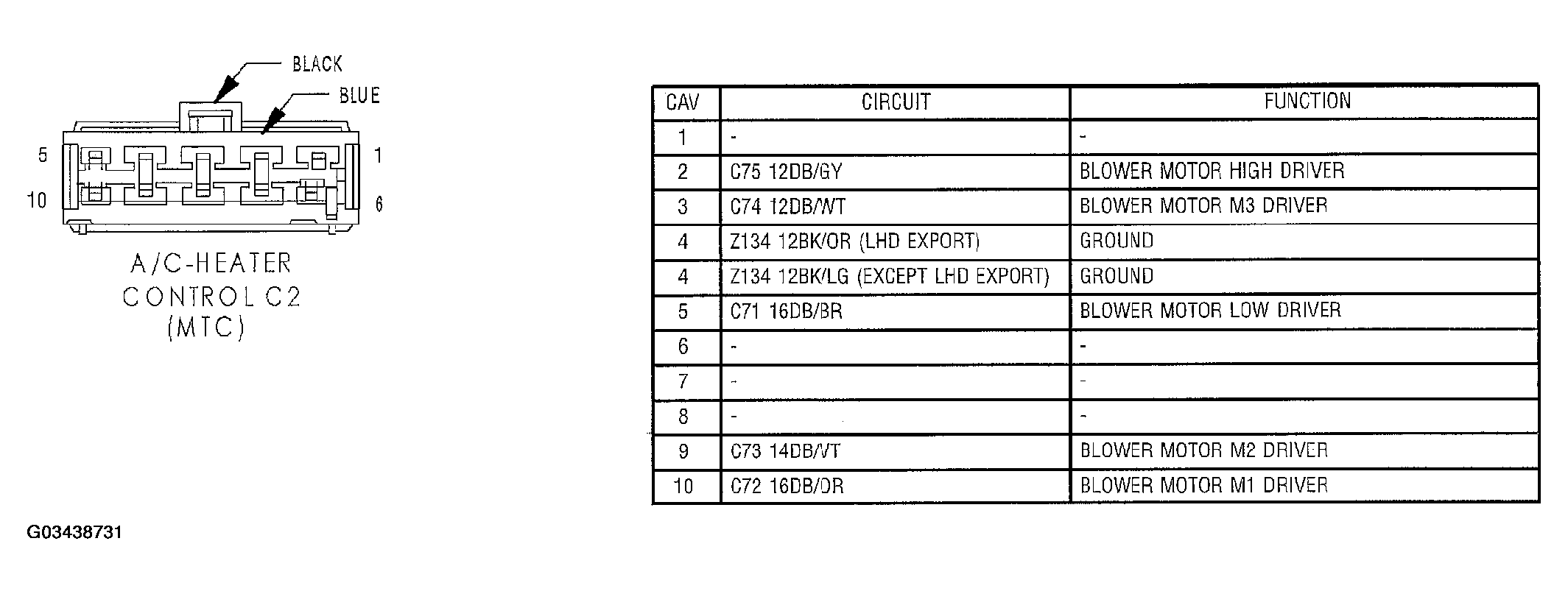

Fig 1: A/C Heater Manual Temperature Control Control Connector End View (C2)

G03438731

Courtesy of DAIMLERCHRYSLER CORP.
