Right Power Sliding Door Control Module Connector End View (C2)

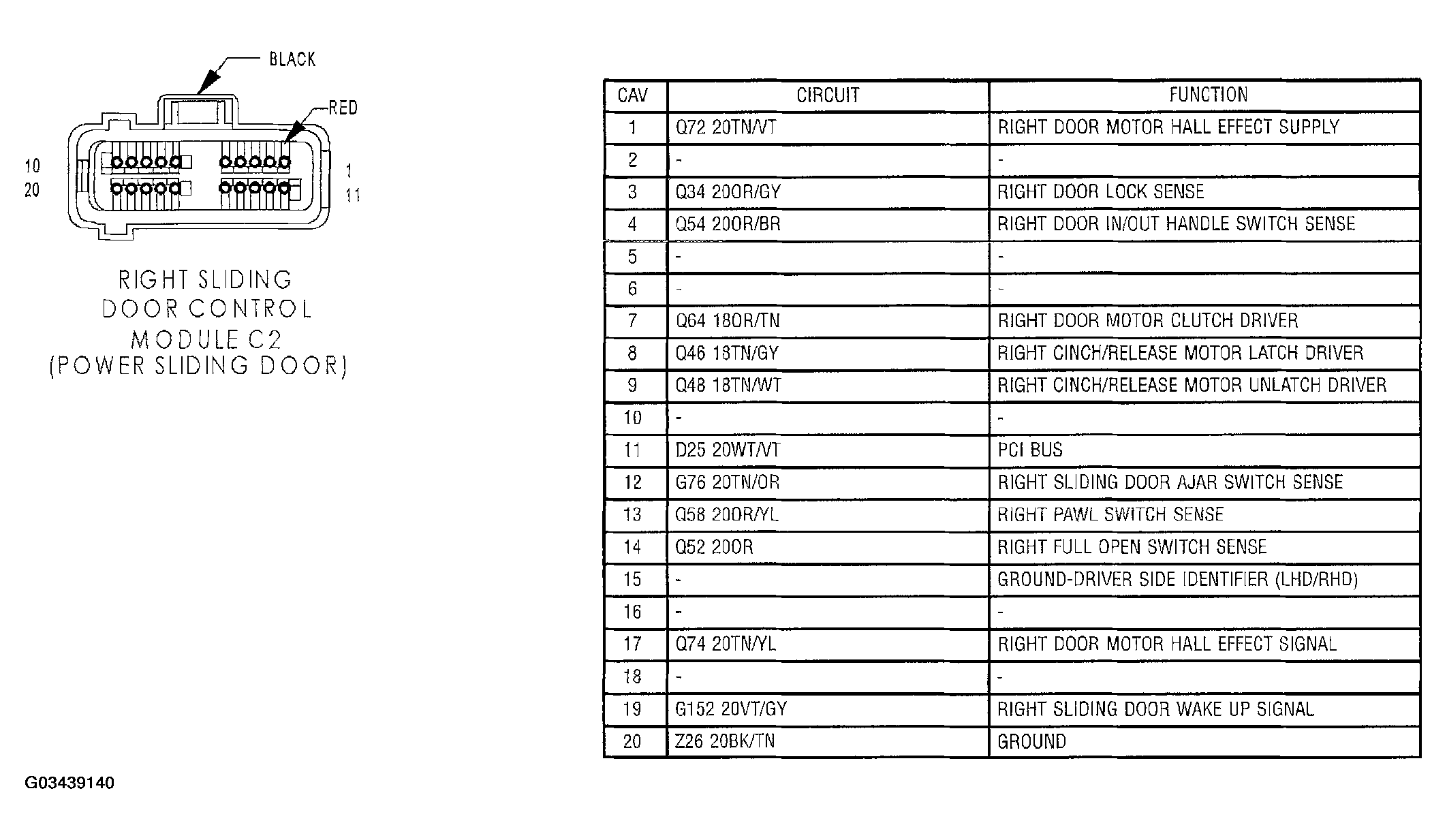

Fig 1: Right Power Sliding Door Control Module Connector End View (C2)
G03439140Courtesy of DAIMLERCHRYSLER CORP.
