Memory Seat/Mirror Module Connector End View (C3)

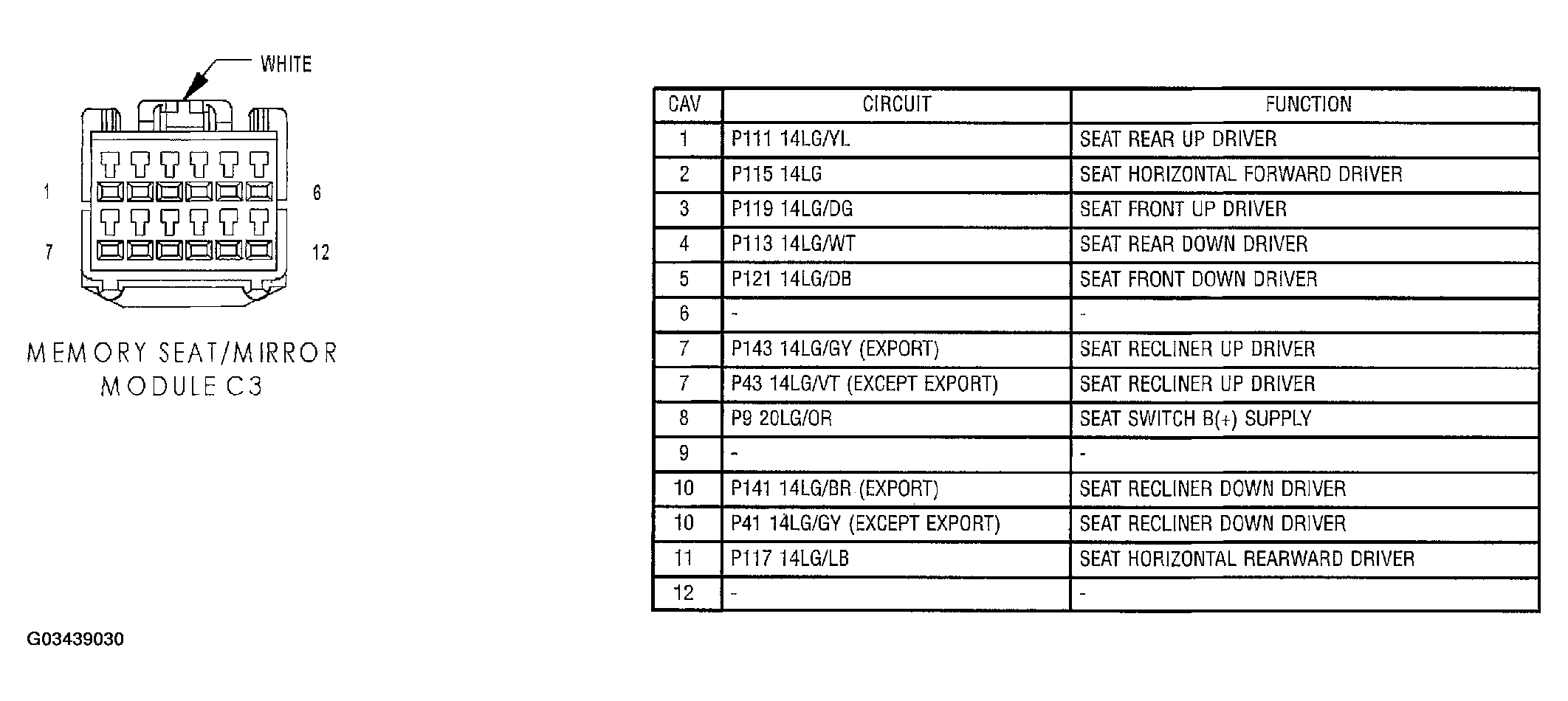

Fig 1: Memory Seat/Mirror Module Connector End View (C3)

G03439030

Courtesy of DAIMLERCHRYSLER CORP.
