Left Sliding Door Control Module Connector End View (C1)

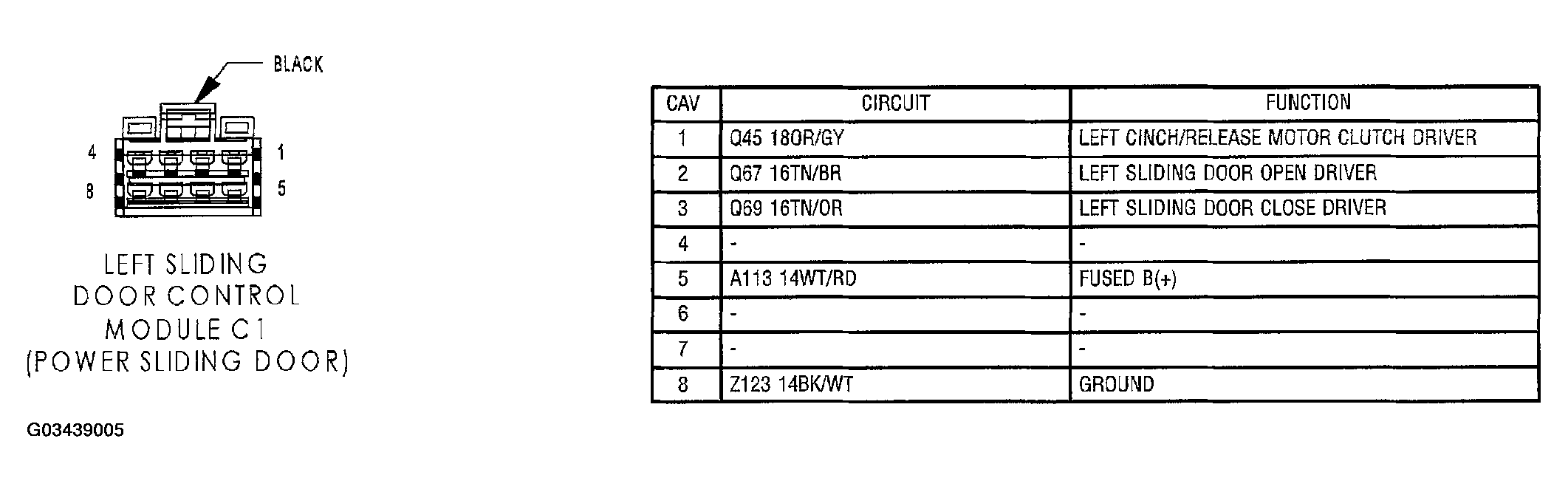

Fig 1: Left Sliding Door Control Module Connector End View (C1)

G03439005

Courtesy of DAIMLERCHRYSLER CORP.
