Front Blower Module (Automatic Temperature Control) Connector End View (C1)

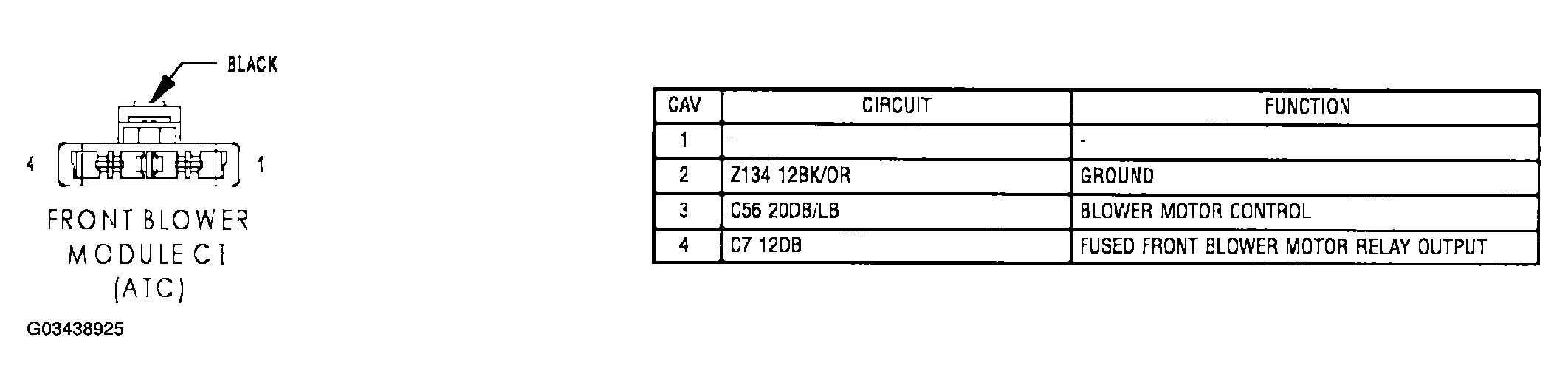

Fig 1: Front Blower Module (Automatic Temperature Control) Connector End View (C1)
G03438925Courtesy of DAIMLERCHRYSLER CORP.
