Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Under center of dash, on transmission tunnel. See Figure. |
| Central Timer Module | Behind left side of dash. |
| Controller Anti-Lock Brake | On top of hydraulic control unit, at left rear of engine compartment. |
| Driver Door Module | Inside left front door. |
| Fuel Pump Module | On top of fuel tank. |
| Heated Seat Module | Between front seats. |

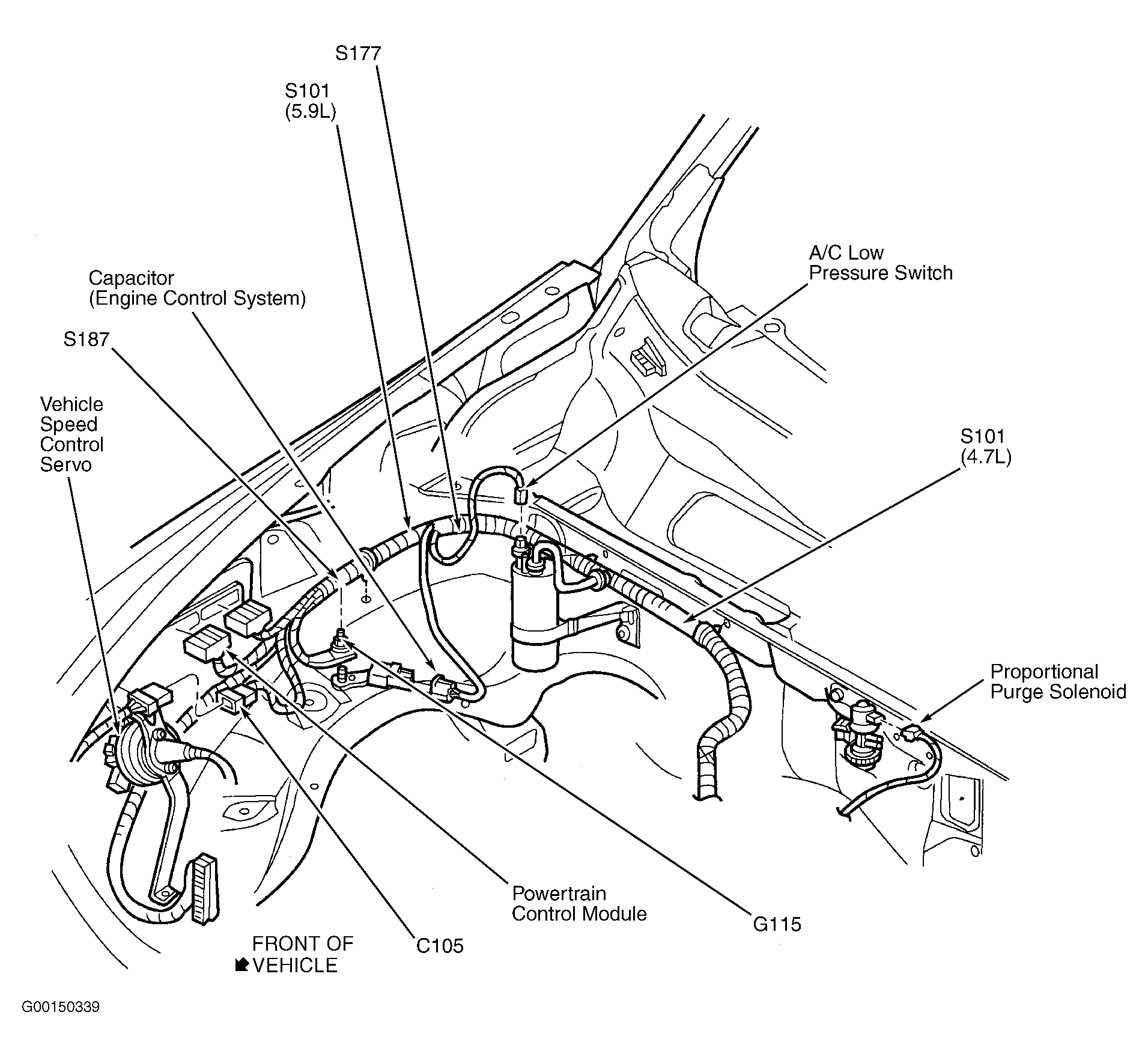

| Powertrain Control Module | On right front inner fender, forward of washer fluid reservoir. See Figure. |

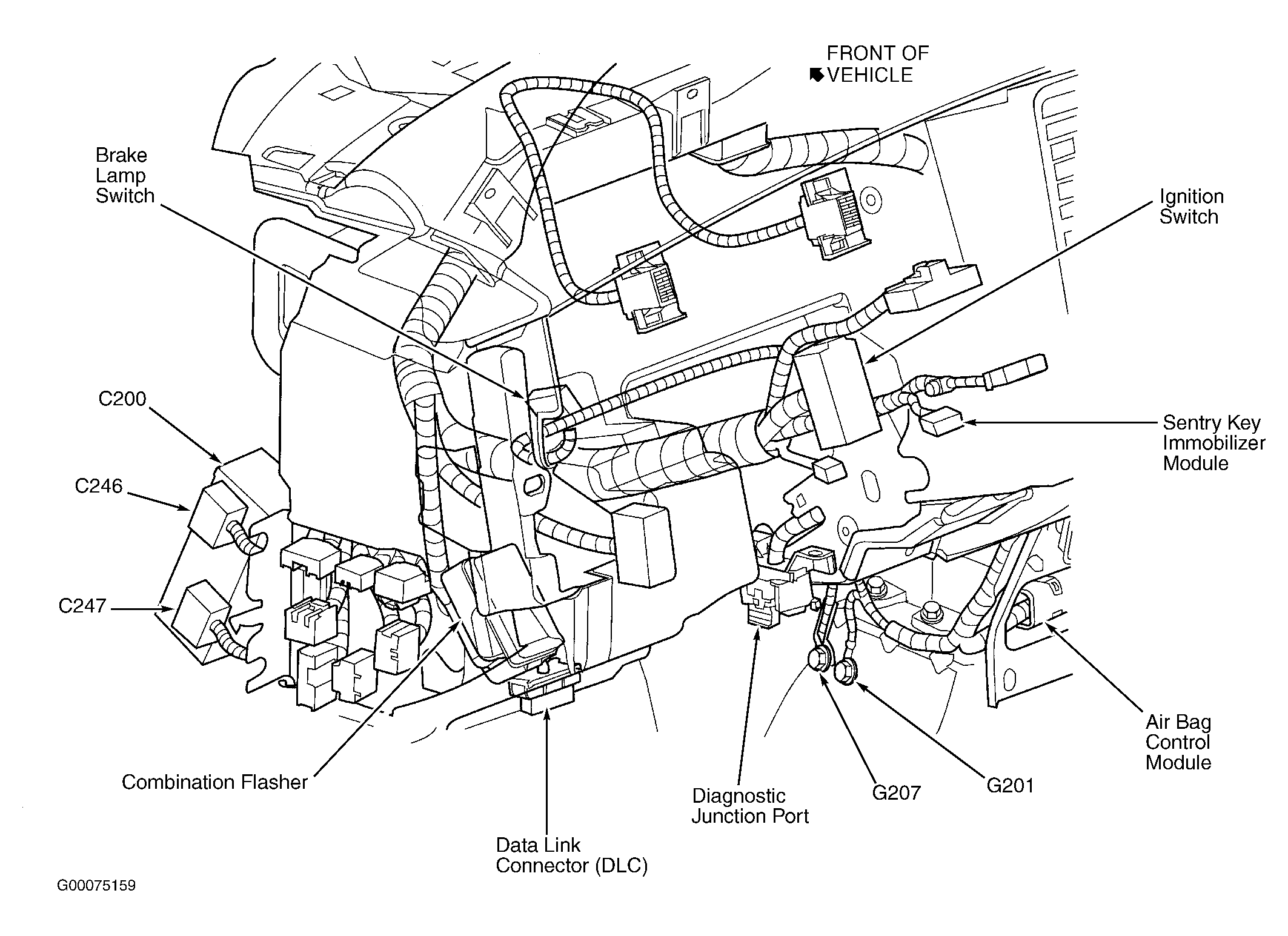

| Sentry Key Immobilizer Module | On steering column. See Figure. |
| Side Impact Air Bag Control Module (Left/Right) | At base of respective "B" pillar, behind trim. |
| Transfer Case Control Module | Right side of steering column. |
