Engine 5.9L: Specifications: Torque
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||||
|---|---|---|---|---|---|---|---|---|
| Axle Bracket-To-Bellhousing Bolt (4WD) | N/A | |||||||
| Axle Shaft Nut (4WD) | 180 (244) | |||||||
| Axle Shaft-To-Differential Flange Bolt (4WD) | 80 (108) | |||||||
| Axle-To-Insulator Bolt (4WD) | 75 (102) | |||||||
| Camshaft Sprocket Bolt | 50 (68) | |||||||
| Camshaft Thrust Plate Bolt | 18 (24) | |||||||
| Clutch Housing-To-Cylinder Block Bolt | ||||||||
| Connecting Rod Bolt | 45 (61) | |||||||
| Crankshaft Pulley Bolt | 18 (24) | |||||||

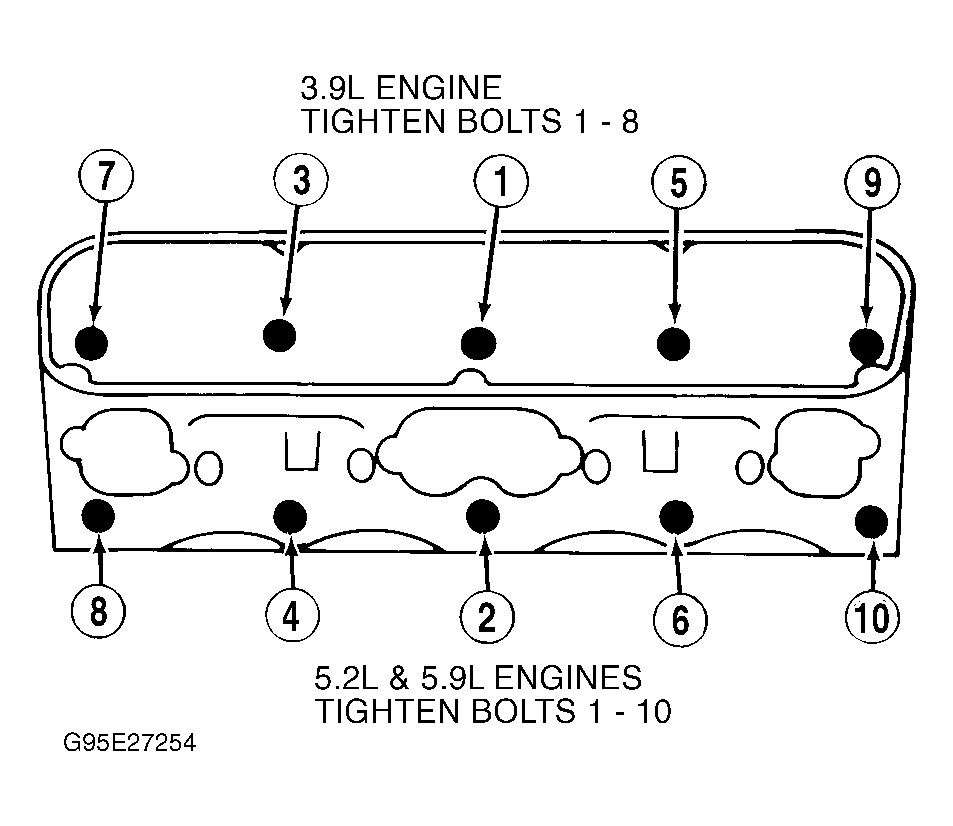

| Cylinder Head Bolt (1) | ||||||||
| Step 1 | 50 (68) | |||||||
| Step 2 | 105 (142) | |||||||
| Step 3 | 105 (142) | |||||||
| Differential Pinion Nose Bracket-To-Adapter Bolt 4WD | N/A | |||||||
| Differential Pinion Nose Bracket-To-Bellhousing Bolt 4WD | N/A | |||||||
| Engine Mount Bracket-To-Frame Rail Bolt 2WD | 30 (41) | |||||||
| Engine Mount Through-Bolt | ||||||||
| 2WD | 50 (68) | |||||||
| 4WD | 75 (102) | |||||||
| Engine Mount-To-Cylinder Block Bolt | 30 (41) | |||||||
| Exhaust Manifold Bolt & Nut | 18 (24) | |||||||
| Flywheel/Flexplate-To-Crankshaft Bolt | 55 (75) | |||||||
| Front Cover Bolt | 30 (41) | |||||||
| Heat Shield Bolts | N/A | |||||||
| Main Bearing Cap Bolt | 85 (115) | |||||||
| Oil Drain Plug | 25 (34) | |||||||
| Oil Pan Bolt | 18 (24) | |||||||
| Oil Pump Bolt | 30 (41) | |||||||
| Rocker Arm Bolt | 21 (28) | |||||||
| Shift Motor Bolt 4WD | 12-18 (16-24) | |||||||
| Spark Plug | 30 (41) | |||||||
| Starter Bolts | 50 (68) | |||||||
| Throttle Body Bolt | 17 (23) | |||||||
| Transfer Case Yoke Bolt 4WD | N/A | |||||||
| Vibration Damper Bolt | 135 (183) | |||||||
| Water Pump Bolt | 30 (41) | |||||||
| INCH Lbs. (N.m) | ||||||||

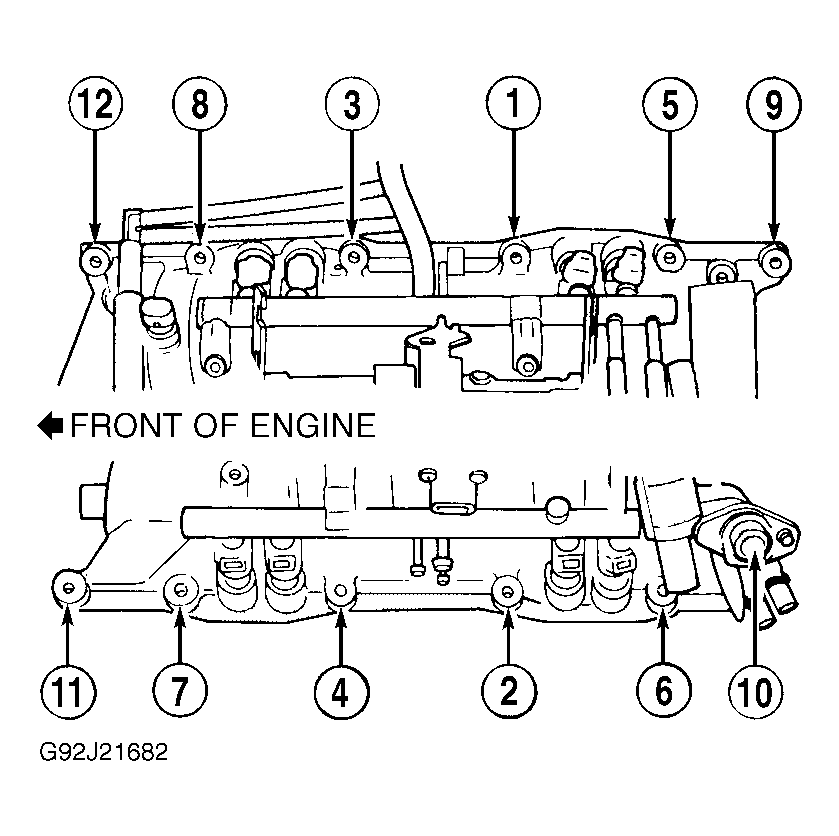

| Intake Manifold Bolt (2) | ||||||||
| Step 1 (Bolts No. 1-4) | 72 (8) | |||||||
| Step 2 (Bolts No. 5-12) | 72 (8) | |||||||
| Step 3 (All Bolts) | 72 (8) | |||||||
| Step 4 (All Bolts) | 144 (16) | |||||||
| Step 5 (All Bolts) | 144 (16) | |||||||

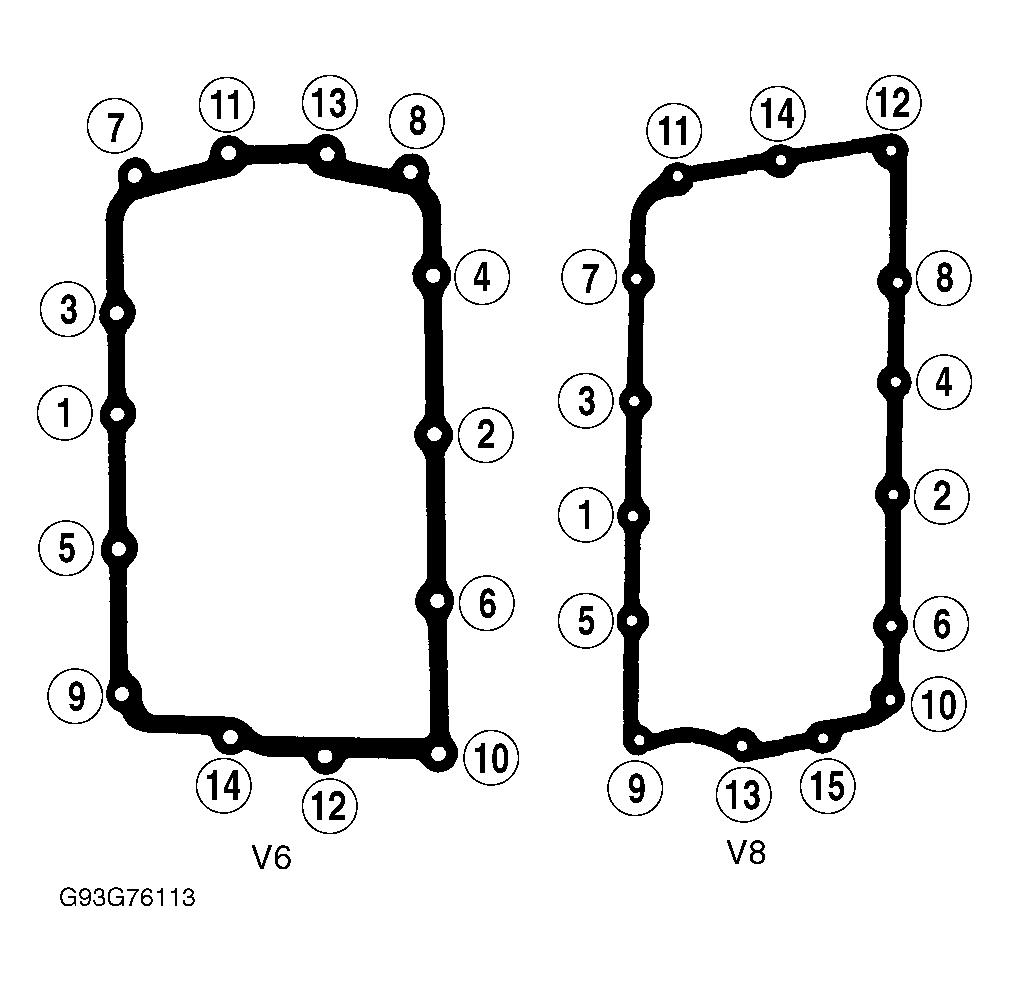

| Intake Manifold Plenum Pan Bolt (3) | ||||||||
| Step 1 | 24 (2.7) | |||||||
| Step 2 | 48 (5.4) | |||||||
| Step 3 | 84 (9.5) | |||||||
| Step 4 | 84 (9.5) | |||||||
| Oil Pump Cover Bolt | 97 (11) | |||||||
| Valve Cover Bolts | 97 (11) | |||||||
|
||||||||
