Washer Fluid Level Switch Connector End View

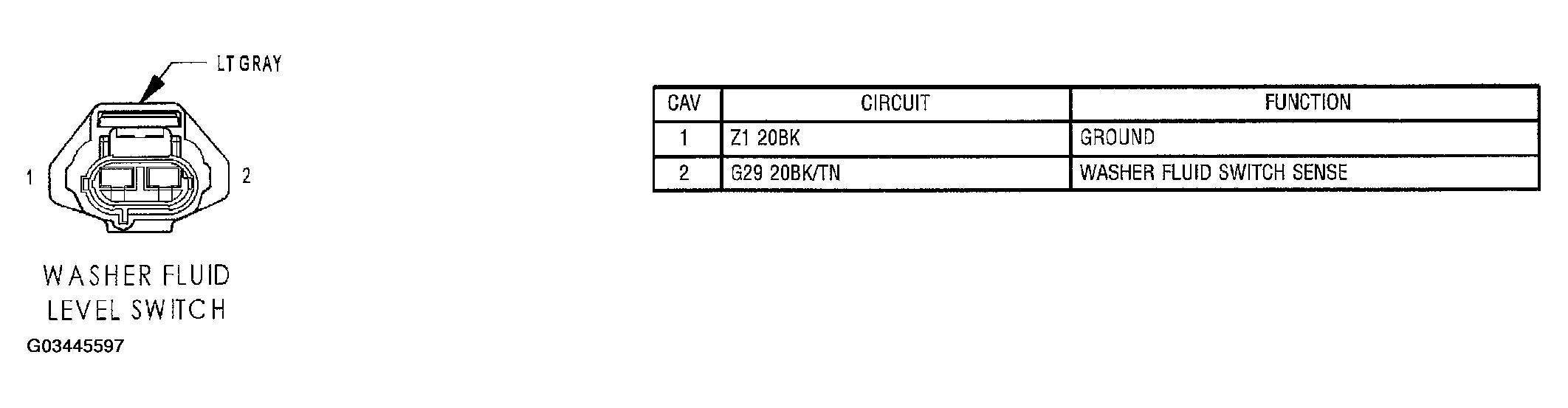

Fig 1: Washer Fluid Level Switch Connector End View

G03445597

Courtesy of DAIMLERCHRYSLER CORP.
