Driver Power Mirror Connector End View

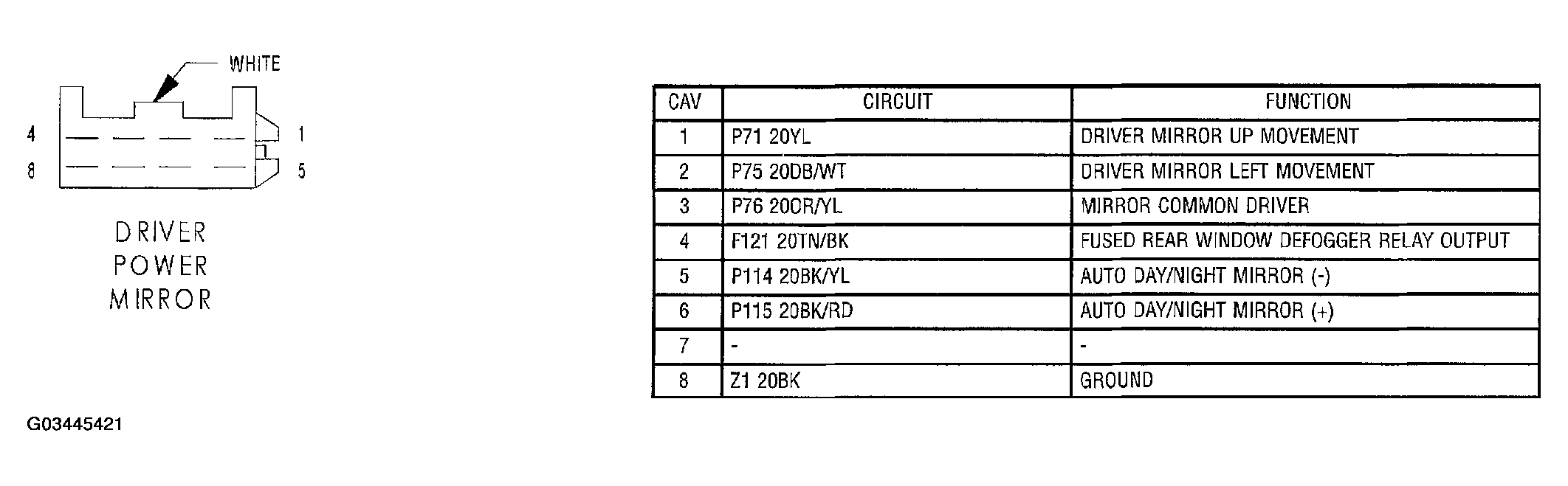

Fig 1: Driver Power Mirror Connector End View

G03445421

Courtesy of DAIMLERCHRYSLER CORP.
