Compass / Mini-Trip Computer: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the overhead console from the head-liner (Refer to OVERHEAD CONSOLE  ).
  3. Remove the screws that secure the compass mini-trip computer module to the overhead console housing (Fig 1 ).

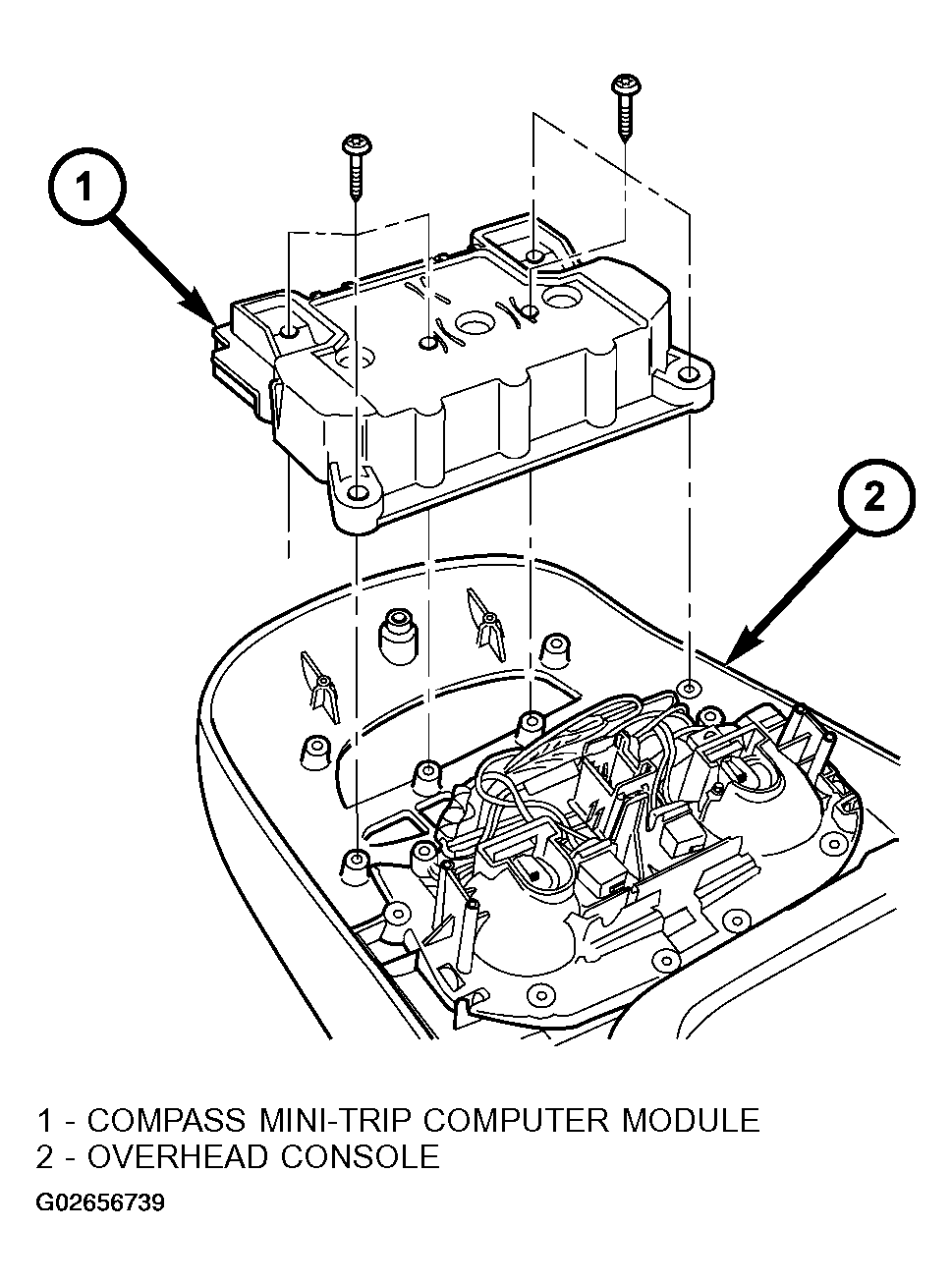

    Fig 1: Removing Compass Mini-Trip Computer Module From Overhead Console Housing
    G02656739Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the overhead console wire harness connector from the compass mini-trip computer module connector receptacle.
  5. Remove the compass mini-trip computer module from the overhead console housing.
